Ibisobanuro ku bicuruzwa

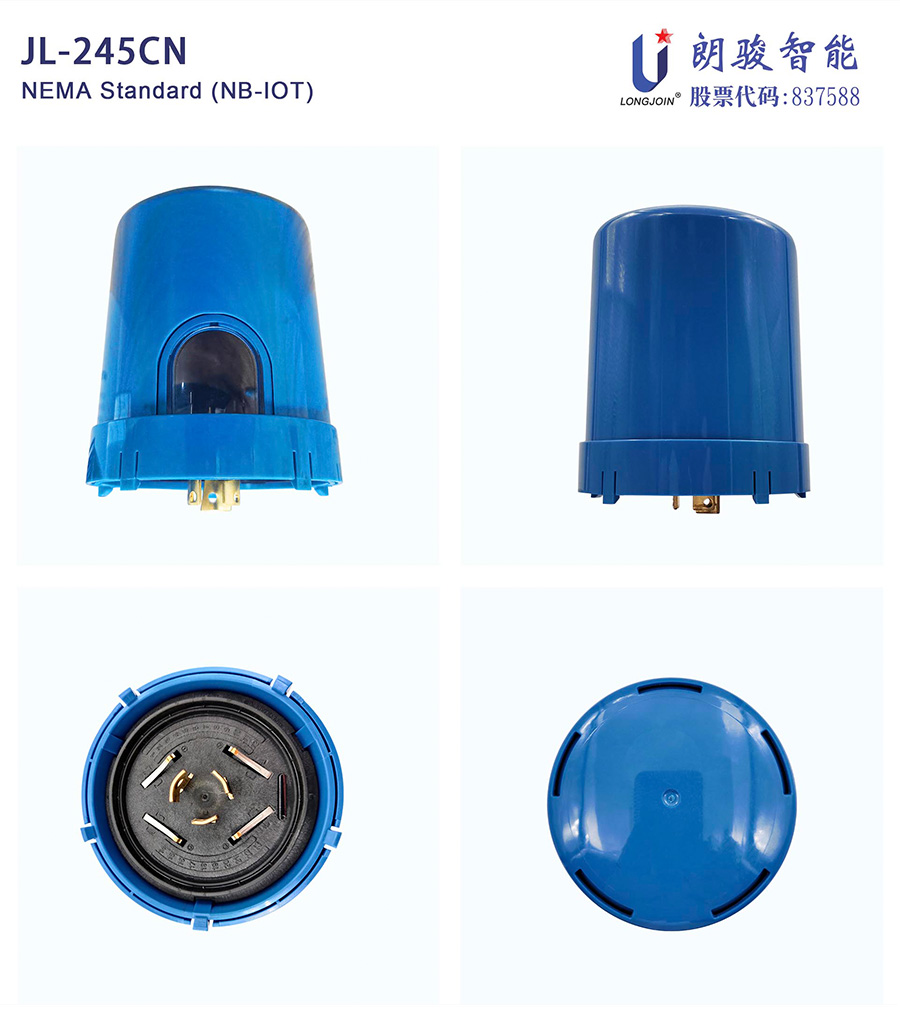

JL-245CN twist-lock umelink Photocell switch irakoreshwa mugucunga ibicu no kugenzura byikora.Irashobora gukoreshwa mumihanda ya komine, kumurika parike, kumurika ibibanza, nibindi.
Igicuruzwa gifite icyuma cyubatswe muri NB-IoT Internet of Things module itumanaho, gishobora kugenzurwa kure binyuze muri sisitemu yo gucunga amatara ya UM-9900.
Ibiranga ibicuruzwa
· ANSI C136.41 Twist-Ifunga
· 0-10V / 1-10V gucogora
· Icyiciro cyo kurinda icyiciro: 6KV / 3KA uburyo butandukanye
· Guhitamo inshuro ebyiri kurinda igiceri, ubuzima burebure
· Umuvuduko mwinshi
· Gukomatanya IP67
· IR-muyungurura Phototransistor
Ibicuruzwa
| Ingingo | JL-245CG | |
| Umuvuduko ukabije | 120-277VAC | |
| Umuvuduko ukoreshwa Urwego | 105-305VAC | |
| Ikigereranyo cya Frequency | 50 / 60Hz | |
| Ibisohoka | 0-10VDC | |
| Itumanaho ridafite insinga (hejuru) | NB-IOT | |
| Urwego rwo Kwakira | 350 ~ 1100nm ngth Uburebure bwumurongo wa 590nm | |
| Ikigereranyo | 1000W Tungsten, 1000VA Ballast, 8A @ 120VAC / 5A @ 208-277VAC e-Ballast | |
| Uburyo bwo kunanirwa | Kunanirwa | |
| Igikonoshwa | PC | |
| Urwego rwo Kurinda | 6KV / 3KA uburyo butandukanye | |
| Urwego rwa IP | IP67 | |
| Igenamiterere ry'uruganda | Igenzura rya kure + Uburyo bwo guhuza n'imiterere | |
| Ibipimo | IEC61000-4-5; IEC61000-4-2; IEC61000-4-3; IEC61000-4-6; GB / T 17743-2017; IEC61000-4-4; IEC61000-4-11; IEC61000-3-2; GB / T2423.10-2008; UL94-V0; | |
| Icyemezo | UL, CE, RoHS | |
Amabwiriza yo Kwubaka
Imigaragarire yibicuruzwa ubwabyo byabaye amakosa-yakozwe, gusa komeza fotokontrol mu buryo butaziguye / bizunguruka, nkuko bigaragara ku gishushanyo cyerekana amasaha nyuma yo gushiramo.
* Bishyushye
* Abakoresha barashobora kwinjiza amakuru yindangamuntu ya fotokontrol muri sisitemu yo gucunga neza ubwenge binyuze muri interineti ya WEB cyangwa mugusuzuma kode ya QR hamwe na konte yihariye ya WeChat “UM9900 Smart Light Pole”.
Ikizamini Cyambere
* Iyo ushyizwe kunshuro yambere, mubisanzwe bifata amasegonda menshi kugirango optique igenzure.
* Kugerageza "gufungura" kumanywa, funga idirishya ryumva urumuri hamwe na kaseti yumukara cyangwa ibintu bidasobanutse.
* Ntukabipfukishe intoki zawe, kuko urumuri runyura mu ntoki zawe rushobora kuba ruhagije kugirango uzimye igikoresho cyo kugenzura urumuri.
* Ikizamini cyo kugenzura urumuri gifata iminota 2.

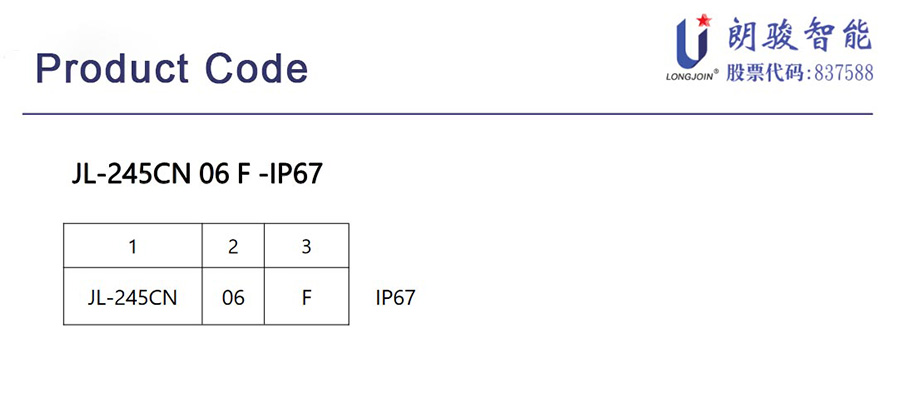

1: NB-loT module, ikarita ya SIM yatanzwe
2: 06 = 6KV kurinda inkuba;
3: Ibara
F = Ubururu; H = Umukara
K = Icyatsi
Igihe cyo kohereza: Ukuboza-25-2023
