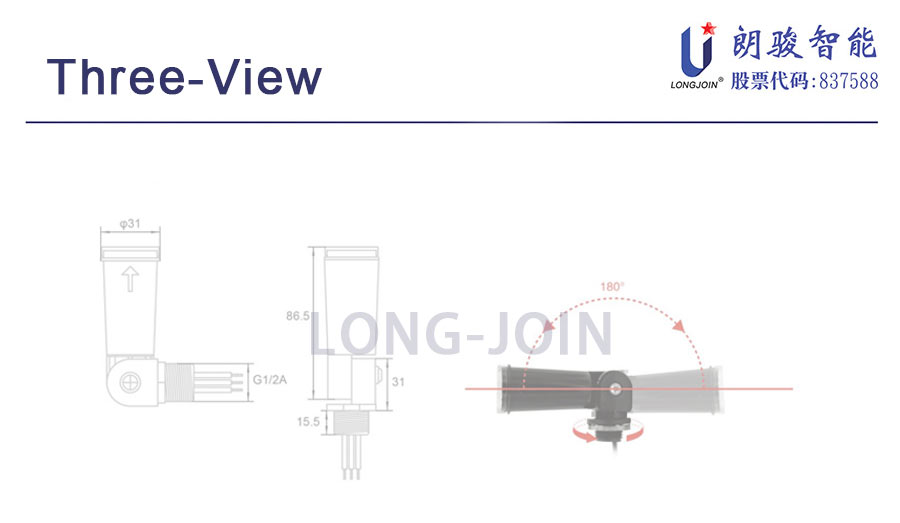

JL-424C is JL-104 update version now, and this type light controller with more sensitivity, and it is sensing contribute to built in an Phototransistor Sensor. moreover,JL-424C stem type controller with Swivel parts, and you can adjust direction turn flip this at horizon 180. urther, JL-424 provides surge protection feature up to 235J/5000A.
| Number | JL-424C |
| Rated Voltage | 120-277VAC |
| Applicable Voltage Range |
105-305VAC |
| Rated Frequency | 50/60Hz |
| Rated Loading | 1000W Tungsten, 1200VA Ballast@120VAC 8A e- Ballast@120V |
| Power Consumption | 0.5W Max |
| Operate Levels | 40°C ~ +70°C |
| Wire Gauge | AWG #16,AWM 1015 |
| Certificate | UL, CE,RoHS |

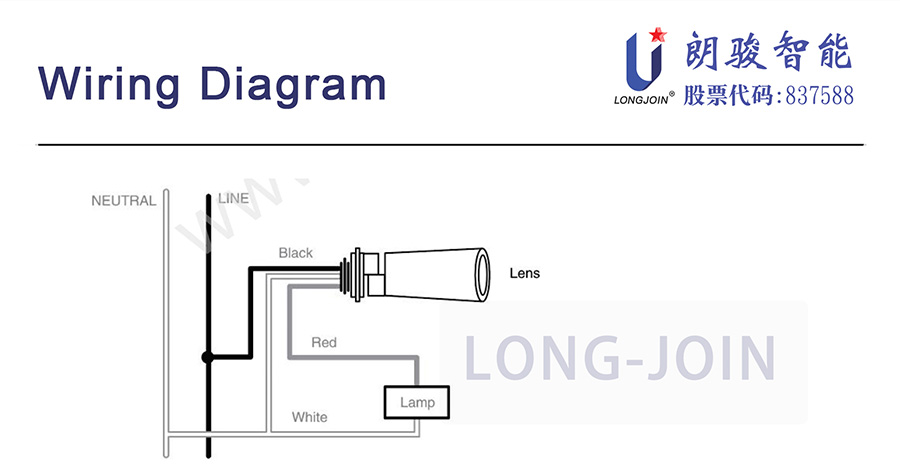

Disconnect power, remove junction box cover, place the photocontrol through knockout hole and fasten with locknut. Wire according to the diagram in below.
Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night.

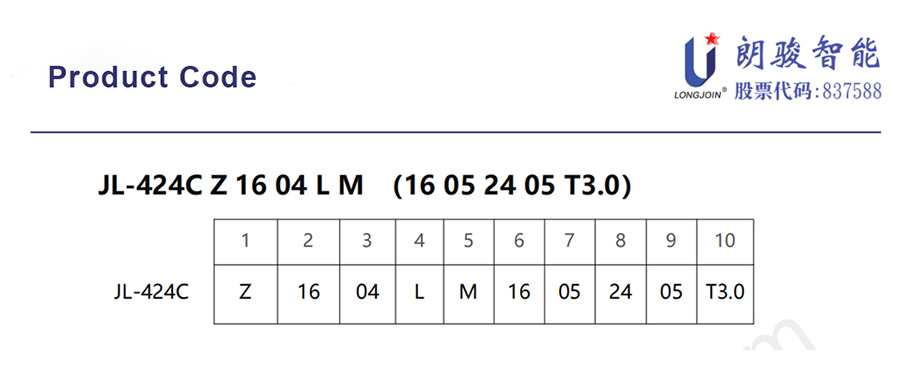

1: Z= Zero cross（option）
2: Lead Rating
16=16 AWG, 105ºC rated
16G=16 AWG 150 ºC rated
3: Lead Length
XX, in inches (04 min.)

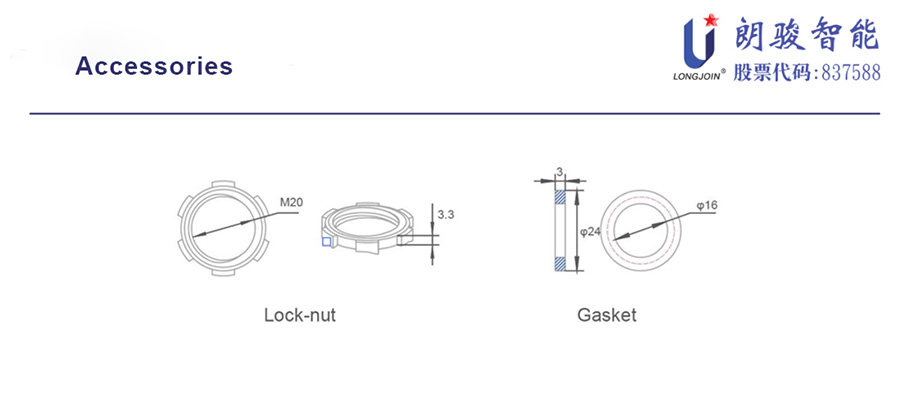

4: L = Double lock-nut
null= single lock-nut
