NEMA Standard Connector

All the JL-240 series photocontrol receptacles were designed for the lanterns those intended to have an ANSI C136.10-2006 receptacle to fit a twist-lock photocontrol, Also Jl-200 series photocell receptacle were designed Compliant Standard ANSI C136.10-1996.

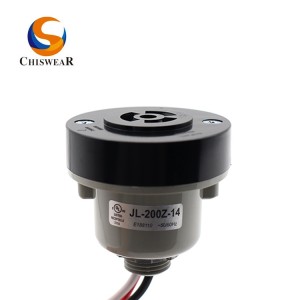

NEMA 3 PIN JL-200Z Photocontrol Receptacle Socket

1. Product Model: JL-200Z
2. Rated Voltage: 0-480VAC
3. Material: phenolic (Bakelite)
4. Leads Gauge: #14, #18,#16
5. Rear Cover Material: PC
6. Compliant Standard: ANSI C136.41-2006, CE, ROHS, UL

inquiry detail
ANSI C136.41 7-receptacle and UL Listed Photocontrol Receptacle JL-240Z-14

1. Product Model: JL-240Z
2. Rated Voltage: 0-480VAC
3. Material: PBT and Add UV Stabilizer
4. Leads Gauge: #14, #16,#18
5. Rear Cover Material: PC
6. Compliant Standard: ANSI C136.41-2006, CE, ROHS, UL

inquiry detail
NEMA Standard 7 PIN Locking Type Photocontrol Dimming Signal Output Receptacle Max 480V

1. Product Model: JL-240FXA
2. Rated Voltage: 0-480VAC
3. Flammability Rating: UL94-0
4. IP Rating: IP66
5. Material: PBT Cover and Add UV Stabilizer
6. Compliant Standard: ANSI C136.41, CE, ROHS, UL

inquiry detail
NEMA 7 PIN Twist Lock and Rotatable Photocontrol Receptacle JL-260D2

1. Product Model: JL-260D2
2. Rated Voltage: 0-480VAC
3. Flammability Rating: UL94-0
4. Material: PBT Cover and Add UV Stabilizer
5. Compliant Standard: ANSI C136.41, CE, ROHS, UL

inquiry detail
Twist lock 3 PIN Photocontrol Receptacle JL-200X

1. Product Model: JL-200X
2. Rated Voltage: 0-480 VAC
3. Material: Phenolic socket
4. Contact Material: Copper nickel plated
5. Compliant Standard: CE, ROHS, UL

inquiry detail
Exterior Light Luminaires Rotate Twist Lock 3 PIN Photocell Receptacle JL-230

1. Product Model: JL-230
2. Rated Voltage: 0-480VAC
3. Material Socket: Phenolic Socket
4. Wire Gauge: #14, #16
5. Compliant Standard: CE, ROHS, UL

inquiry detail
