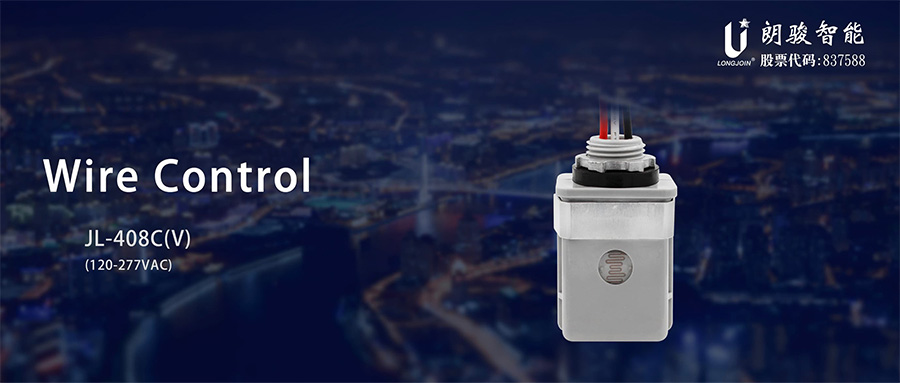

Here Wire Controller electronic type JL-408C , and manual part can provides a swivel to allow accurate orientation feature(JL-408CV , V -option swivel shank). especially in function you can delay time of turn-on or turn off by up-down sliding shield bar. Eventually, you feel free choose where place in dim public lighting. furthermore, light controller work voltage 120-277VAC, and compare to JL118A voltage 120v, so this controller application is used in different line voltage device.
| Number | JL-408C | JL-408CV | |
| Rated Voltage | 120-277VAC | ||
| Applicable Voltage Range |
105-305VAC | ||
| Rated Frequency | 50/60Hz | ||
| Rated Loading | 500W Tungsten, 850VA Ballast 5A e-Ballas | ||
| Power Consumption | 1.8W@120VA | ||
| Operate Levels | 0~20Lx Turn-On / 30~80Lx Turn-Of | ||
| Fail Mode | Fail off | ||
| Lead Wire | AWG #18,105℃ 4″ mi |
||

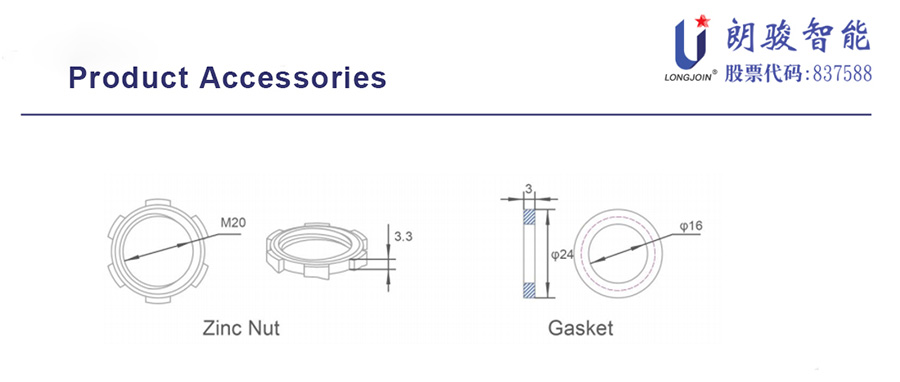

Disconnect power, place screw thread of the SWITCH in knockout hole and fasten with rubber gasket and Zinc alloy lock-nut.

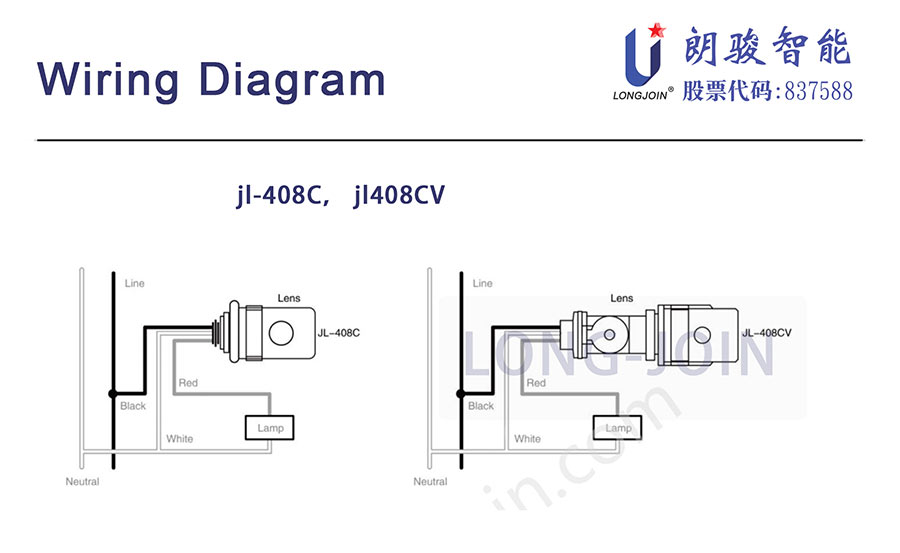

Wire according to the diagram：
Slide the shading strip to have preferred On/Off levels, if necessary.
Do not install the switch with the Photocell facing artificial or reflected light. This will cause the unit to cycle on and off at night.

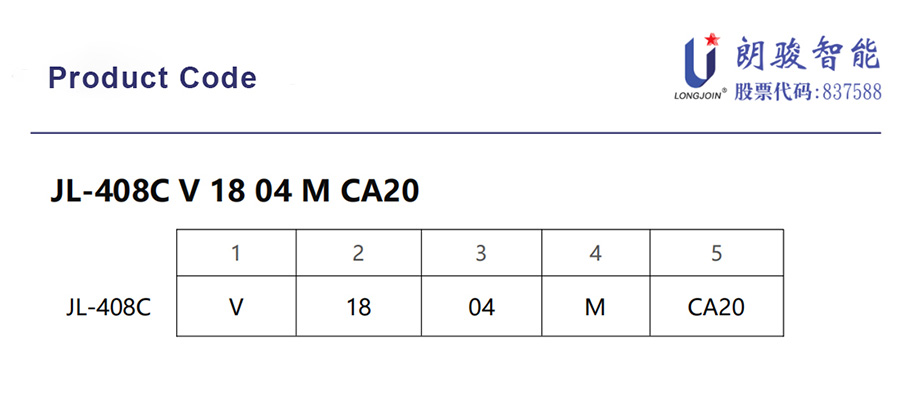

1: V(option) = shank
2: Lead Rating 18=18 AWG, 105ºC rated 18G=18 AWG 150 ºC rated
3: Lead Length XX, in inches (04 min.)
