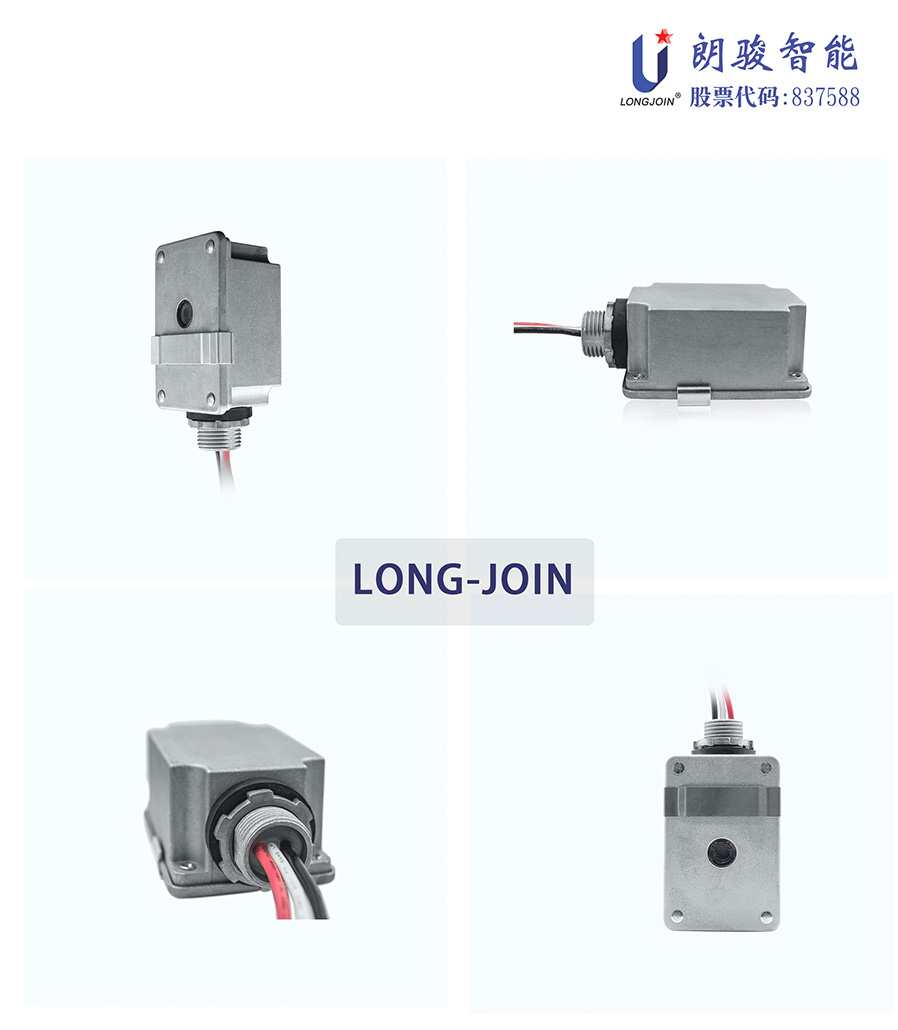

Here are different voltage support type JL-116X series stem photocell. one of some light control is suit for commercial lighting pool pump management system, garden lighting auto on-off work,Warehouses and manufacturing, Coastal path and walkway lighting, stem photocell for dock light. don’t wrong, JL-116X type work capability to loading power 2000w, so it support hard pressure work environment. while it cover is made from die-cast enclosure of aluminum, which surface has finishing anti-ox, and higher corrosion resistance than jl-106 photocell.
Specification
| Model No. | JL-116A（*V） | JL-116B（*V） | JL-116C（*V） | JL-116D（*V） | JL-116EE（*V） | JL-116FE（*V） |
| Rated Voltage | 120VAC | 220-240VAC | 208-277V AC | 277VAC | 347 VAC | 480 VAC |
| Rated Frequency | 50/60Hz | |||||
| Rated Loading | 2000W Tungsten、2000VA Ballast | |||||
| Power Consumption | 1.5W Max. | |||||
| Operate Levels | 10~20Lx Turn-On / 30~60Lx Turn-Off | |||||
| Ambient Temperature | -40℃ ~ +70℃ | |||||
| Related Humidity | 96% | |||||
| Fail Mode | Fail-On | |||||
| Lead Wire | AWG#16,AWM13324”min | |||||
| Certifications | UL,CE,RoHS | |||||

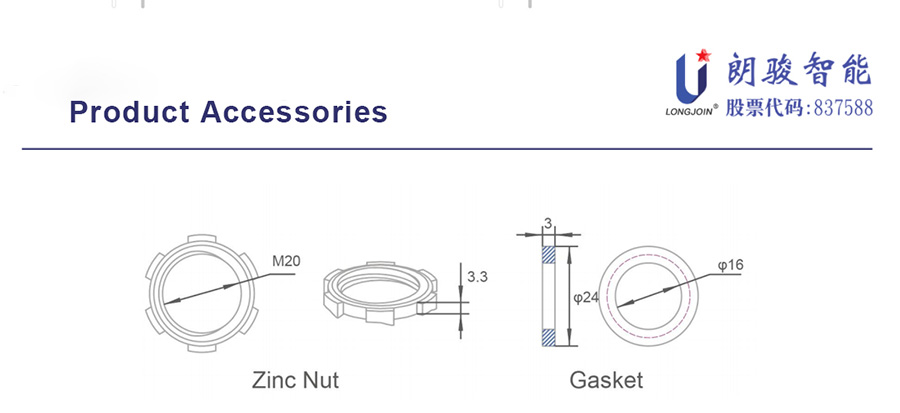

Disconnect power, place screw thread of the SWITCH in knockout hole and fasten with rubber gasket and Zinc alloy lock-nut.
Do not install the switch with the Photocell facing artificial or reflected light. This will cause the unit to cycle on and off at night.

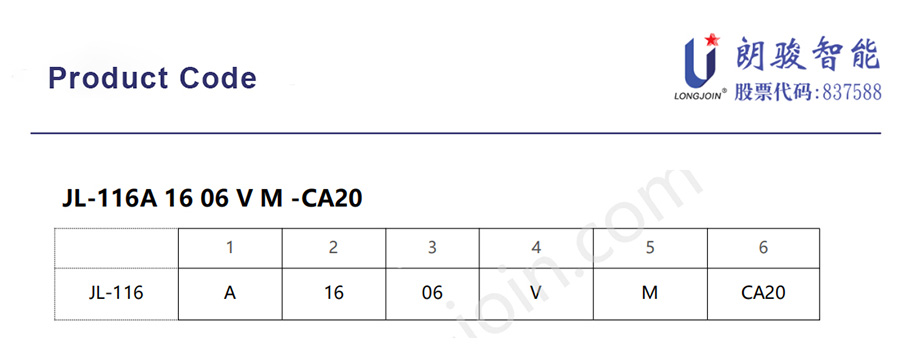

1: A=120VAC
B=220~240VAC
C=208~277VAC
D=277VAC
2: Lead Rating
16=16 AWG, 150ºC rated
