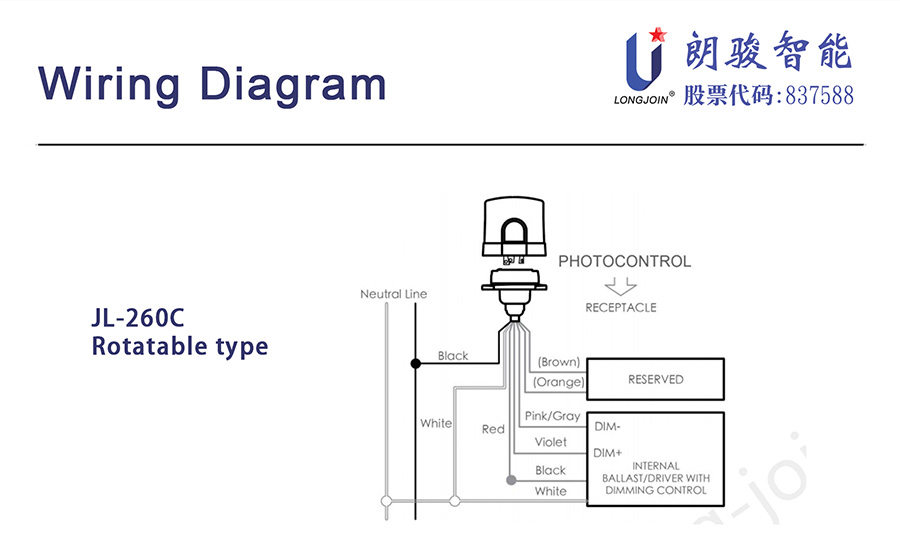

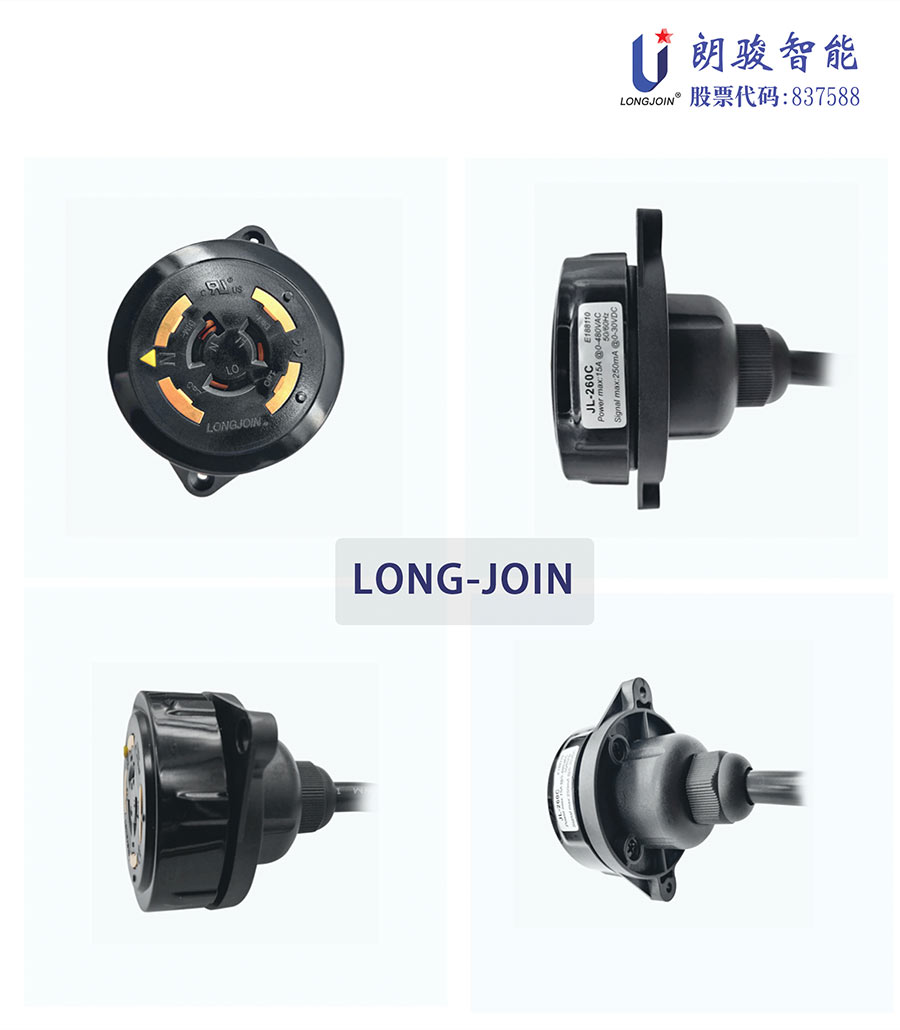

here a special type nema 7 pin receptacle. it has nice feature and ever waterproof than 240xa / 240Fxa receptacle. due to important some factor, JL260c receptacle terminal with nylon cover and tightly screwing waterproof gland cable connector. Especially in its rotation function, while the orientation of the lamp arm, you can adjust photocell sensor different angle on the horizontal toward sunlight. so easily operate, there are dimming and signal wire output keep up with JL-240xA with 7 pin receptacle the same.
| Number | JL-260C |
| Rated Voltage | - |
| Applicable Voltage Range |
0-480VAC |
| Rated Frequency | 50/60Hz |
| Signal Control | 0-30 VDC, 250 mA Max |
| Wire Gauge | 16AWG(Power)+18AWG(Signal) 20″ min |
| Operate Levels | 40°C ~ +70°C |
| Power Loading | 15A |
| Certificate | UL, CE,ANSI C136.41 |

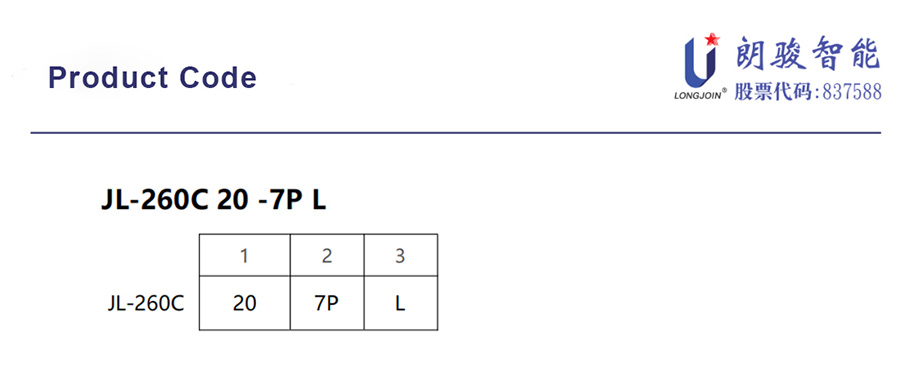

1: 20=20″ (Customizable, 20 Min.)
2: 7P=7 wires 5P=5 wires

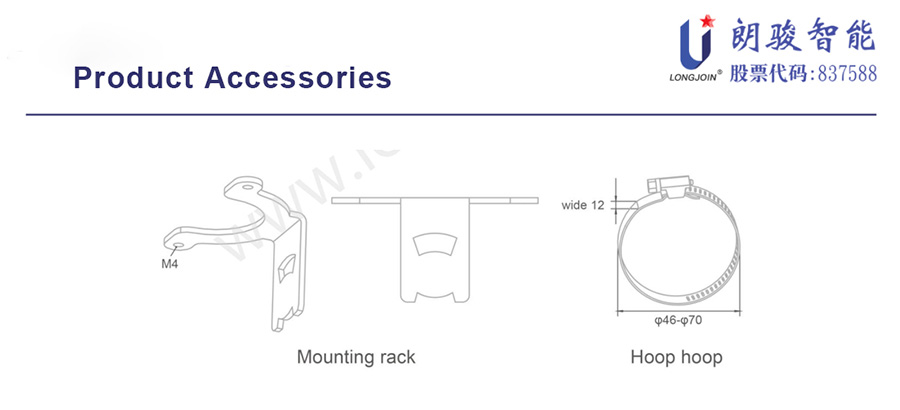

3: L=special aluminum bracket （option）
