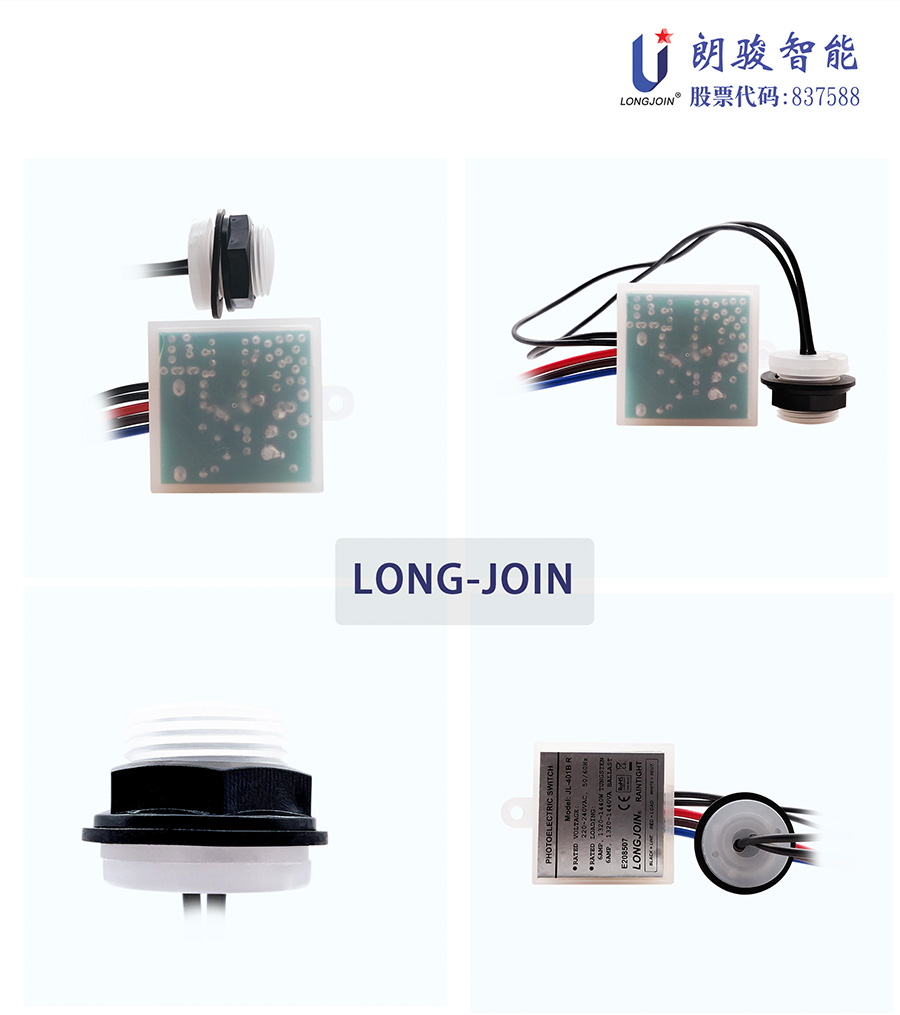

JL-401 series wire controller, this type controller is most use for outdoor lighting fixture, such as garden light post, led barn light, resident light. here 401 series control contain different voltage, ie 401B(R) 220-240VAC, 401C(R) 110-240VAC. if you want to special ingress protection rate, here provide completely sealing with silicone gasket.
| Number | JL-401B | JL-401BR |
| Rated Voltage | 220-240VAC | |
| Applicable Voltage Range |
- | |
| Rated Frequency | 50/60Hz | |
| Rated Loading | 6A TUNGSTEN、6A Ballast | |
| Power Consumption | 5W Max. | |
| Operate Levels | 10~20Lx Turn-On / 25~35Lx Turn-Off | |
| Fail Mode | Fail-Off | |

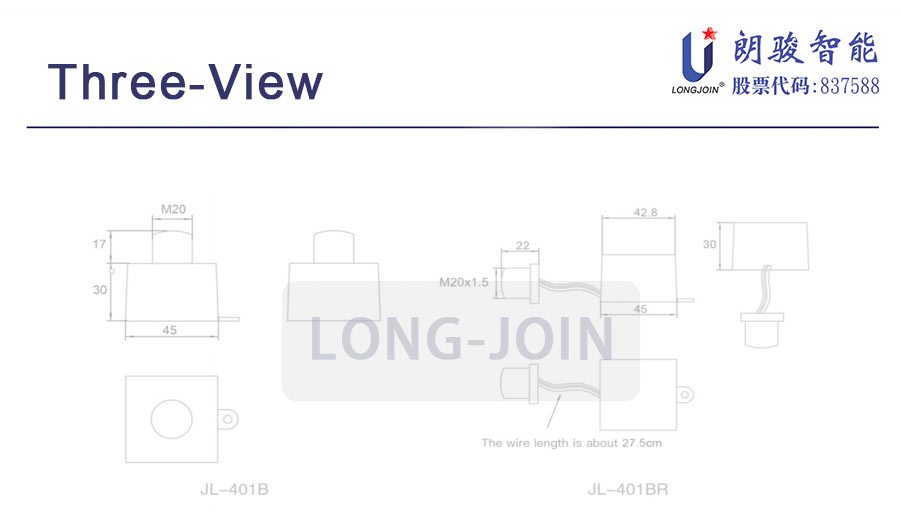

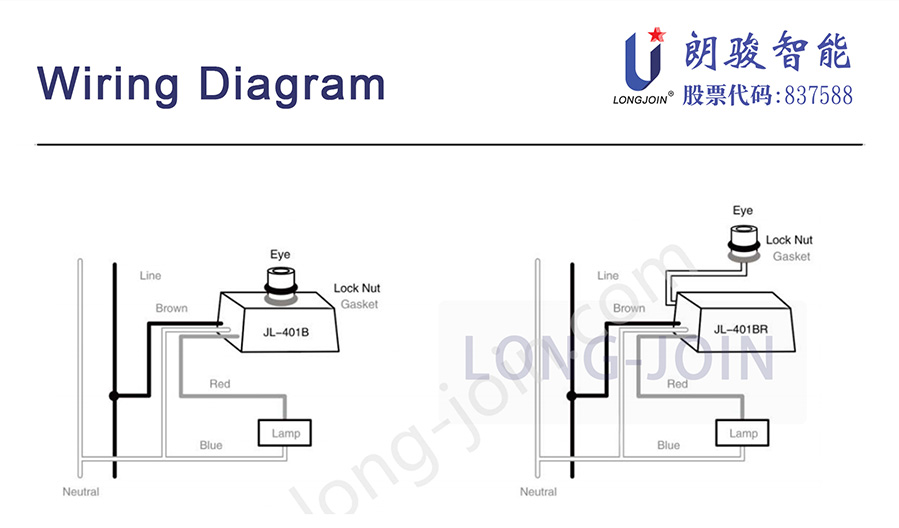

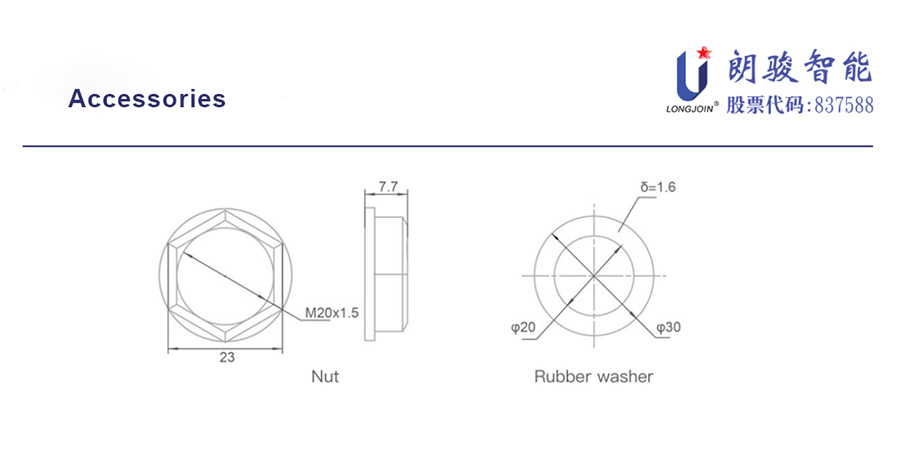

Disconnect power, place screw thread of the photocontrol in knockout hole and fasten with rubber gasket and lock-nut. Wire according to the diagram in below. Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night

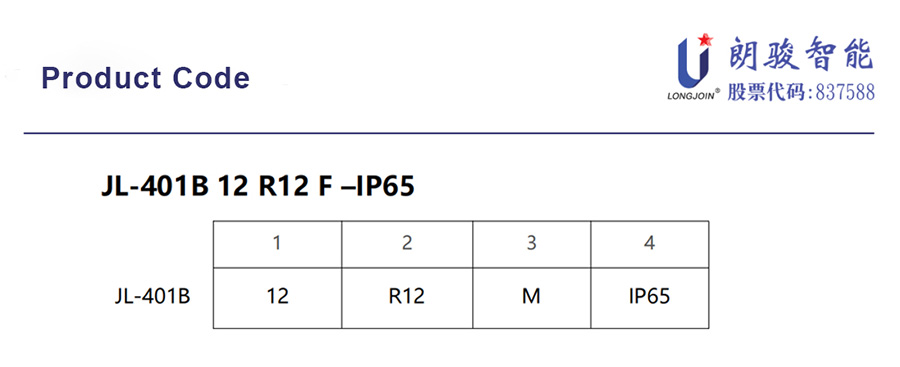

1: lead length
12=12″
2: Sensor Position
R=sensor separated
Null=sensor on body
12=12″sensor lead length
