This is a button photocell JL-413C (M, optional surge protection, 460j/10000Amp), at some time, we can give the electronic circuit controller work principle to improve power factor performance than ever before. you can take JL-403C as comparison example, thought, you can know this product real meaningful.
| Number | JL-403C(M) |
| Rated Voltage | 120-277VAC |
| Applicable Voltage Range |
105-305VAC |
| Rated Frequency | 50/60Hz |
| Rated Loading | 1000W Tungsten, 1200VA Ballast@120VAC 8A e-Ballast@120V |
| Power Consumption | 0.5W |
| Operate Levels | 40°C ~ +70°C |
| Wire Gauge | AWG #16,AWM 1015 |
| Certificate | UL, CE,RoHS |

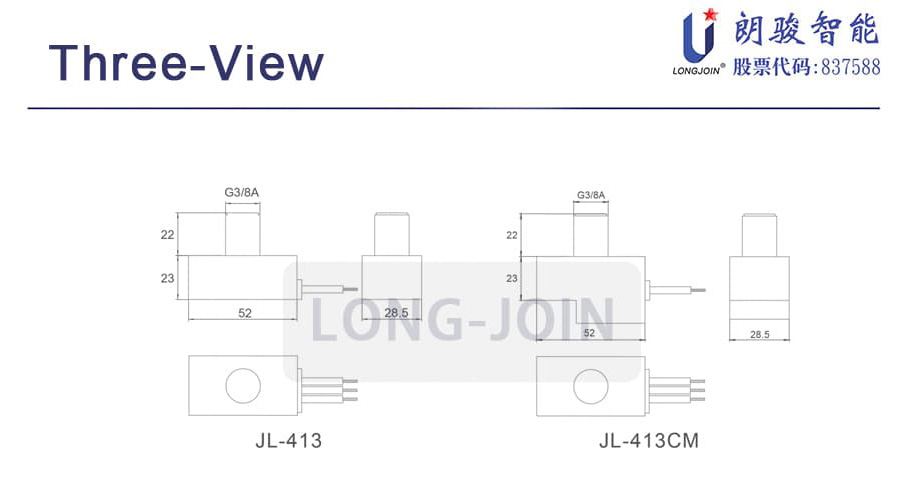

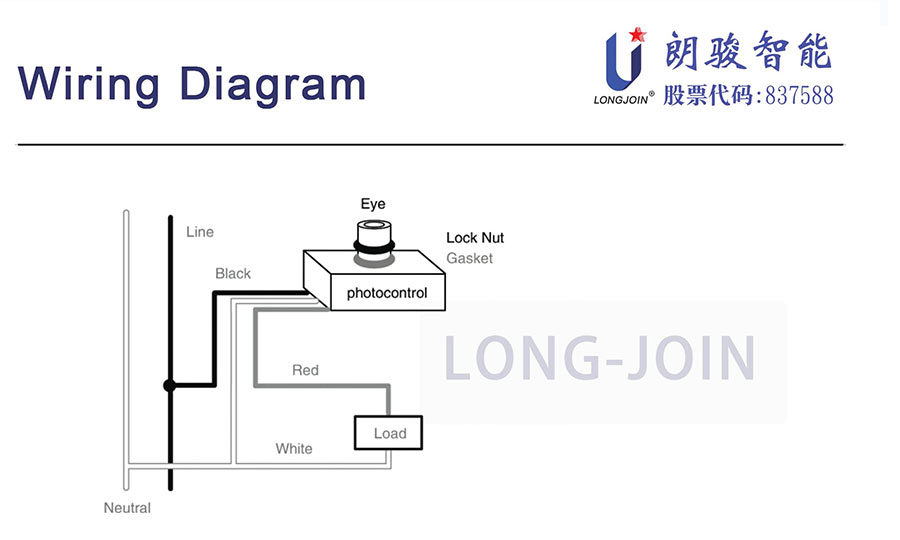

Disconnect power, remove junction box cover, place the photocontrol through knockout hole and fasten with locknut. Wire according to the diagram in below.
Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night.

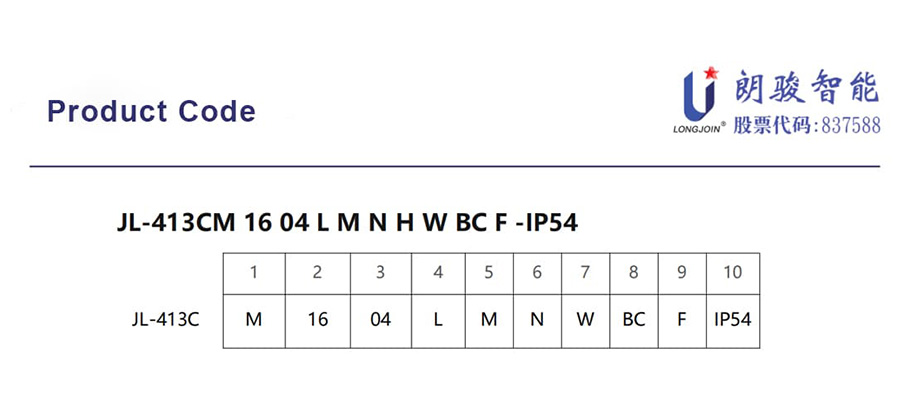

1: M(optional) = MOV23, 460Joule / 10000Amp
04: Lead Rating
2:16=16 AWG, 105ºC
16G=16 AWG 150ºC
5:W(option) =UL holographic label
7:W: W(option)= aluminum panel

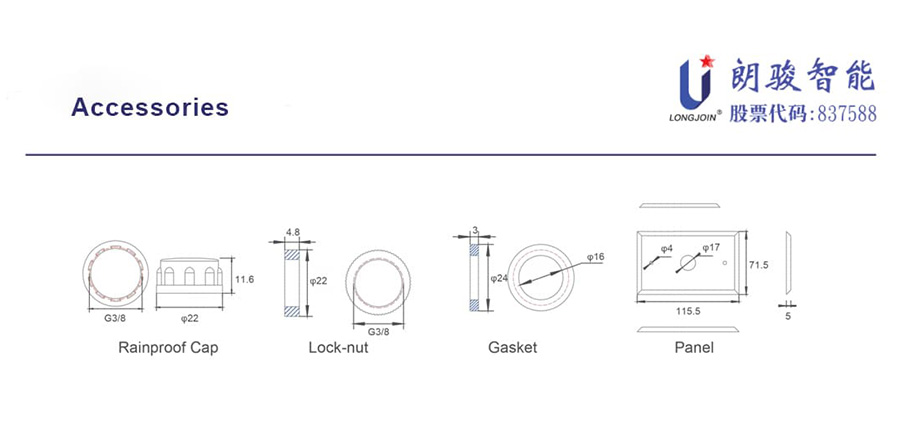

8: optional cap
BC = black shading cap
CC= transparent rain cap
Null = none
