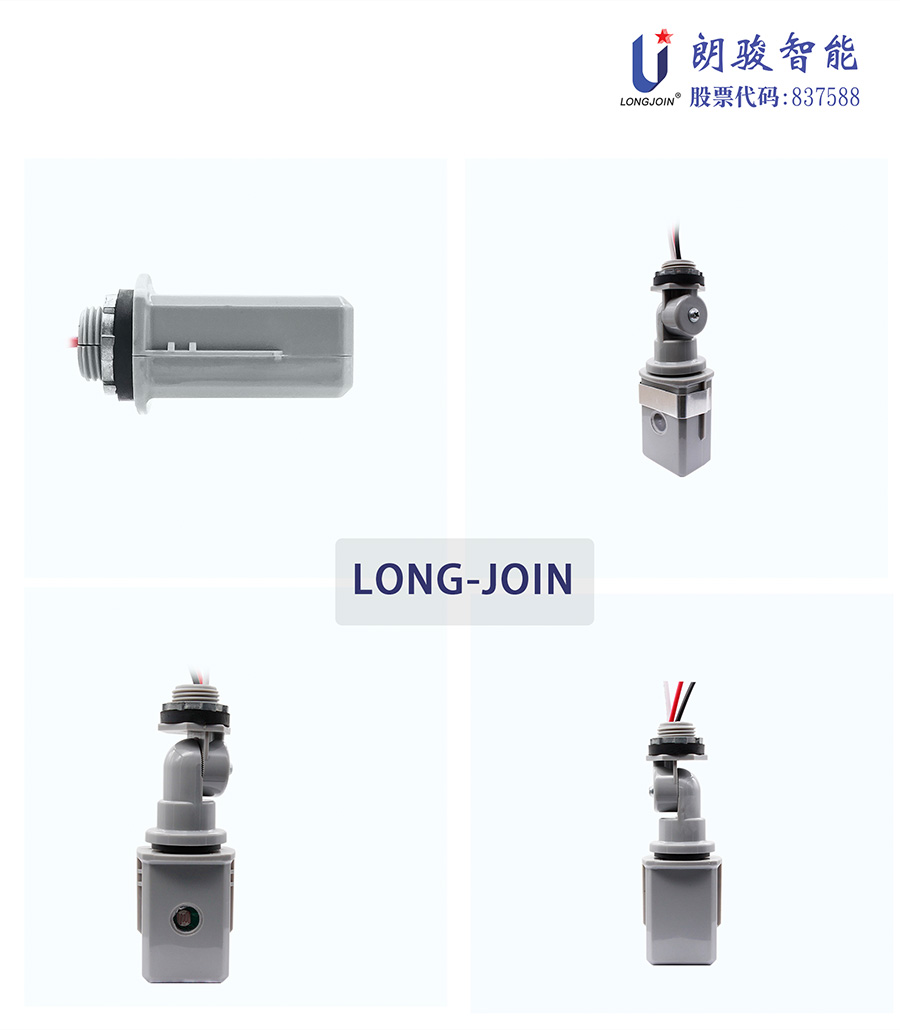

JL-48C type electronic controller, and by manual directional orient toward sunlight, which can left-right swing horizontal via swivel stem until adjust somewhere point location.
Time delay 5 seconds offers easy-to-test feature while avoiding redundancy operation due to spotlight or lightening during night time.
optional function parameter, such as JL-428CZ include cross-zero technology avoid rush voltage at moment and longer work life. by the way, if you want to choose good lighting solution, then also you considerate not only this light fixture Electrical parameters loading <=1000w, and 1200va ballast @120vac, and you again think which type controller to better suit for our lighting engineer .
| Number | JL-428C | JL-408CZ | |
| Rated Voltage | 120-277VAC | ||
| Applicable Voltage Range |
105-305VAC | ||
| Rated Frequency | 50/60Hz | ||
| Rated Loading | 1000W Tungsten 1200VA Ballast @120VAC 1800VA Ballast @208-277VAC 8A e-Ballast @120VAC 5A e-Ballast @208-277VA |
||
| Power Consumption | 0.5W Max | ||
| Operate Levels | 16Lx Turn-On / 24Lx Turn-Of(choose parameter is deponed your choice ) | ||
| Fail Mode | C4:Fail off, C5:Fail On | ||
| Surge Protection | Opition | ||

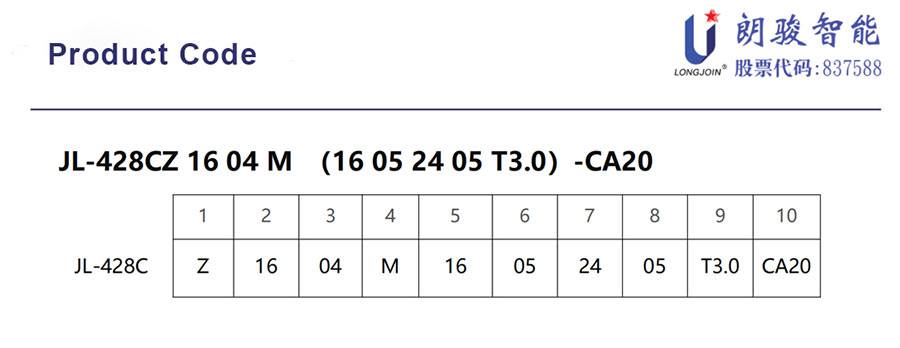

1: Z= Zero cross（option）
2: Lead Rating 16=16 AWG, 105ºC rated 16G=16 AWG 150 ºC rated
3: Lead Length XX, in inches (04 min.)
4: M(option) =UL holographic labe
Post time: Jul-02-2025
