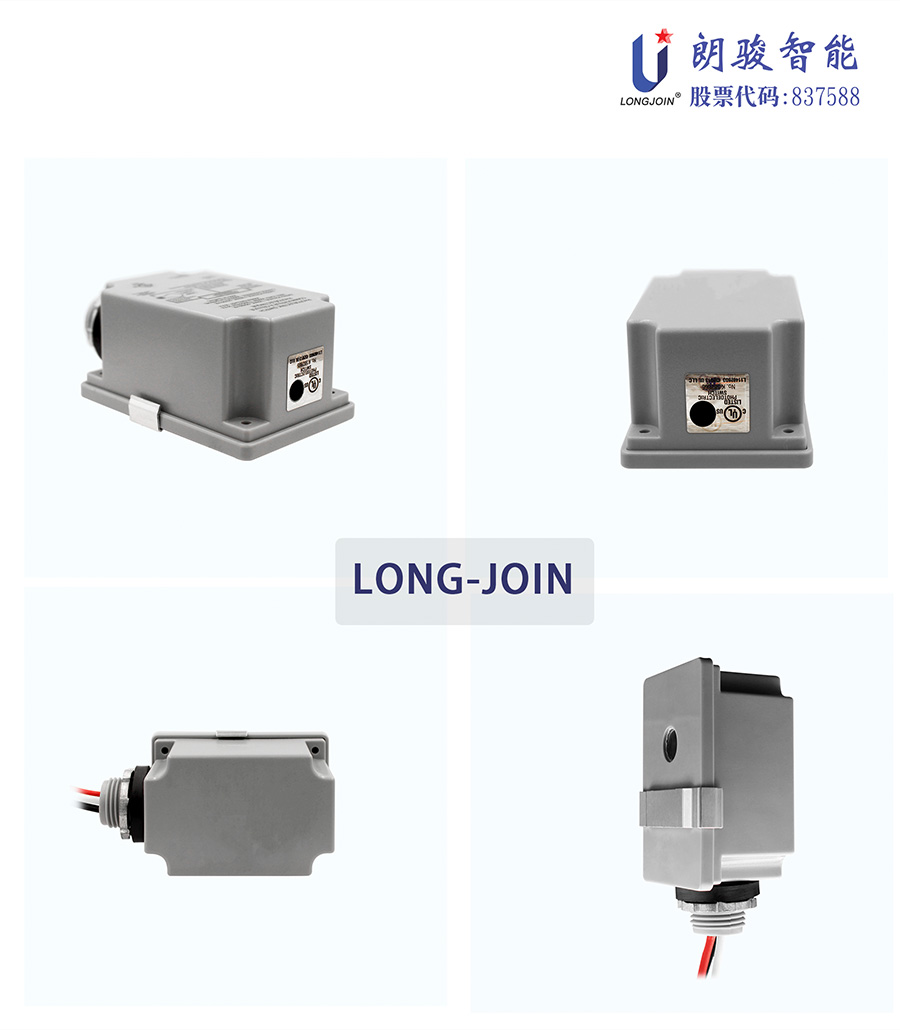

JL-106 series stem photocell switch with different voltage, such as 120v work environment as only use for fix constant voltage conditions. and if you use this place line voltage status, you perfect for choose both product type jl106b and jl106c. due to these light controller just steady work drive under grid electricity power. apart in work voltage function steadily, stem photocell can adjust metal slip sheet up-down freely move, as result in whether light fixture delay on or delay off lighting from dusk to dawn.
| Number | JL-106A(V) | JL-106B(V) | JL-106C(V) | JL-106D(V) |
| Rated Voltage | 120VAC | 220-240VAC | 207-277VAC | 2577VAC |
| Applicable Voltage Range |
– | 200-305VAC | – | |
| Rated Frequency | 50/60Hz | |||
| Rated Loading | 2000W Tungsten,2000VA Ballast | |||
| Power Consumption | 1.5W Max. | |||
| Operate Levels | 10~20Lx Turn-On / 30~60Lx Turn-Off | |||
| Fail Mode | Fail on | |||

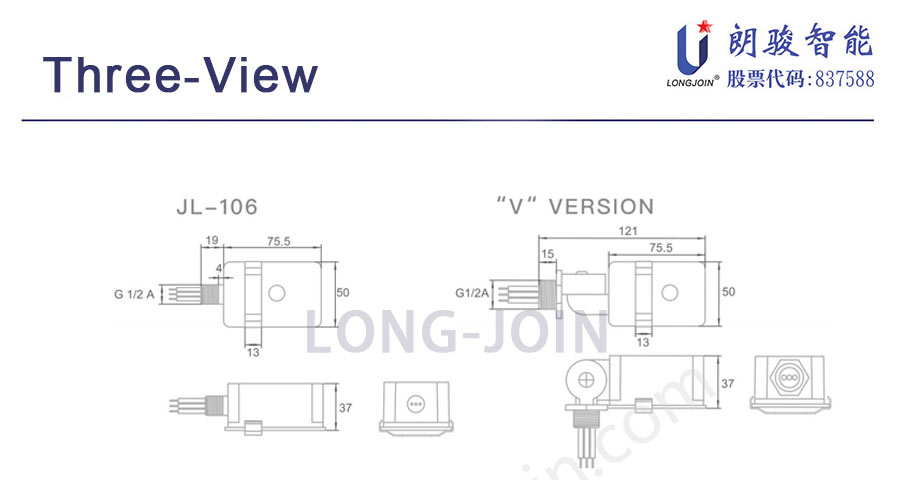

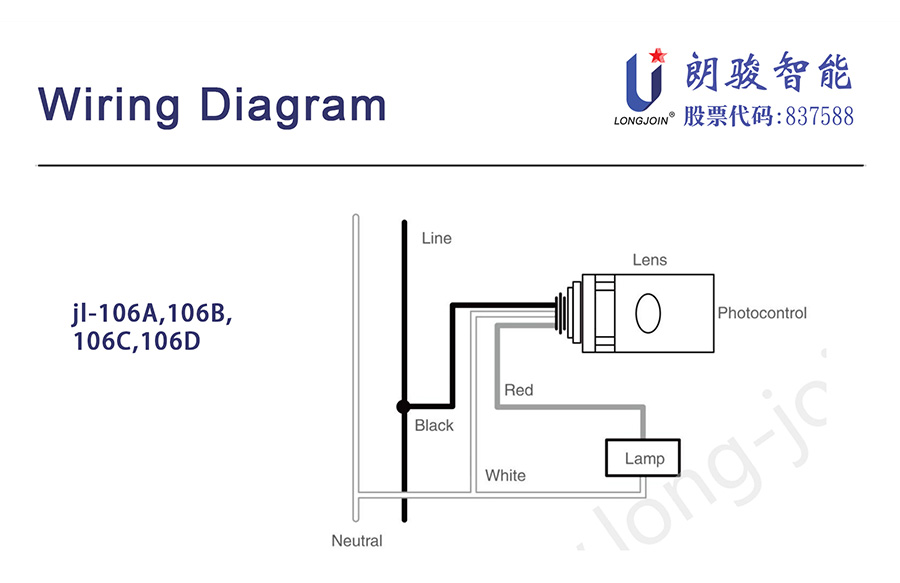

Wire according to the diagram:
Slide the shading strip to have preferred On/Off levels, if necessary.
Do not install the switch with the Photocell facing artificial or reflected light. This will cause the unit to cycle on and off at night.

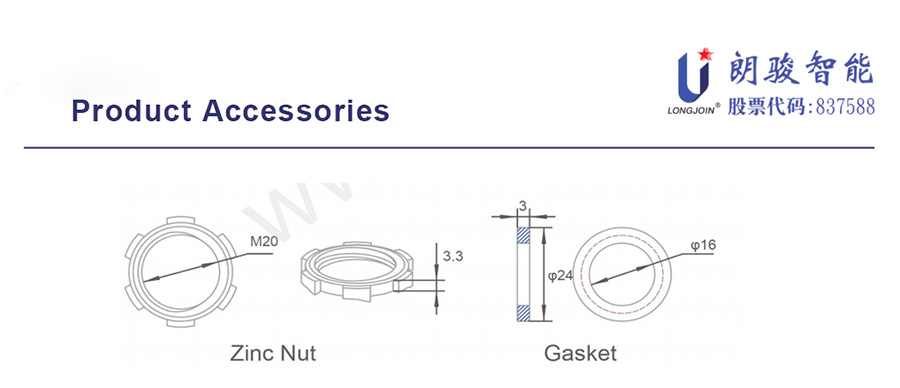

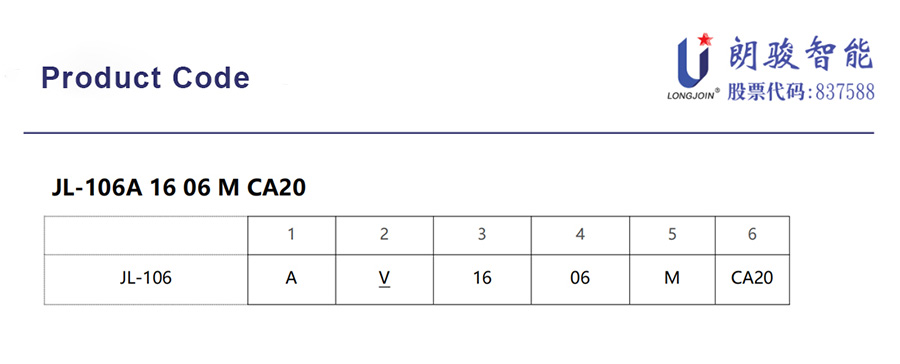

1: A=120VAC
B=220~240VAC
C=208~277VAC
D=277VAC
2: V(option) =swivel added
3: Lead Rating 16=16 AWG, 150ºC rated
