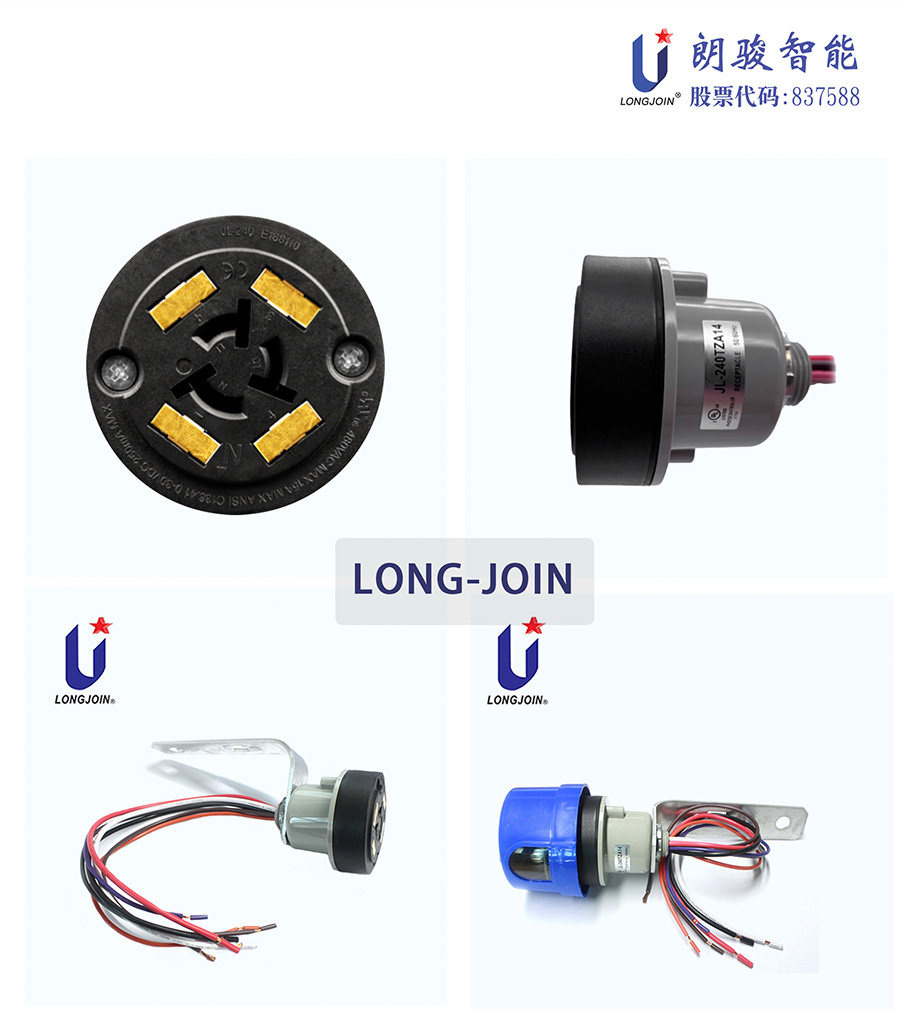

JL240tz series all meet to nema standard interface, and these receptacle is comply with UL listed book regulation. it have different design pin structure for dimming interface requirements. for instance JL-240TZA 7 pin receptacle while it is prepare to place DAli dimming and smart wireless cities street light upgrade, and JL-240TZB 5 pin receptacle while you can conjoint 0-10v dimming control. you can also optional aluminum bracket as this accessories , then it can wall pack mount on this light fixture or arc light pole to best way protect light fixture good slim shape.
| Number | JL-240TZ |
| Rated Voltage | - |
| Applicable Voltage Range |
0-480VAC |
| Rated Frequency | 50/60Hz |
| Signal Control | 0-30 VDC, 250 mA Max |
| Wire Gauge | 16AWG, 14AWG, 6inch |
| Operate Levels | 40°C ~ +70°C |
| Load Rating | 15A |
| Certificate | UL, CE,ANSI C136.41 |

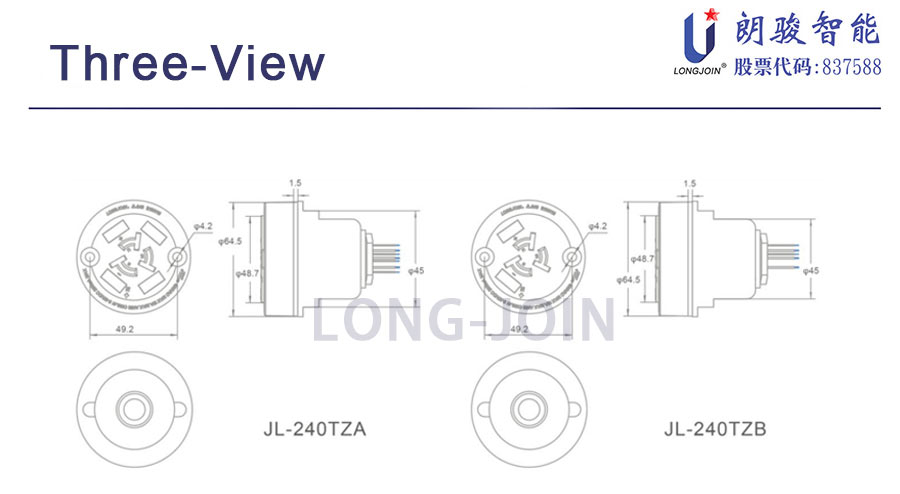

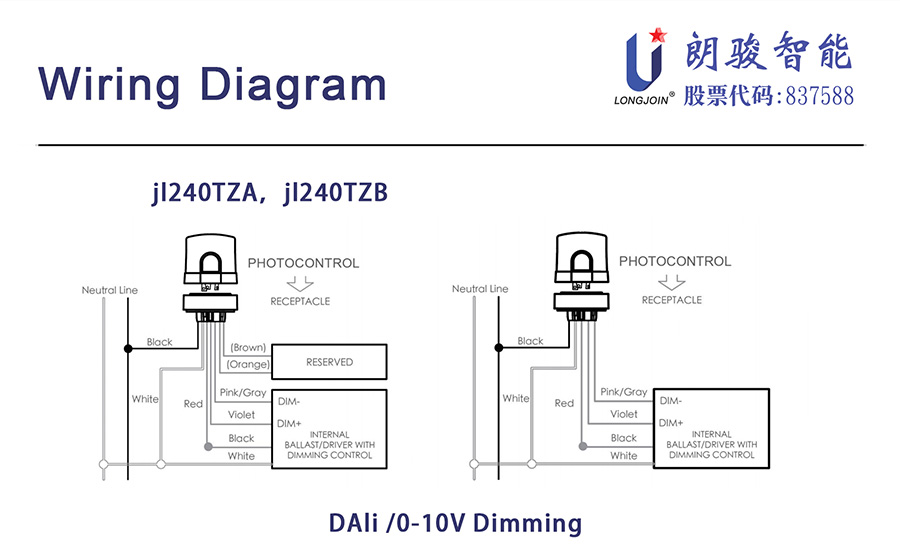

Disconnect power; wire the receptacle according to the diagram below.
An arrow indicating NORTH on the top face is used to assist correct orientation.

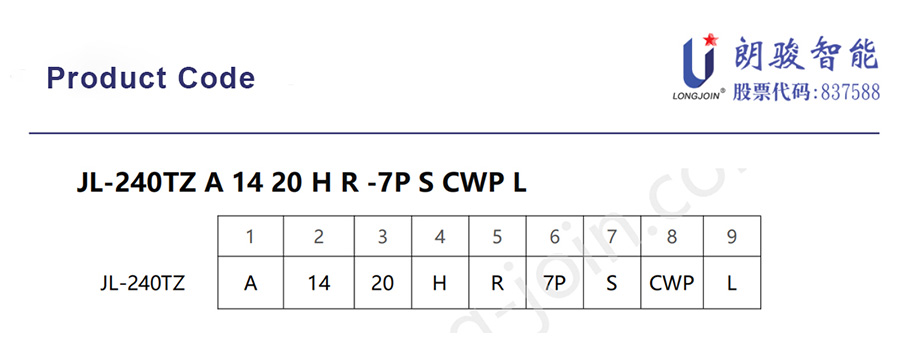

1: A=4 Dimming pads B=2 Dimming pads
2: Power Lead Rating
14=14 AWG, 105ºC rated
14G=14 AWG 150 ºC rated
16=16 AWG, 105ºC rated
16G=16 AWG 150 ºC rated
16S=16 AWG Double isolated wire (Class II)
3: 20= 20″ (Customizable, 12 Min.)
