Long-join Ruin Out New Prodcut JL-700W2 Book18 Standard

700w2-zhaga-socket_01

JL-700w2 base on old version JL-700W had developed, and it not only book18 standard property and Socket without leads, and also a extra add four wiring holes bring light fixture manufacture with choice good driver solution.  in additional, This innovative design make manufacturers to easily add extra drivers without complex wiring. by slightly improve this JL-700W ensure light fixture can be customizability and scalability.  by harness this new version zhaga socket, then lighting luminaries can be more easily mul-function forward, such as multi-level dimming, colour temperature adjustment, scene switching, remote control and monitoring, and intelligent sensor control.

Model No. JL-700W2 (slot design)
Related Humidity 96%
Work Temperature -40 ℃-70℃
Wires The outer diameter of the wire conductor shall not exceed 1.5mm, the outer diameter of the wire sheath shall not exceed 2.2mm, and the stripping head shall be 7.5-14mm and tinned
IP IP66
Certifications zhaga book18, CE
Wiring Hole definition
-Port 1:24VDC
- Port 2:DALI–/GND
- Port 3:DALI+
- Port 4:reserveI/O

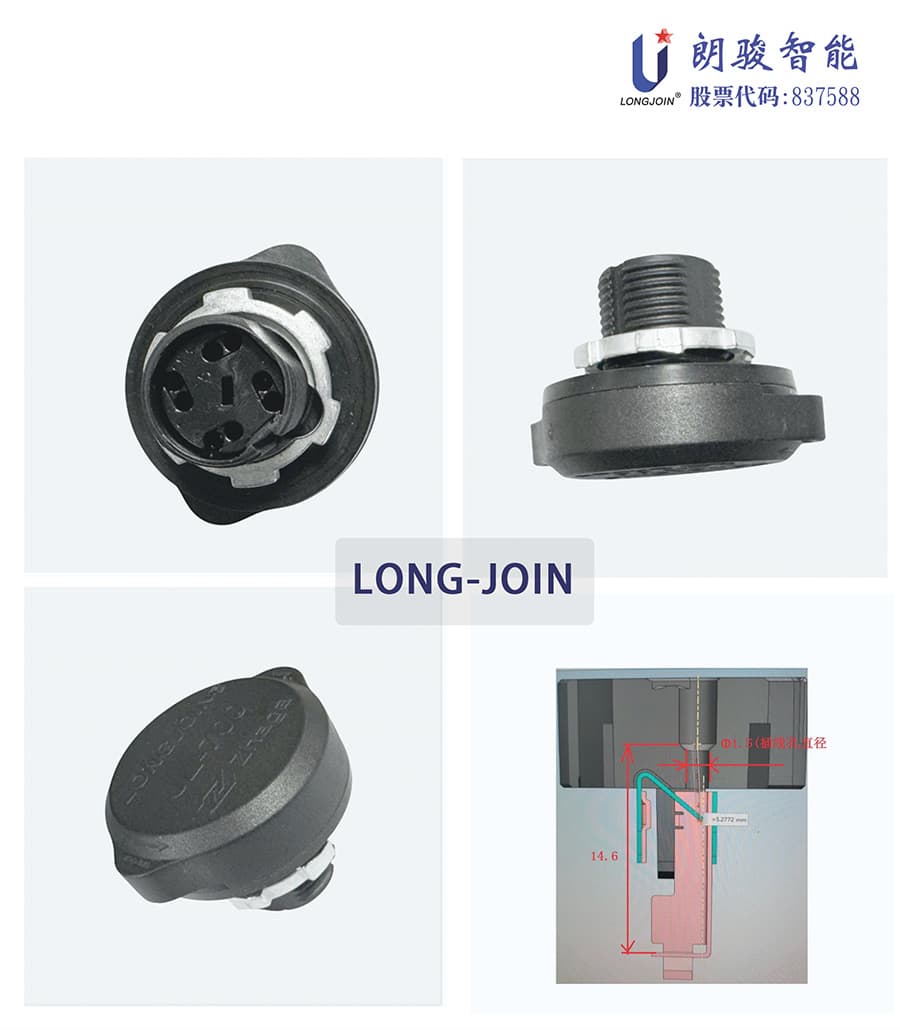

700w2-zhaga-socket_02

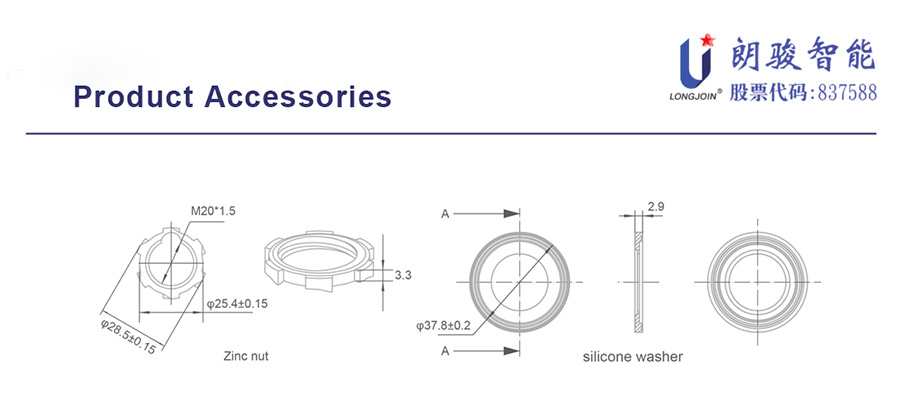

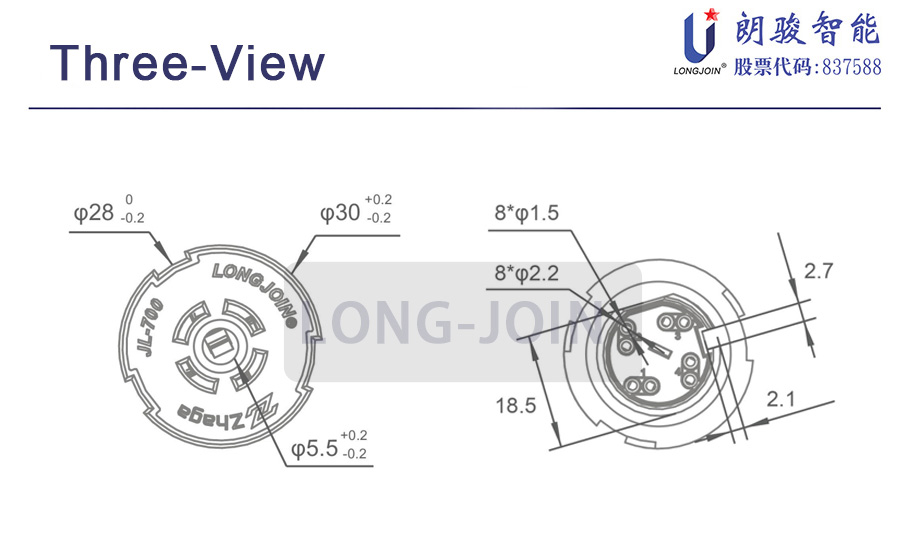

700w2-zhaga-socket_03 700w2-zhaga-socket_05 700w2-zhaga-socket_06




Post time: Aug-29-2025
