Product Description

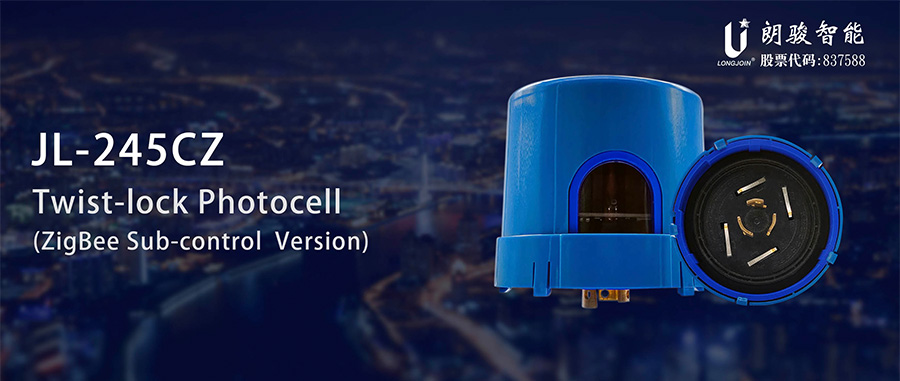

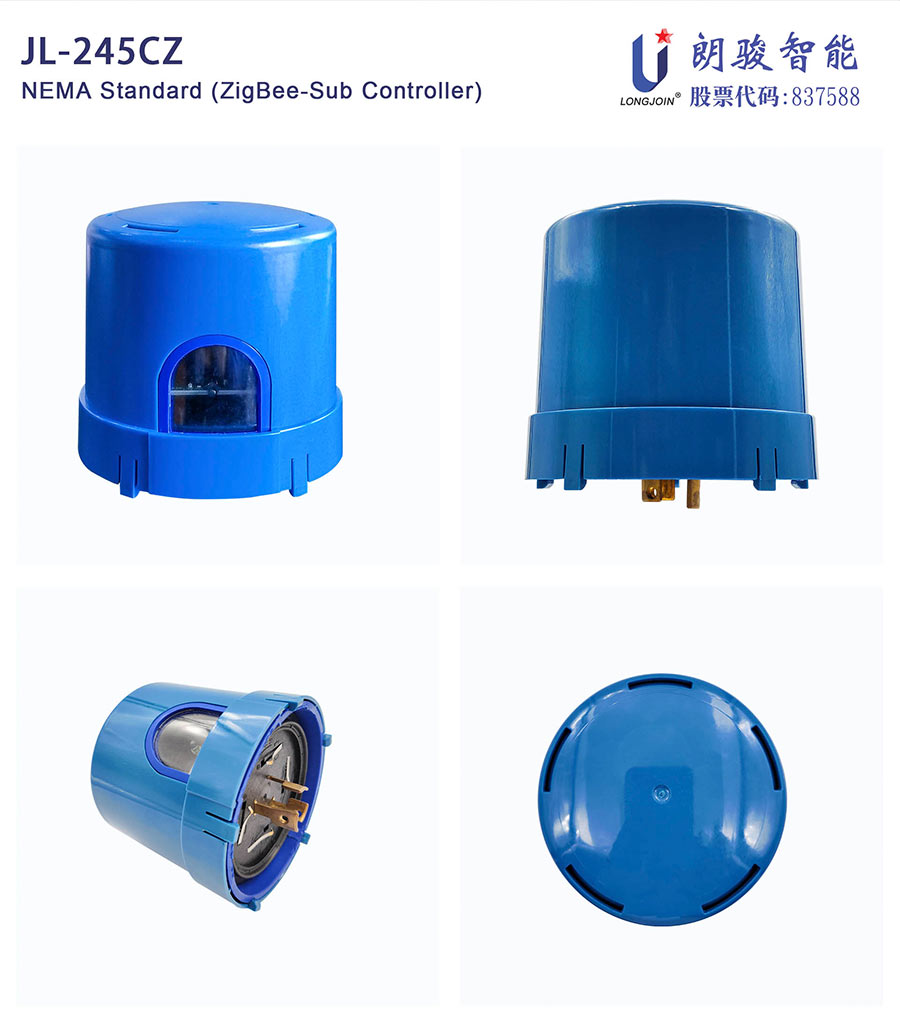

The JL-245CZ Twist lock smart light switch is suitable for cloud control and self-control modes. It can be used in municipal roads, park lighting, landscape lighting, etc.
This product is equipped with a ZigBee communication module. When used with JL-246CG (main control), it can be remotely controlled through the UM-9900 intelligent lamp pole management system.
Product Features
. ANSI C136.41 twist-lock
· Dimming Method: 0-10V/1-10V Dimming
· Surge Protection Level: 6KV/3KA Differential Mode
· Optional Double Protection Housing for Long Service Life
· multi-Voltage
· controller and nema receptacle combination reach to IP67
· IR-Filtered Phototransistor
Product Parameter
| Item | JL-245CZ | |
| Rated Voltage | 120-277VAC | |
| Applicable Voltage Range |
105-305VAC | |
| Rated Frequency | 50/60Hz | |
| Dimming Output | 0-10VDC | |
| Wrieless Communication(up/down) | Zigbee | |
| Spectral Acquistion Range | 350~1100nm；Peak wavelength 590nm | |
| Rated Loading | 1000W Tungsten ,1000VA Ballast , 8A@120VAC/5A@208-277VAC e-Ballast | |
| Fail Mode | Fail-on | |
| Shell Material | PC | |
| Surge Protection Level | 6KV/3KA differential mode | |
| Operate Levels | turn on<100lx, turn off>150lx/ available custom | |
| IP Level | IP67 | |
| Factory Settings | Remote control+Adaptive mode | |
| Criterion | IEC61000-4-5;IEC61000-4-2;IEC61000-4-3; IEC61000-4-6;GB/T 17743-2017;IEC61000-4-4; IEC61000-4-11;IEC61000-3-2;GB/T2423.10-2008;UL94-V0; |
|
| Certificate | UL,CE,RoHS | |

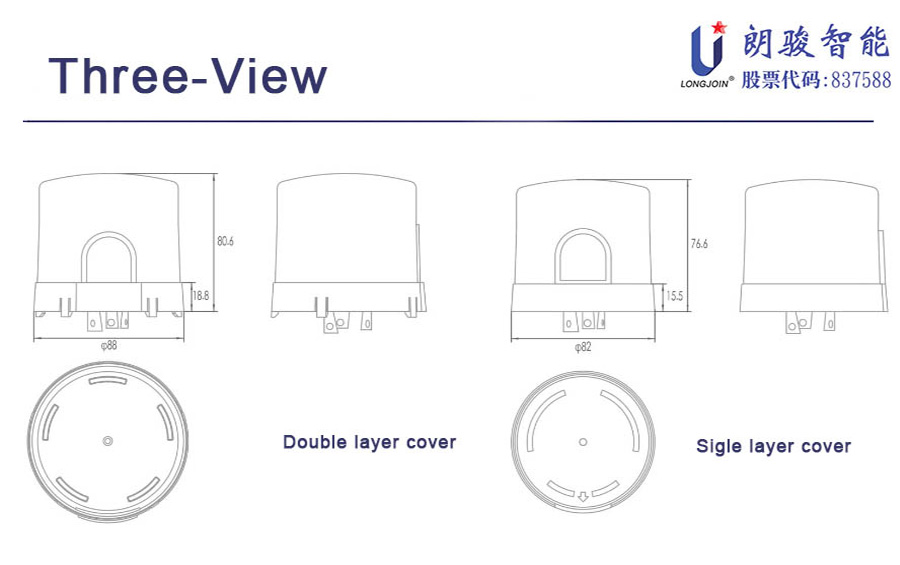

Installation Instructions

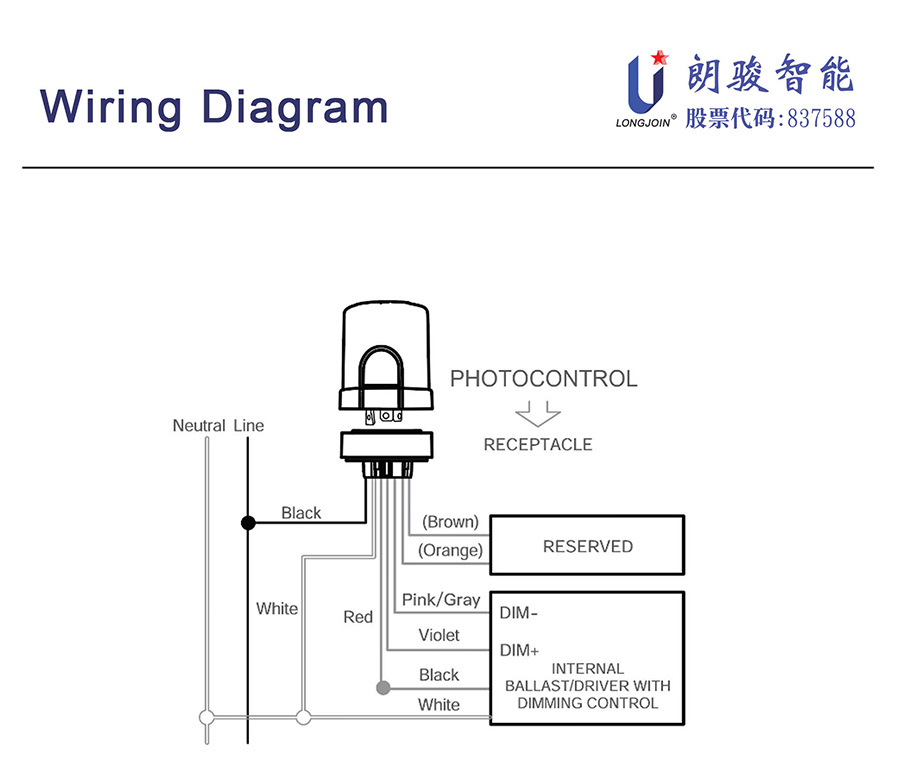

· The product interface has been anti-stupid processed, installation only needs to directly screw the controller with the base, as shown below
.Insert and tighten clockwise
·The product supports hot pluggable
In system networking applications, you can batch import light controller information into our intelligent lighting management system through the web side in advance. You can also use WeChat “UM9900 Smart Lamp Pole” public account to scan the light controller QR code label at the scene to access the light control system.
Initial testing
· During the first installation, the light controller usually takes several seconds to turn off.
· To test “on” during the day, cover the light-sensitive window with black tape or opaque material.
· Do not cover with your fingers, because the light passing through your fingers may be enough to turn off the light control device.
· The light controller test takes about 2 minutes.

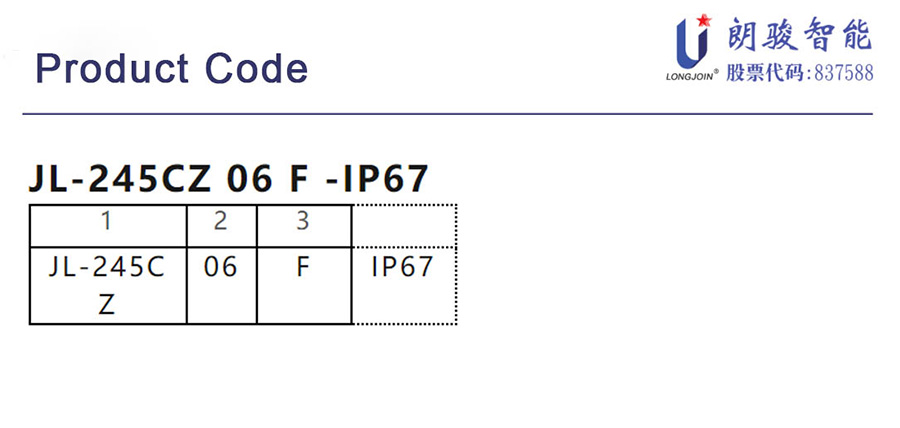

Product Code Table
JL-245CZ 06 F -IP67
1: ZigBee Wireless Communication Module, No SIM Card Slot Available
2: 06 = 6KV Lightning Protection
3: Housing Color
F = Blue H = Black K = Gray
