JL-412C or JL-412CR, all type is multi voltage, 120-277VAC. in additional to these mini type controller can available support 105-305VAC.

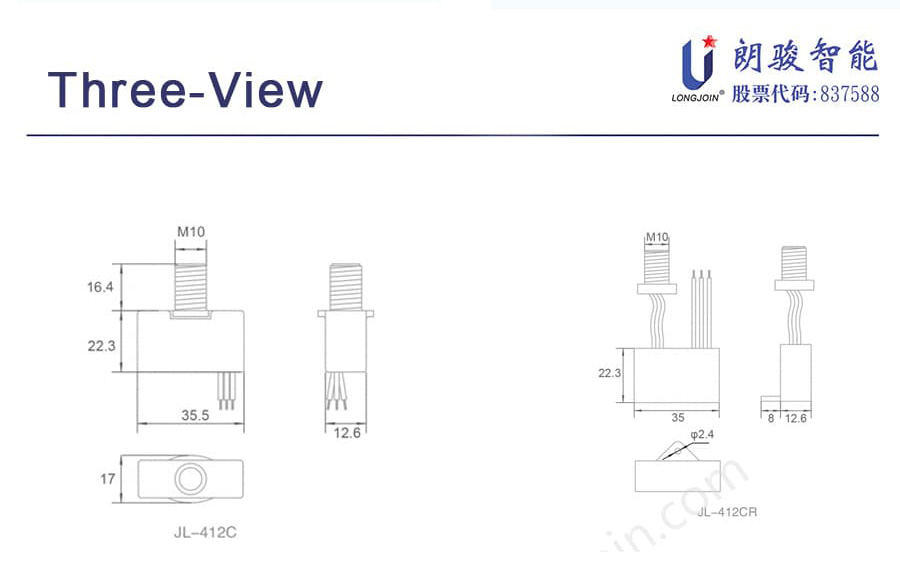

JL-412C, sensor head on the controller body,
JL-412CR, sensor head is separated or mini controller with wire connect light sensing head.
power consumption: 1W max
this type product will replace 101A mini controller, as well as it is used home front door light, wall pack light, etc.
| Number | JL-412C(R) |
| Rated Voltage | 120-277VAC |
| Applicable Voltage Range |
105-305VAC |
| Rated Frequency | 50/60Hz |
| Rated Loading | 1.2A Tungsten / Ballast 1A e-Ballast |
| Power Consumption | 1W max |
| Operate Levels | 10~30Lx Turn-On / 30~80Lx Turn-Off |
| Leads Length | AWG #18, AWM1430 |
| Certificate | UL/CE,RoHS |

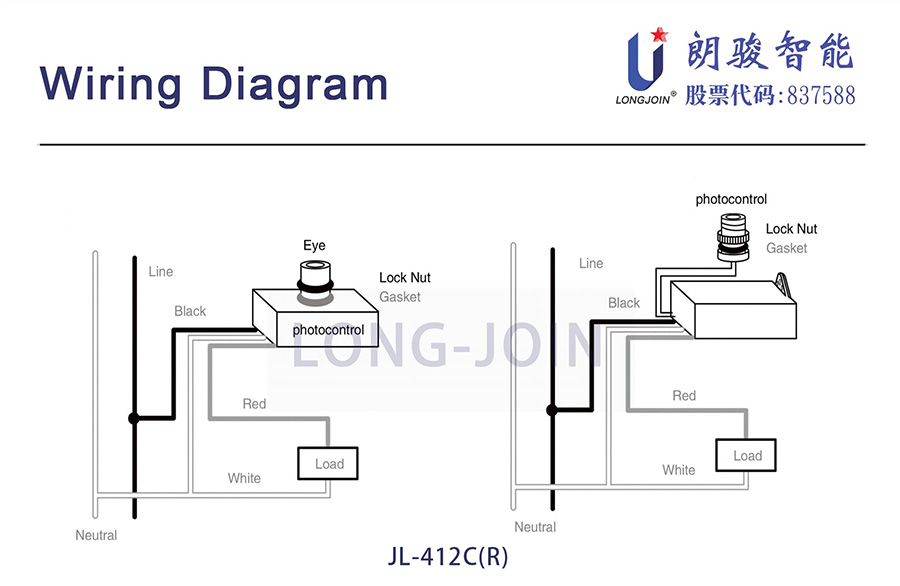

Disconnect power, place screw thread of the photocontrol in knockout hole and fasten with rubber gasket and lock-nut. Wire according to the diagram in below. Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to
cycle on and off at night.

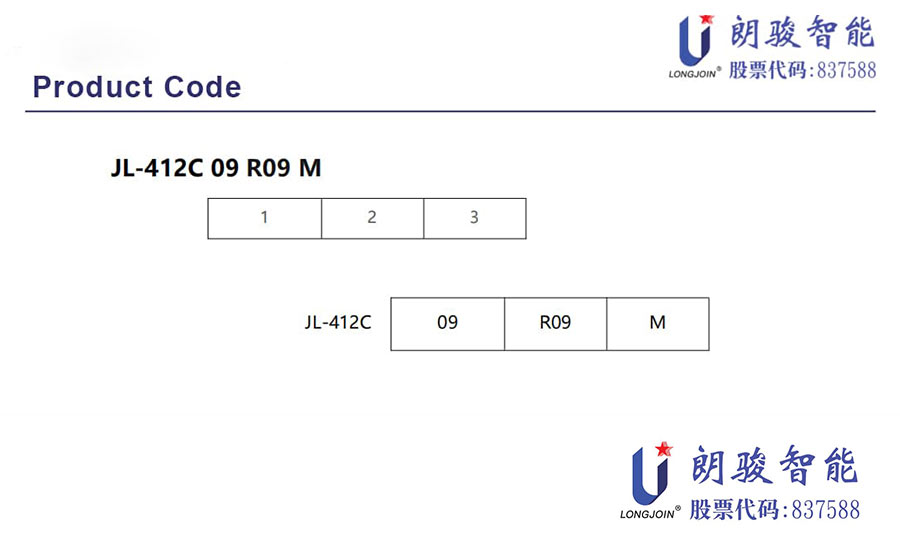

2: lead length
09=09″ (Customizable)
3: Sensor Position
R=sensor separated
Null=sensor on body
9=9″sensor lead length
