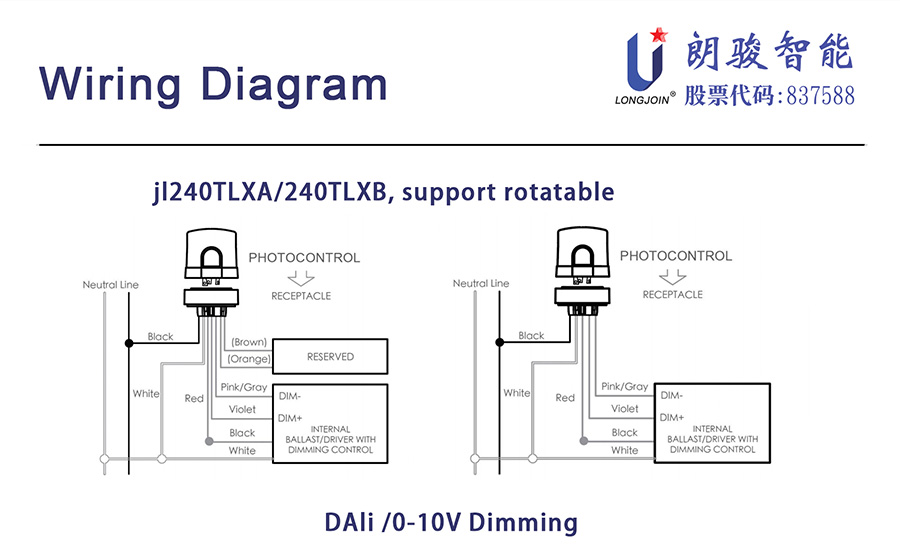

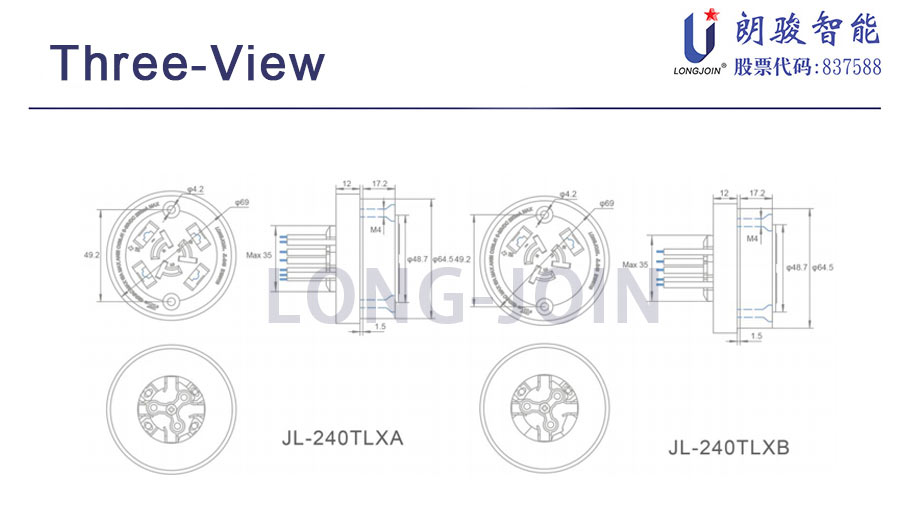

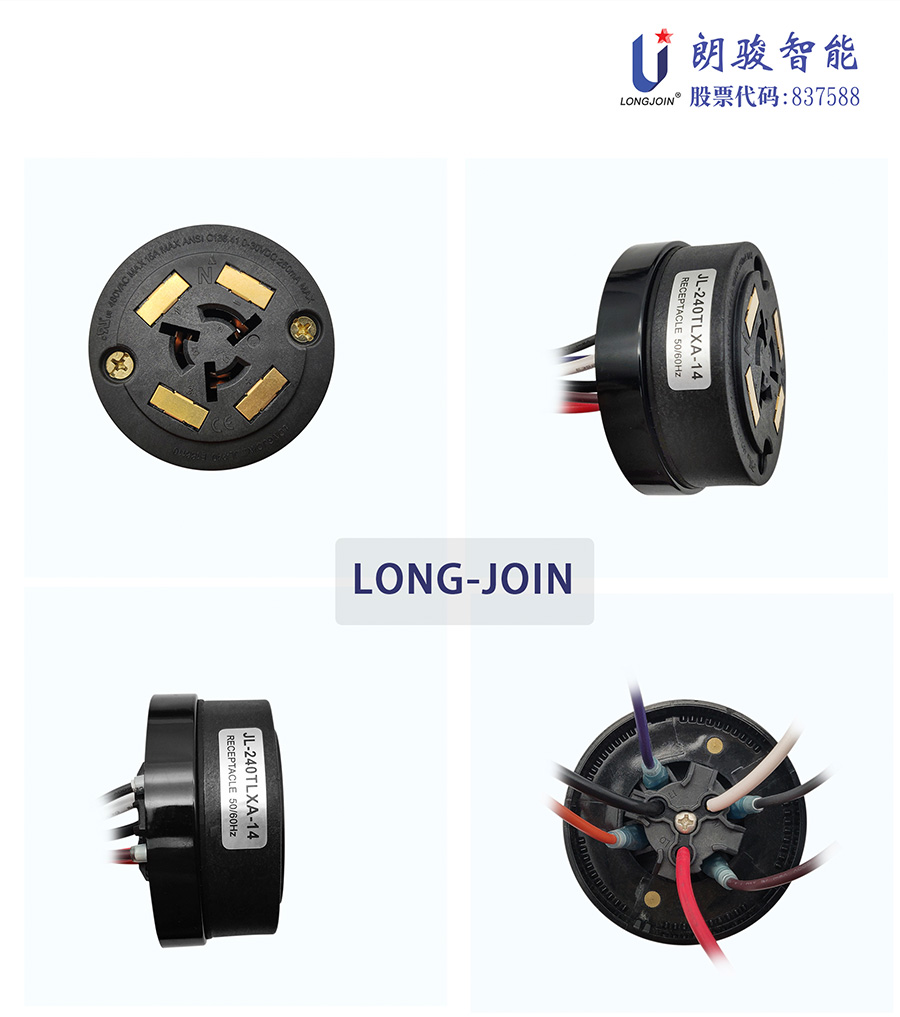

JL-240TL series nema receptacle, it is feature dimming and rotatable. for instance, this receptacle body with 5 pin or 7pin, them you can choose 0-10v dimming with 5pin , also Dali dimming with 7 pin. for you get perfect meet lighting project books and future-proof smart lighting trends, i think, choose 7 pin receptacle play role important in upgrade municipal lighting from legacy high pressure sodium to dual led saving-energy lighting and multi-function controller. let us next step, jl-240TL series structure have unique limited rotate performance. this type receptacle with gear ring to help we further adjust twist lock photocell toward different location. in all words, JL-240TL series similar to our standard jl240xa receptacle design structure. once occur special installation condition, so you can choose this receptacle with rotatable function.
| Number | JL-240TL |
| Rated Voltage | - |
| Applicable Voltage Range |
0-480VAC |
| Rated Frequency | 50/60Hz |
| Signal Control | 0-30 VDC, 250 mA Max |
| Wire Gauge | 16AWG, 14AWG, 6 inch min |
| Operate Levels | 40°C ~ +70°C |
| Load Rating | 15A |
| Certificate | UL, CE,ANSI C136.41 |
Post time: Jul-17-2025
