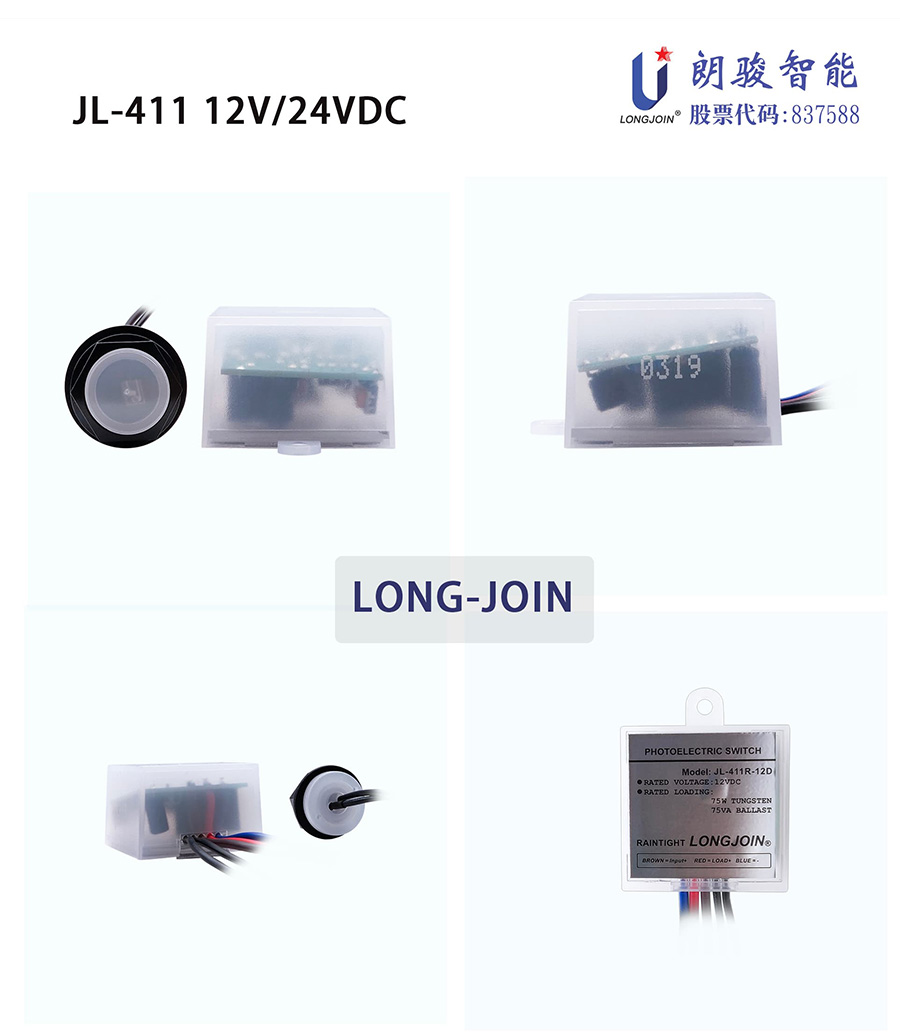

Here have a electronic type controller , it is suit for available work voltage 12v, and 24V, and can wiring an piece led light fixture, and don’t maximum work power <75w. in a word, this light controller is appreciable ranges in 1 pieces led street light, and small type decoration light fixture.
1-Power consumption: 1W
2-3~10s Time-delay
3-low voltage light controller
| Number | JL-411(R)-12D | JL-411(R)-24D |
| Rated Voltage | 12VDC | 24VDC |
| Applicable Voltage Range |
- | |
| Rated Frequency | 50/60Hz | |
| Rated Loading | 75W | |
| Power Consumption | 1W Max. | |
| Operate Levels | 5~15Lx Turn-On / 20~80Lx Turn-Off | |

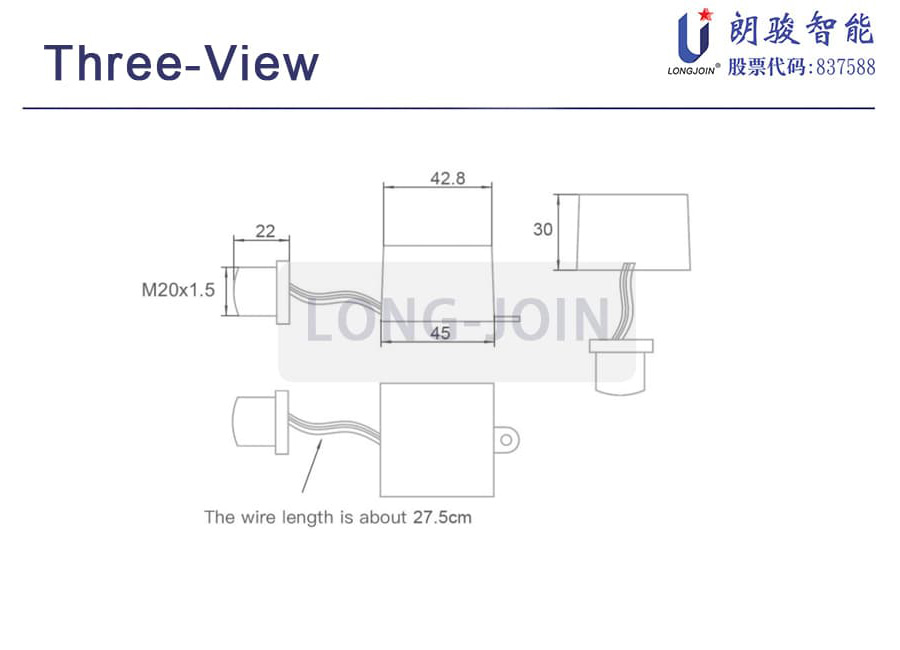

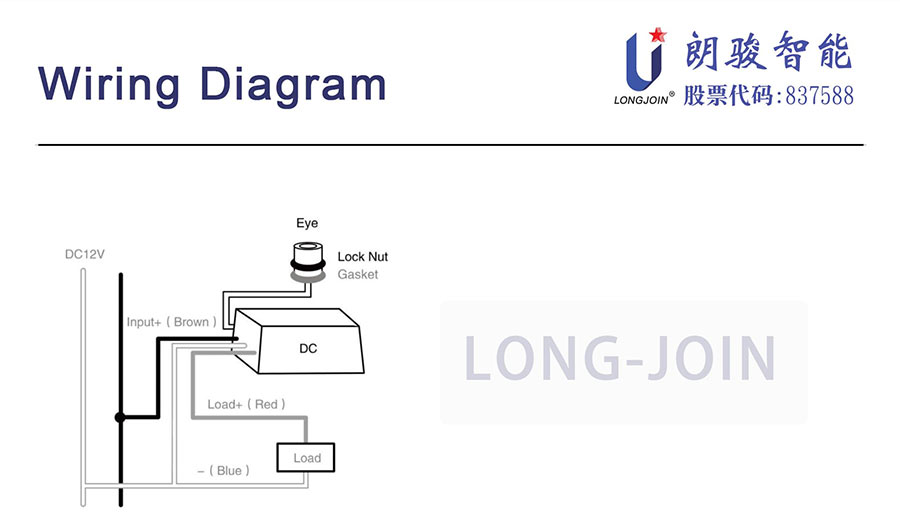

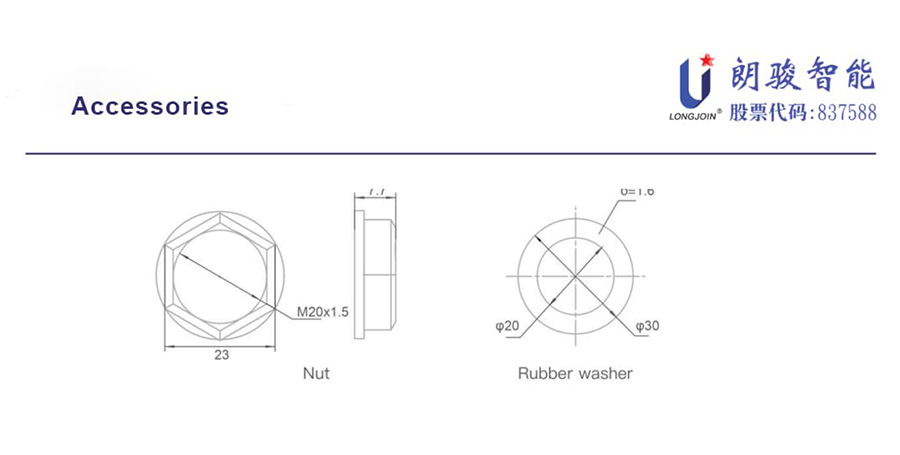

Disconnect power, remove junction box cover, place the photocontrol through knockout hole and fasten with locknut. Wire according to the diagram in below.
Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night.

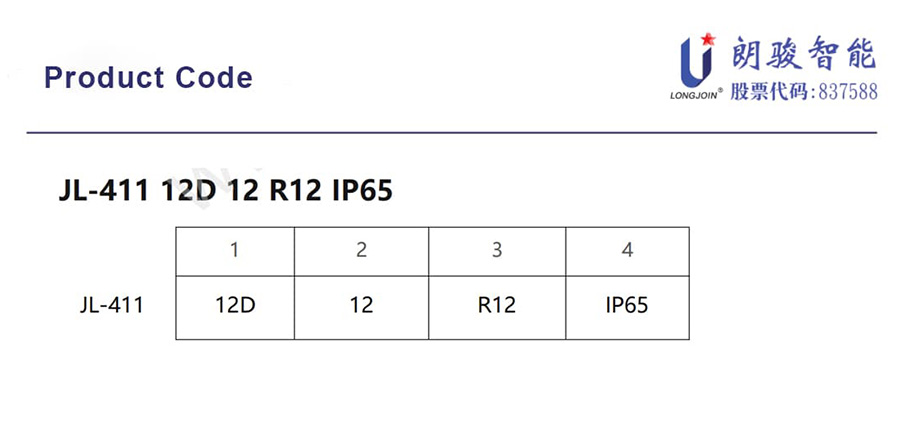

1: 12D=12VDC
24D=24VDC
2: lead length
12=12″
Customizable
3: Sensor Position
R=sensor separated
Null=sensor on body
12=12″sensor lead length
