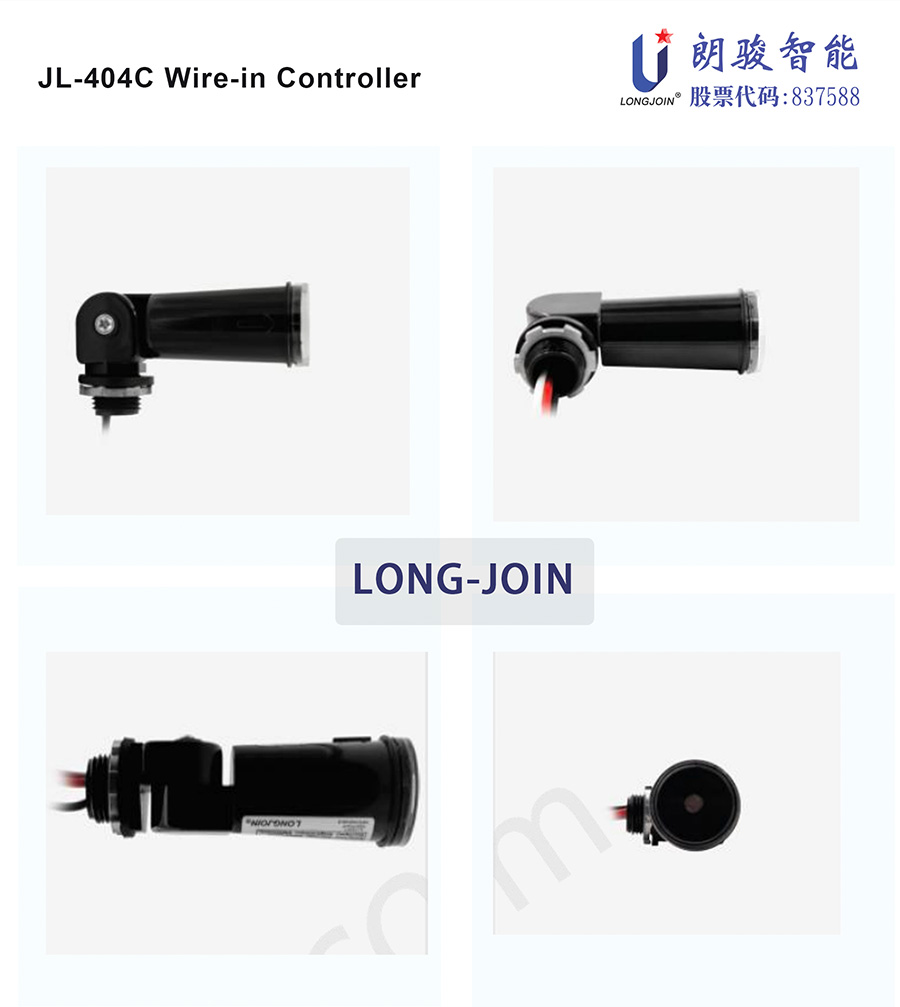

Here this 404c stem photocell switch with different feature:

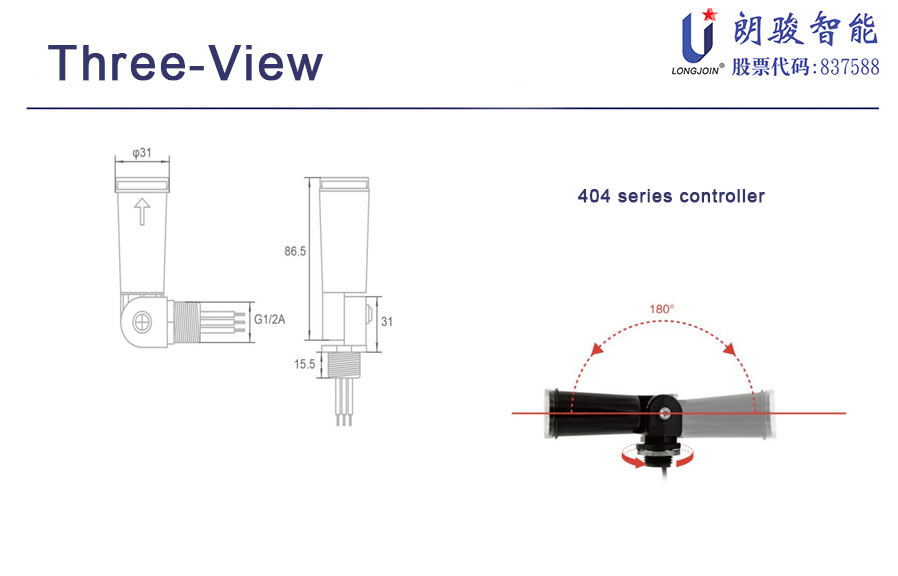

* you can freedom adjust angle at 180 degree horizontal.
* this is a multi voltage differ from standard 104A with 120V.
* if you choose black cap to shield sunlight, then led light work on temporary long-time lighting at 24 hour，and it is special usage for usual scenario.
Product Special
| Number | JL-404C |
| Rated Voltage | 120-277VAC |
| Applicable Voltage Range |
105-305VAC |
| Rated Frequency | 50/60Hz |
| Rated Loading | 500W Tungsten, 850VA Ballast 5A e-Ballast |
| Power Consumption | 1.8W@120VAC |
| Operate Levels | 40°C ~ +70°C |
| Wire Gauge | AWG #18,105℃ |
| Certificate | UL, CE,RoHS |

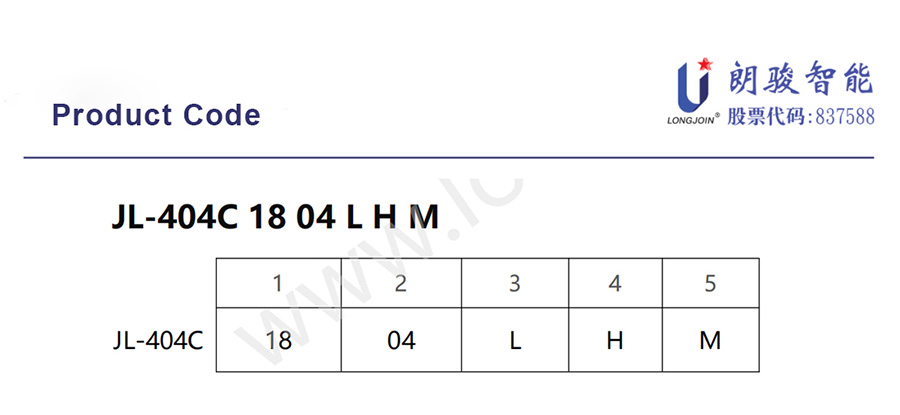

1: Lead Rating
18=18 AWG, 105ºC rated
18G=18 AWG 150 ºC rated
2: Lead Length
XX, in inches (04 min.)
3: L = Closed
Q = Notched
