Wire-in electronic Photocontroller, it is key feature that dusk to dawn from start to close for led street lighting. compare to JL-412 series controller, and this controller lux depend on your requirement, and low lux value is meant that this high precision light sensitive function at dusk.
| Number | JL-422C(R) |
| Rated Voltage | 120-277VAC |
| Applicable Voltage Range |
105-305VAC |
| Rated Frequency | 50/60Hz |
| Rated Loading | 1.2A Tungsten / Ballast 1A e-Ballast |
| Power Consumption | 1W max |
| On Levels | 16 Lx（± 5） |
| Off Levels | Initial: 24 Lx（±5 *Once reflected light（△）is detected：Δ+24±5 Lx |
| Leads Length | AWG #18, AWM1430 |
| Unique point |
Zero crossing function
|
| Certificate | UL/CE,RoHS |

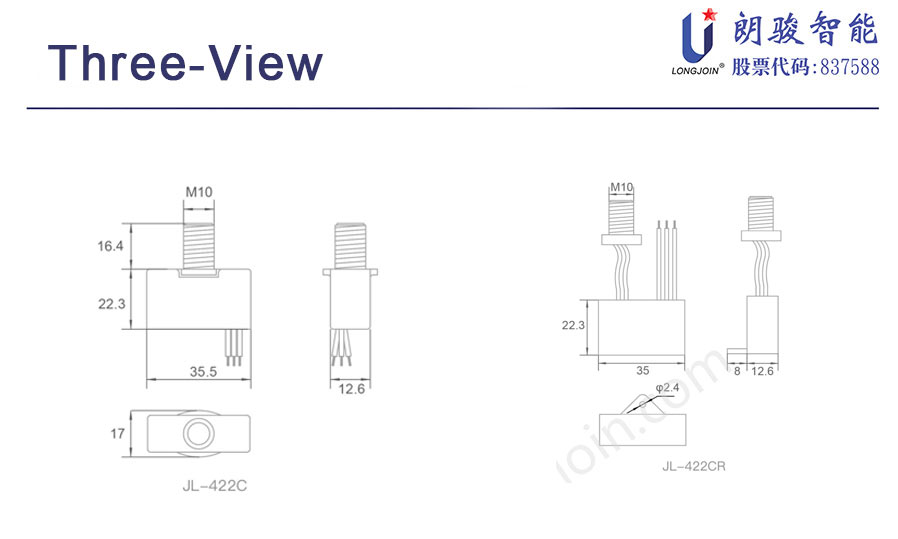

Disconnect power, place screw thread of the photocontrol in knockout hole and fasten with rubber gasket and lock-nut. Wire according to the diagram in below. Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night.

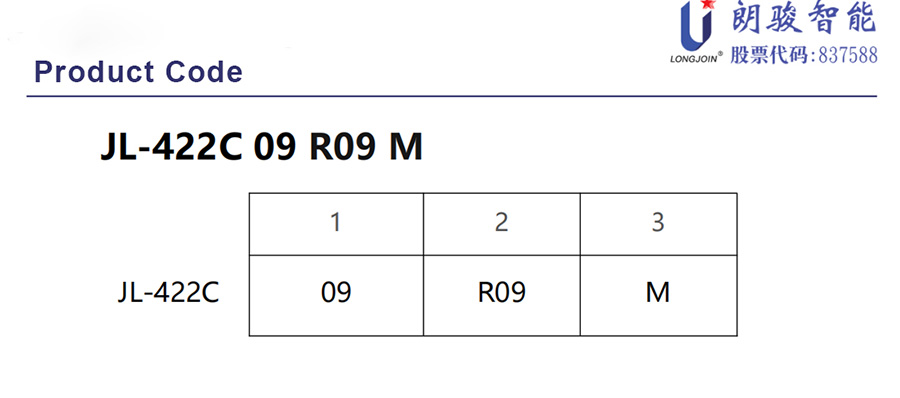

2: lead length
09=09″ (Customizable)
3: Sensor Position
R=sensor separated
Null=sensor on body
9=9″sensor lead length
