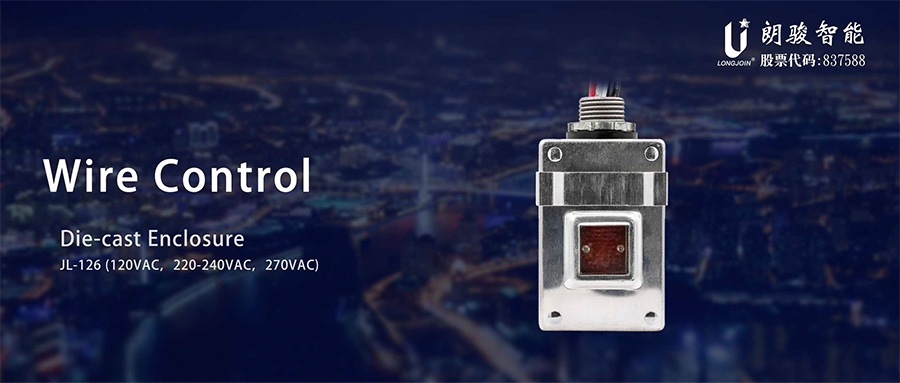

JL-126 series wire controller, JL-126A 120VAC , JL-126B 220-240VAC, and JL-126D 277VAC. this type controller is hard cover can stand extend environment conditions. it is feature have two control mode, like by manual slide sheets with up-down sliding can to turn on or turn off light controller, then you can slightly some distance of slide sheets toward up or down, as result to affect light controller delay time length about start or close from day to evening.
| Number | JL-126A | JL-126B | JL-126D |
| Rated Voltage | 120VAC | 220-240VAC | 277VAC |
| Applicable Voltage Range |
- | ||
| Rated Loading | 3000W Tungsten,2000VA Ballast | 3000W Tungsten,3000VA Ballast |
|
| Rated Frequency | 50/50Hz | ||
| Power Consumption | 1.5W max. | ||
| Operate Levels | 10~20Lx Turn-On / 30~60Lx Turn-Off | ||
| Operate Levels | -40℃ ~ +70℃ | ||
| Fail Mode | Fail on | ||
| Lead Wire | N：AWG#18 AWM1015; Li/L0：AWG#10 AWM1015 6″ min |
||

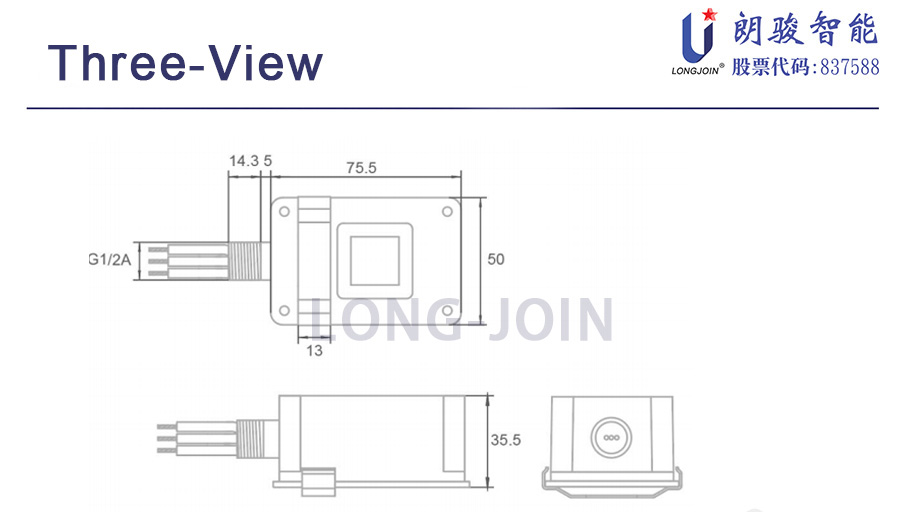

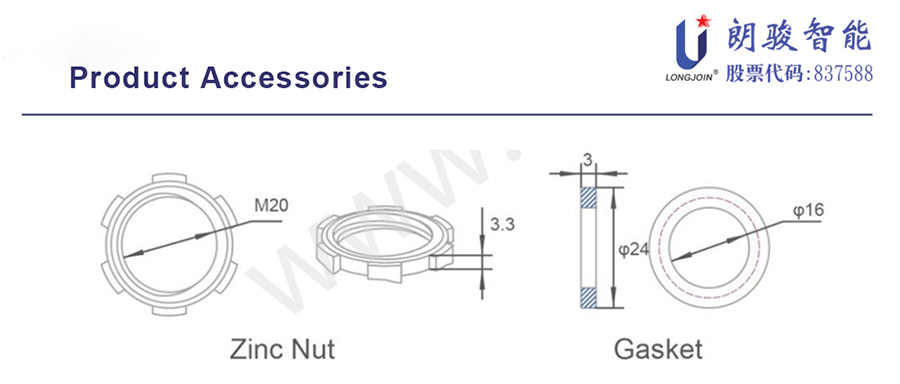

Disconnect power, place screw thread of the SWITCH in knockout hole and fasten with rubber gasket and Zinc alloy lock-nut.

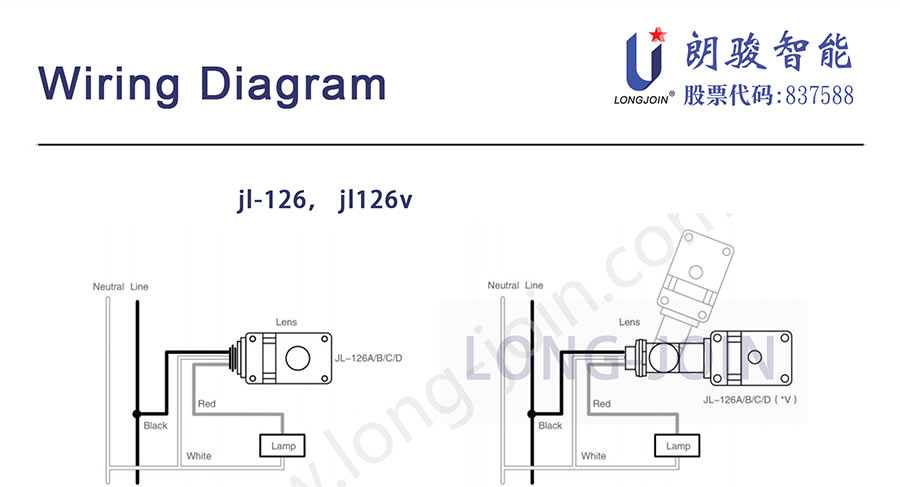

Wire according to the diagram：
Slide the shading strip to have preferred On/Off levels, if necessary.
Do not install the switch with the Photocell facing artificial or reflected light. This will cause the unit to cycle on and off at night

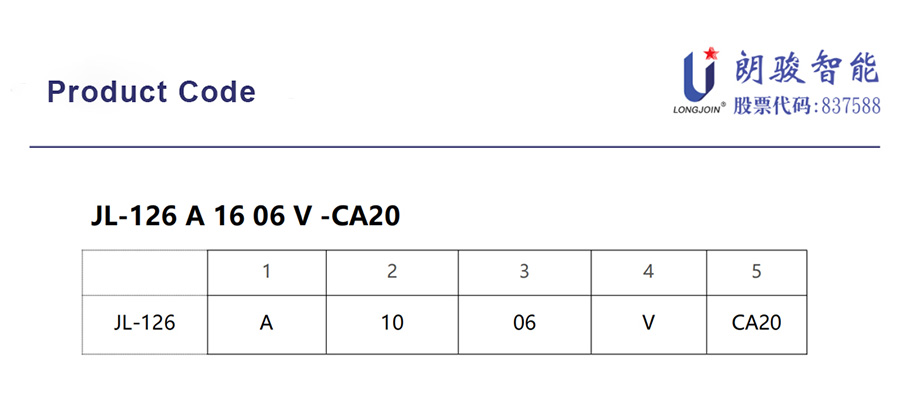

1: A=120VAC
B=220~240VAC
D=277VAC
2: Lead Rating
10=10 AWG, 105ºC rated
3: Lead Length
06 = 6″
Customizable, 4″min
4: V(option) =swivel added
