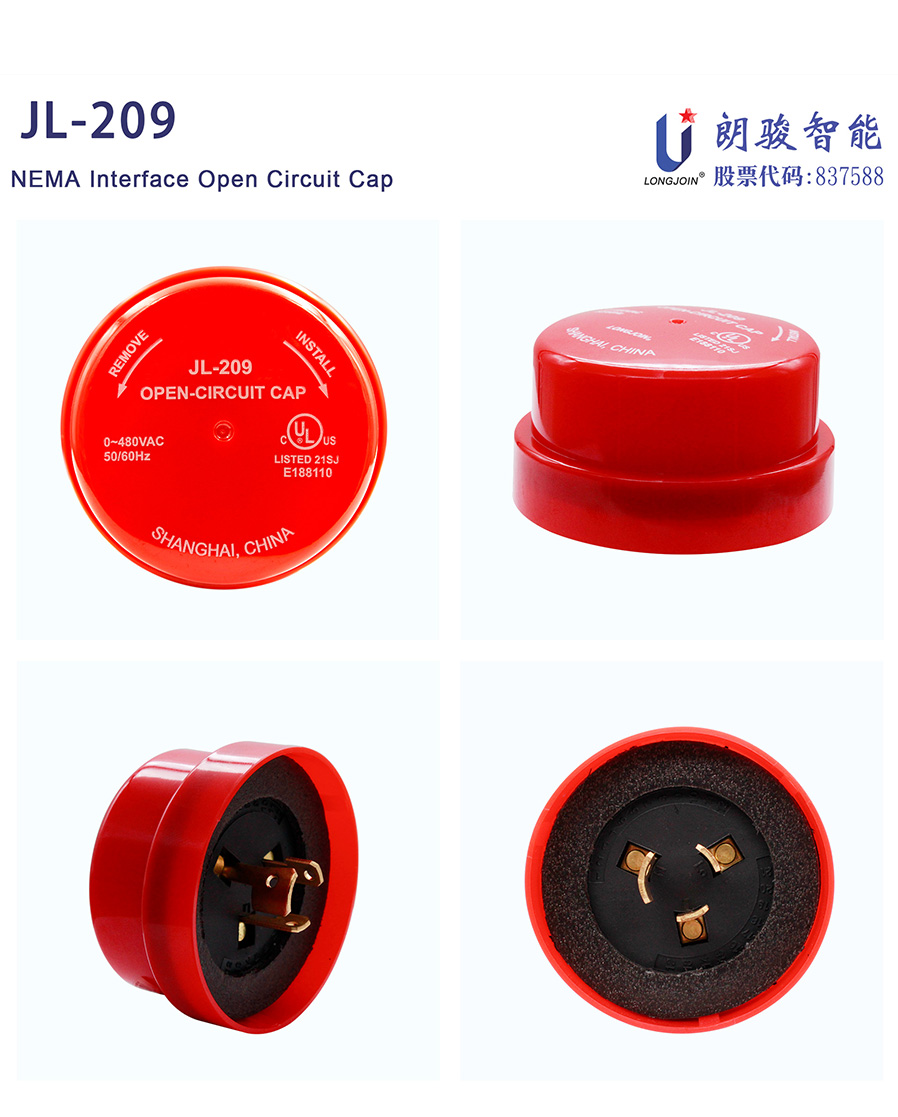

product description
During maintenance or pre-embedding period, a shorting cap can be used to keep the socket disconnected.
ANSI C136.10 locking mechanism.
After installation, it can achieve IP54 protection level.
Polycarbonate shell stabilized against ultraviolet radiation.
High impact resistance with polybutylene terephthalate base.
|
Model No. |
JL-209-IP54 |
|
Rated Voltage |
0-480VAC |
|
Rated Frequency |
50/60Hz |
|
Ambient Temperature |
-40℃ ~ +70℃ |
|
Related Humidity |
96%
|
|
Shell material |
PC |
|
IP level |
IP54 |
Installation Instructions
*disconnect the power.

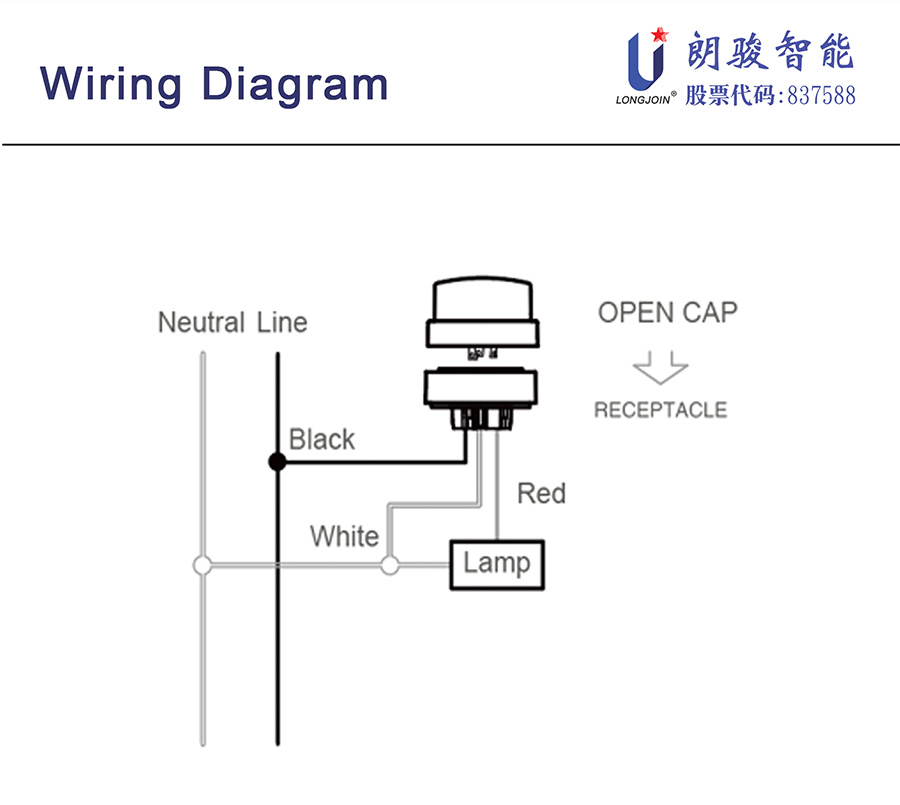

*Connect the socket according to the diagram below.
*Push and rotate the circuit cap clockwise until it locks into the socket.

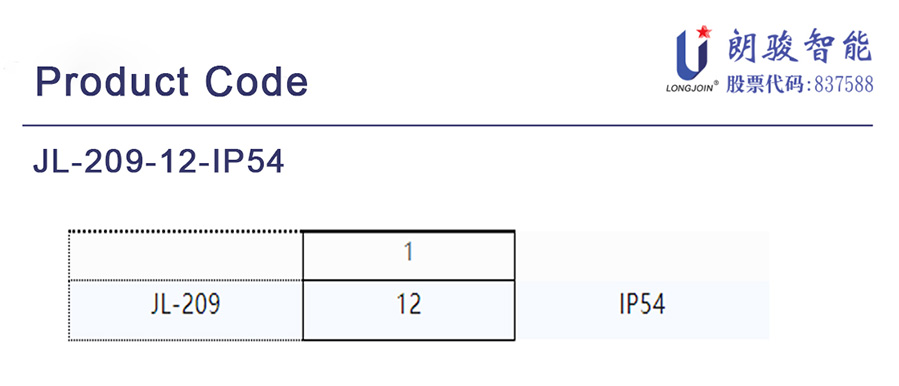

Product Code
1: 12 = MOV 110Joule / 3500Amp
15 = MOV 235Joule / 5000Amp
23 = MOV 460Joule / 7500Amp
null = no pressure-sensitive
