How To Install Photocontrol Receptacle for Led Parking Lot Light?

Surprised! You will find the installation and operation method so easily, you will also like our photo sensor control.

So easily mounting on, this light controller is installed by 3 steps.

1) Point north direction. Keep the north direction mark of the NEMA Receptacle and the north direction of the twist-lock photocell controller housing at the same horizontal position.

photocontroll of point north

2) Push into socket hole position. when the north direction of the twist-lock socket and the connector are kept in the same horizontal direction, please push the photocontrol into the socket hole slot smoothly and vertically.

3) This a one-steps very important. you should pay attention to clockwise and twist lock.


Product type:

ANSI C136.10-1996 Standarnd JL-205C Photocontroller

Twist Lock Photocontrol Receptacle: NEMA 3 PIN Prongs


clockwise twist photocontrol

Photocontrol Receptacle Application Diagram

Autocratically turn on at dusk, automatically turn off at dawn. Sure, you can adjustment photocontroller built in LDR value in accordance with the ambient light level. however, a various categories photocell different property work mode and LDR ( Light dependent resistant) value effect on work day and night.

In order to give full play to the function of the light sensor switch, you should browse about more the characteristics of the product and more the relevant electronic parameters of the product. At the same time, for do not affect the daily work of the light controller, please carefully consider important product parameters, also you can contact me mailbox:

Significant Feature

1)Automatic light activation for unnecessary use of electricity.

2Twist lock photo control receptacle with 2-4 plated pad on top surface, 2 plated pad as JL-240XB model, 4 plated pad as JL-240XA. It’s dimming and signal output to Zigbee wireless remote-control street lighting and collect ambient data.

Twist lock photocontrol Receptacle: JL-240XA-14

Twist Lock Photo Sensor Switch: JL-205C

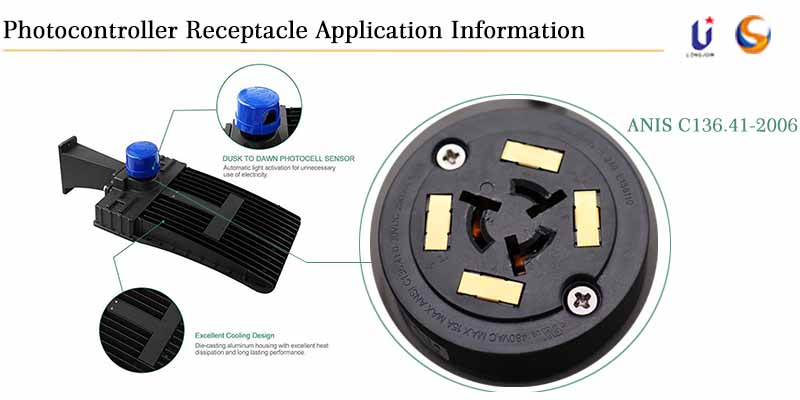

photocontrol receptacle information

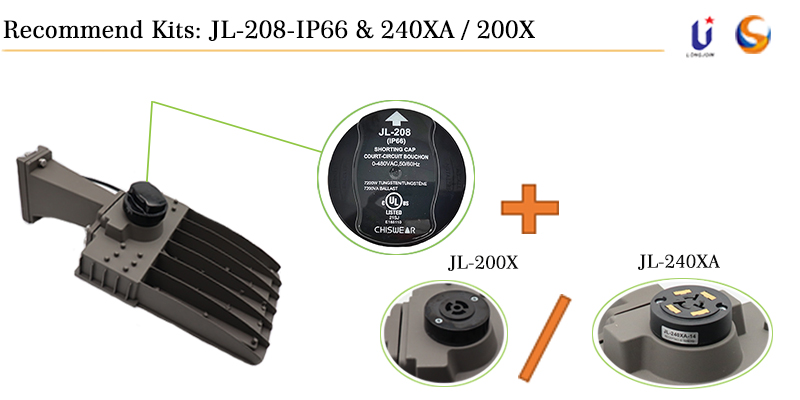

Recommend Products Kits

This JL-208 shorting cap (waterproof cap) is design to replace a photo-control switch on your light fixture for fail on mode or always on. Ideal for street light, parking lot light, garden light and upgrade street light application and other will need public area lighting.


1. Compliant to ANSI C 136.10 3 pin twist lock

2. Sturdy material PC and add anti-UV additive

3. Durable material and lightweight to easy install, and to resist flying objects impact.

4. Mov OptionsJL-208-15, JL-208-23

5. Waterproof Rating Level: IP65, IP66 (2020 years Latest popular style model)

6.   0-480VAC, Maximum 15 amp.


Frequently Recommend Buy Product Kits Advice

If your intention to auto control light on every day, and your budget is limited, and you had considered preparation for further promote smart city lighting project, pls you choose different two lighting solution or if you would want non-regular solved, also you contact me::

recommend photocell kis
