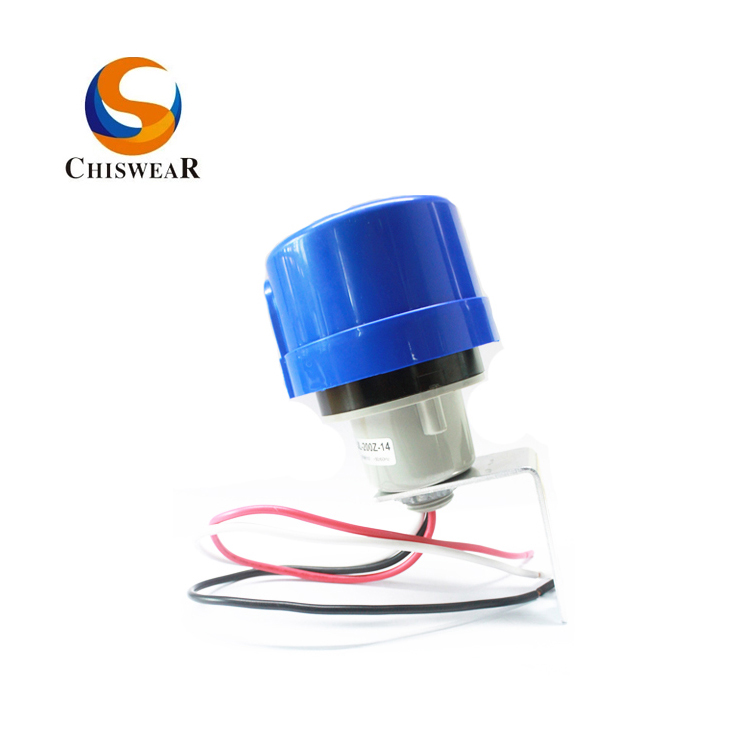

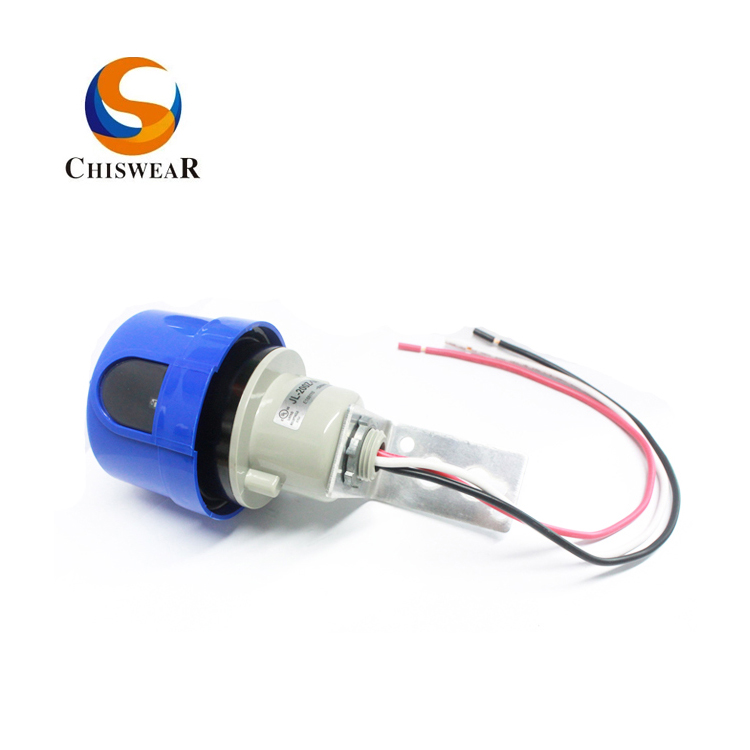

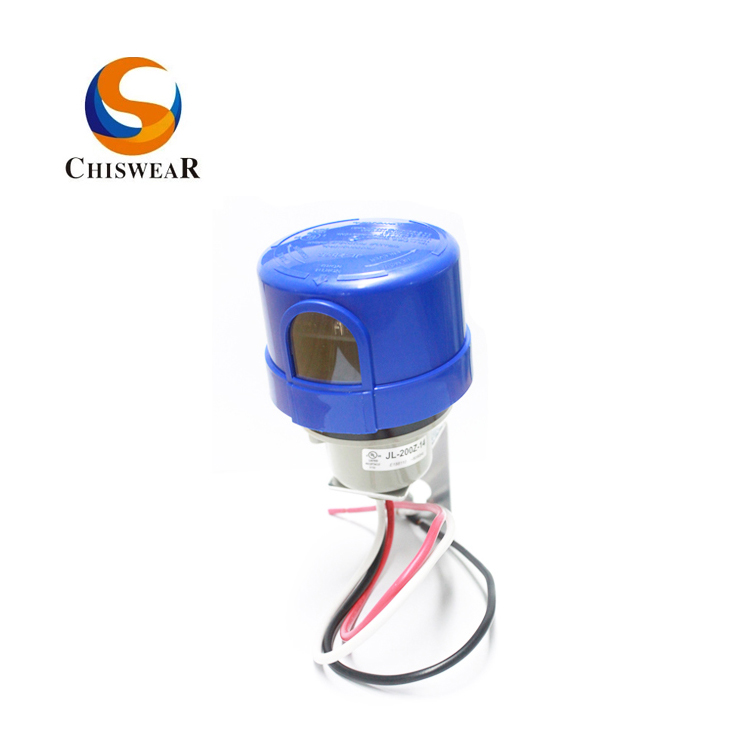

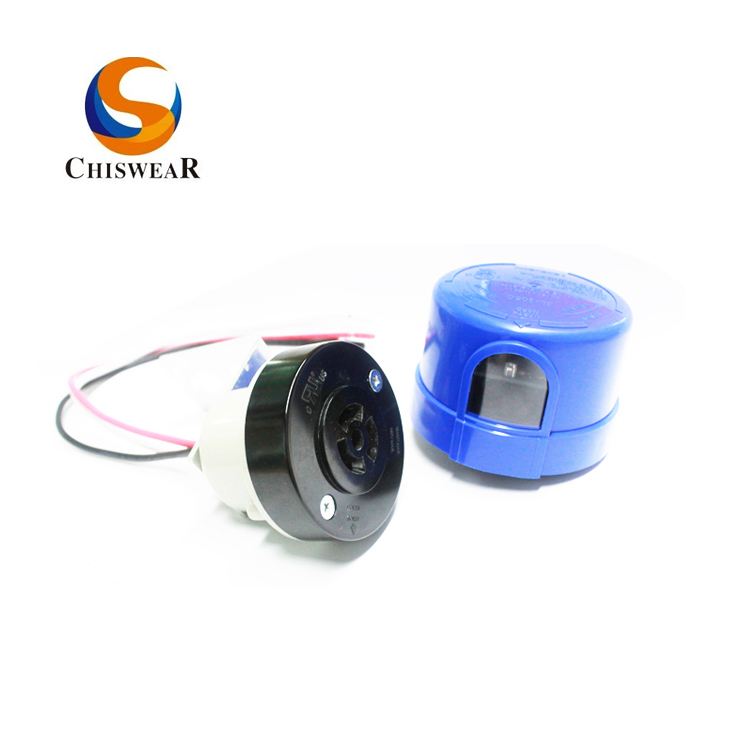

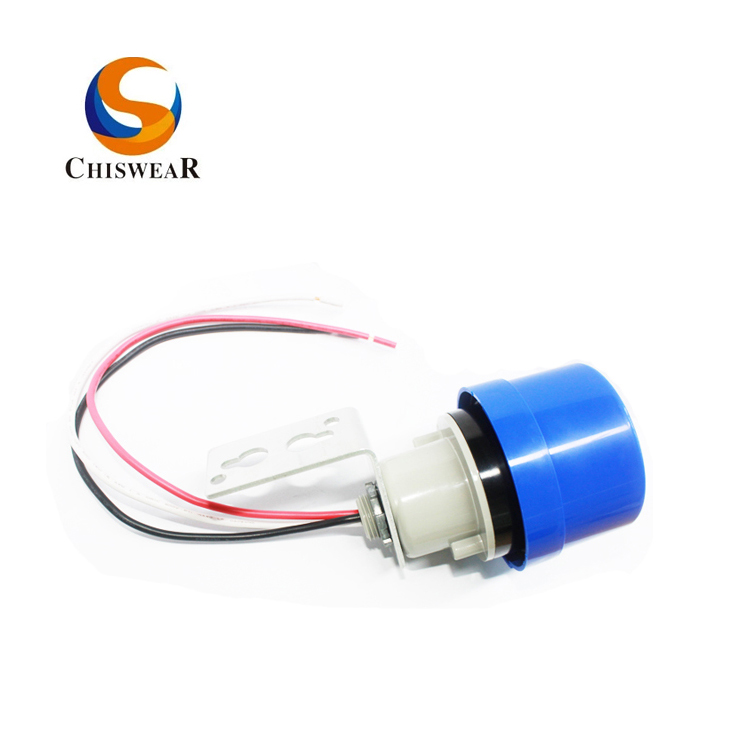

JL-205C&JL-200Z-14 120-277 VAC Twist Lock Photocell Switch Receptacle Kits

Short Description:

1. Product Model : JL-205C&JL-200Z-14

2. Rated Volatage : 110-277 VAC

3. On / OFF Lux Level : 6 Lx on; 50 Lx off

4. IP  Rating :IP54,IP65,IP67

5. Compliant Standard: CE,ROHS,UL


Product Description

Product Specification

Get Detailed Prices

Product Tags

The photo electric switch JL-102 series is applicable to control the street lighting, garden lighting, passage lighting and barn lighting automatically in accordance with the ambient natural lighting level.

Feature

1. 3-10s time delay.

2.  Convenient and easy to install.

3.  Standard Accessories : aluminum wall plated, waterproof Cap (Optional )


  • Previous:
  • Next:

  • JL-205C twist lock photoconroller

    Product Model

    JL-205C

    Rated Voltage

    110-277VAC (customized 12V,24V,48V)

    Applicable Voltage Range

    105-305VAC

    Rated Frequency

     50/60Hz

    Rated Loading

    1000W Tungsten, 1800VA Ballast

    Power Consumption

    1.5VA

    On/Off Level

    6Lx On ;50Lx Off

    Ambient Temp.

    -40℃ ~ +70℃

    Related Humidity

    99%

    Overall Size

    84(Dia.) x 66mm

    Weight Approx.

    85 grs

    JL-200 photocell socket

    Product Model JL-200X JL-200Z
    Applicable Volt Range 0~480VAC
    Rated Frequency 50/60Hz
    Suggested Loading AWG#18: 10Amp; AWG#14: 15Amp
    Ambient Temperature -40℃ ~ +70℃
    Related Humidity 99%
    Overall Dimensions (mm) 65Dia.x38.5 65Dia.x65
    Leads 6” Min.
    Weight Approx. 80g
