Long-join Intelligent Street Light Controller Case

In 2019, Long-join Smart Street Light Controller had realized the street lighting of urban roads and technology industrial parks. The implementation area of the smart street lamp project includes not only Shanghai, Guangzhou, Shenzhen and other regions, but also cities such as Shandong and Zhejiang. For example, the project of Yedao street lamp project in Xichang Road, Haiyan, Jiaxing, Zhejiang, and the preparation of a smart street lamp control project with Shanghai Dongshan Technology Park in Baoshan.

IF you get more about JL-245C,JL-246CG Procuct information, pls click here.

intelligent controller

Shanghai Baoshan Science and Technology Park installed smart street lights

Park street lights are equipped with intelligent light controllers, such as street lights in the park, wall lights in office buildings, and high pole floodlights.

Park Intelligent Lighting Configuration Project Information

1. Street lights: a total of 24 lights, including 14 60W LED street lights, 7 120W LED street lights, and 3 60W LED flood lights.
2. 22 piece fixture in total, including 21 fixture for 7-meter street light poles, 1 fixture for 9-meter floodlight poles, and 30-meter spacing between poles.
3. One main control light controller, 21 single control light controllers and 24 rotating bases.

smart intelligent

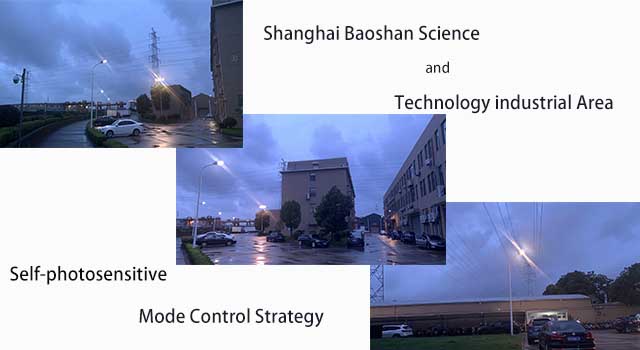

The intelligent light controller have realized the local self-sensitivity mode, and automatically controls the lighting of the lamps and lanterns.

self-photosensitive mode

Smart street lanterns from Yedao Road, Xichang Road, Haiyan, Jiaxing, Zhejiang China

Img1. Wireless Led Street Light Live Diagram

LED street light prpject

Intelligent street lamp function operation diagram

A power consumption line chart of a lamp

midnight dimming

Before midnight dimming (2 am), the energy consumption of normal lamps is 100%. Due to the existence of lighting compensation, the energy consumption is saved by 32%, which is equivalent to 68% of the original.

After midnight dimming (2 am), the lamp energy consumption is 30%. After 2-3 AM, keep the lighting level of the lamp continuous.

before 2AM dimming

From 4 to 6 am at dawn, from 30% of the power consumption of the lamps and lanterns, to the active recovery to 68% of the normal value.

after 4am dimming

Img2 Haiyan XX road lights implement intelligent monitoring

Relative information: Installation, carton lamp light controller packaging, single lamp intelligent light controller to control LED lights.

smart street light project
