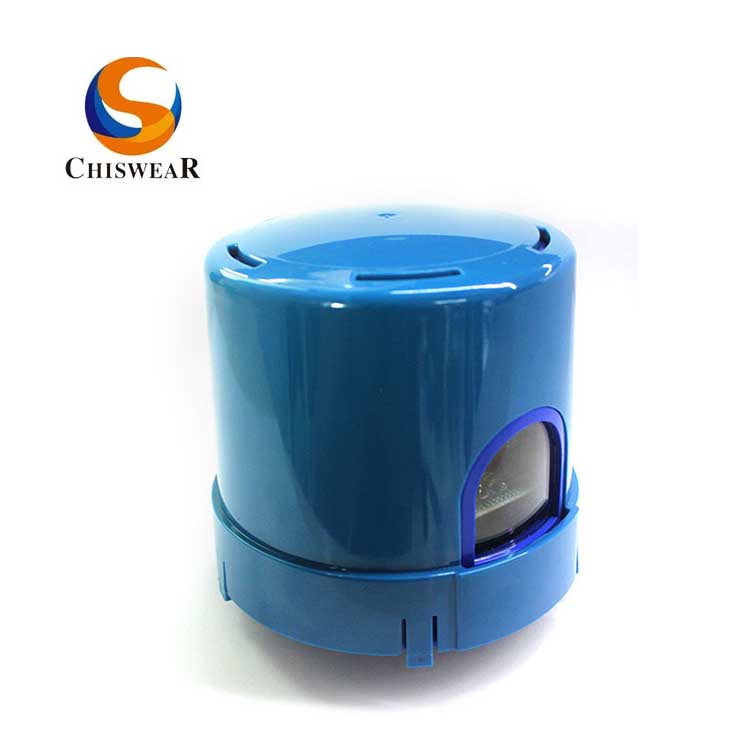

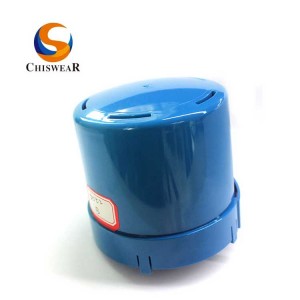

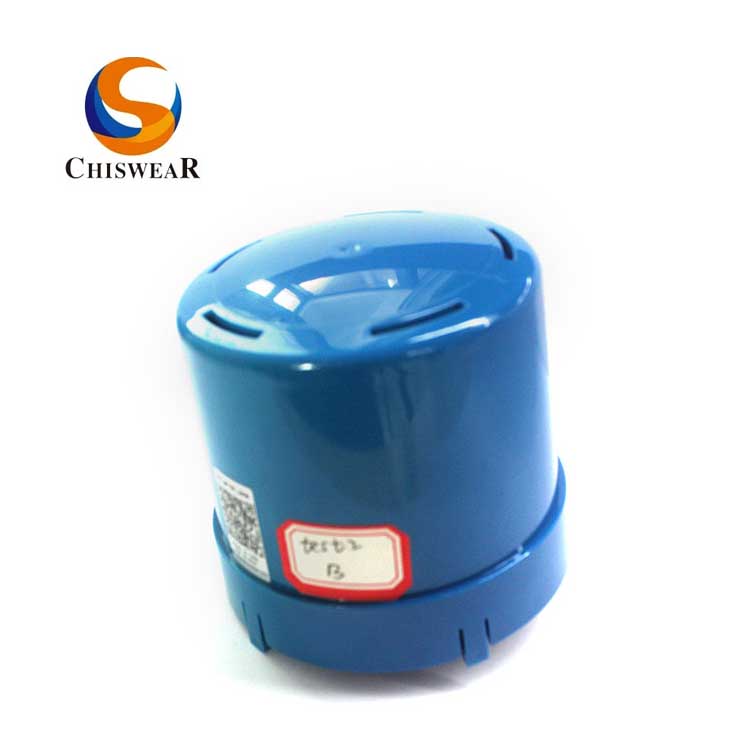

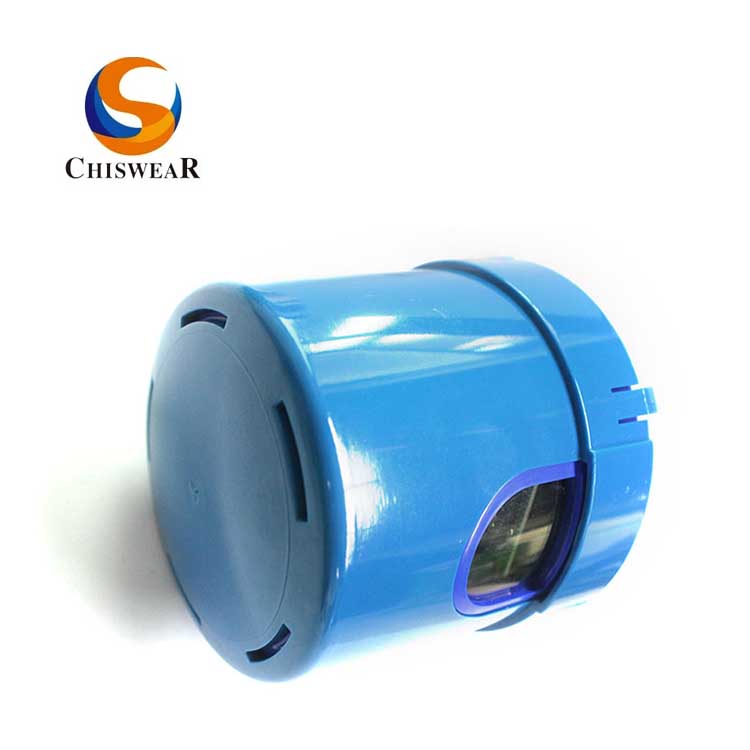

JL-245C Smart Remote Wireless Photocell Switch

Short Description:

1. Product Model : JL-245C

2. IP Rating: IP65/IP67

3. Wireless : Zigbee

4. Dimming Output: 0-10V/ PWM


Product Description

Product Specification

Matching Kits

Get Detailed Prices

Product Tags

JL-245 & JL-246 series of intelligent light controller can apply to single control application or system control application. Such as roads, exhibitions, schools, shopping malls, supermarkets, factories, parks and so on. All three models can operate as stand-alone lamp controls with local strategies.

Thus all single-control light controllers JL-245C above the standard NEMA interface of the luminaire. The internal program of the controller can execute the light control strategy independently. Such as switching, dimming, midnight dimming, light attenuation compensation, metering, abnormal protection and LED status indication.

You can also use M JL-245C and a JL-246CW or JL-246CG to compose a light control Zigbee network , then use N *Zigbee network to compose a larger network.

Feature

1.Convenient  mounted way:  by the wireless automatic connecting;

2.Remote control: All the operating parameters of the lamp controller can be freely set on the WEB interface.

2.Safe and reliable:Built-in abnormal protection, which can effectively protect the controller to avoid equipment damage.

3.Maintenance efficient:Automatic fault reporting function allows managers to get the fault situation and timely replacement.

3.Green and energy saving:Controller is designed by environmentally friendly low-power device materials, and intelligent control more energy-efficient.

WAN Networking Control Application

Master controller: JL-246CG

Auxiliary controller: JL-245C

245C smart photocell

Application Scenes for WAN Networking Control

Networking Description

1. JL-245C automatically connected to the JL-246CG through ZigBee network when power on.

2.M JL-245C and a JL-246CG composed of a Zigbee network,N ZigBee network composed of the entire lighting control network,M suggested≤50.

3.N JL-246CW automatically connected to the cloud server through 2G/3G/4G/NB-IOT/LoRa/Sigfox network.

4. Users can remote control all devices through the computer terminal’s WEB interface.

Available Provide Solution project

    Single light controller or network control

Project

Configuration

Single lights each perform

with local strategies

M*JL-254C

Network control(LAN)

N*(M*JL-245C + 1*JL-246CW)、UM7000 system

Network control(WAN)

N*(M*JL-245C + 1*JL-246CG)、UM9000 system

Note:

1. M is the quantity of single light controller,recommend<=50.

2. M*JL-245C + 1*JL-246 Make up a ZigBee network

3. N is the quantity of ZigBee network

4. UM series are our smart lighting management system

Details as follows:

Number

Definition

Application

9000

Smart road light management system

outdoor

7000

Smart park lighting management system

Indoor/outdoor

5000

Smart business lighting management system

Indoor/outdoor

3000

Smart office lighting management system

Outdoor

1000

Smart home lighting management system

Indoor/outdoor




  • Previous:
  • Next:

  • Product Model JL-245C
    Overall Size(mm) 83.2*85
    Rated Voltage 100-277VAC
    Applicable Voltage Range 85-305VAC
    Power Consumption dynamic peak: 2.4W; static:1.2W
    Dimming output 0-10VDC; PWM(10KV,1KHZ)
    Wireless ZigBee
    Surge Arrester Protection (MOV) IEC61000-4-5, Class A Common mode: 20KV/10KADeferential Model:7KV/3.5KA
    Loading capacity 9A max
    IP Protection IP65,IP66,IP67
    Flammability Level UL94-V0
    Altitude 4000m max
    Material Base material:PBTDome enclosure:PC
    Interface model NEMA/ANSI C136.41
    Certification CE,ROHS,ULFCC,RED

    Zigbee Mode

    Network type MESH
    Standard IEEE802.15.4
    Communication Distance(Point-Point) Min 800m (Visual distance)
    Modulation O-QPSK
    Frequency 2.4Ghz(2400—2483.5)
    Antenna Type SMT Ceramic
    Frequency Tolerance <±40ppm
    Transmit Power 18dBm~20dBm
    Throughput Max 250kbps
    Channel Number 16
    Antenna Quantity 1

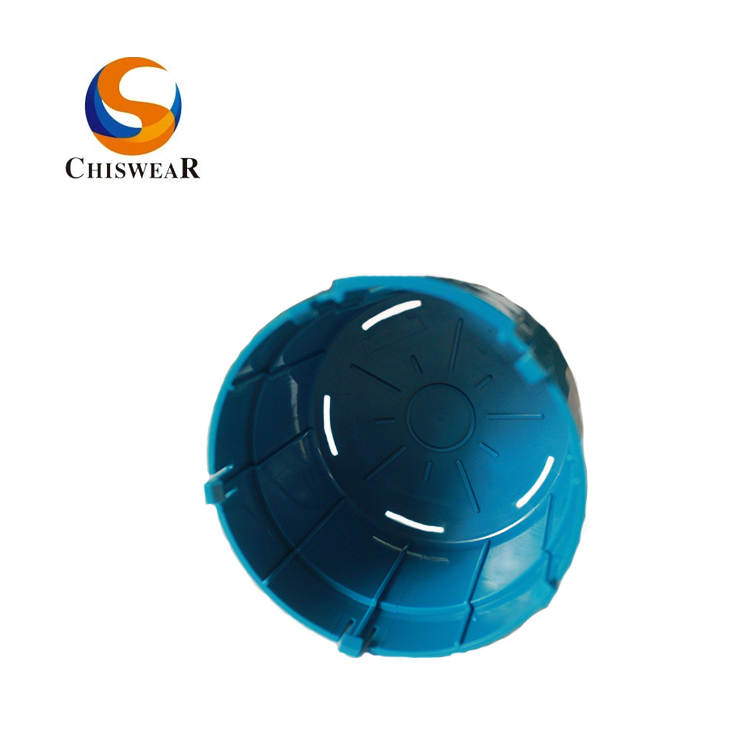

    YS800-6fitting material
