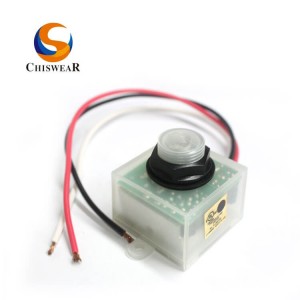

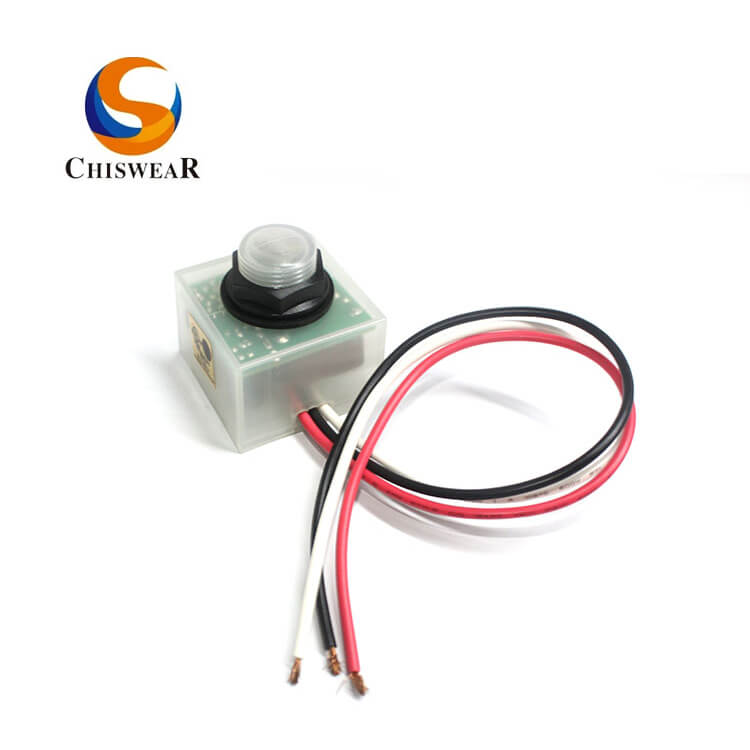

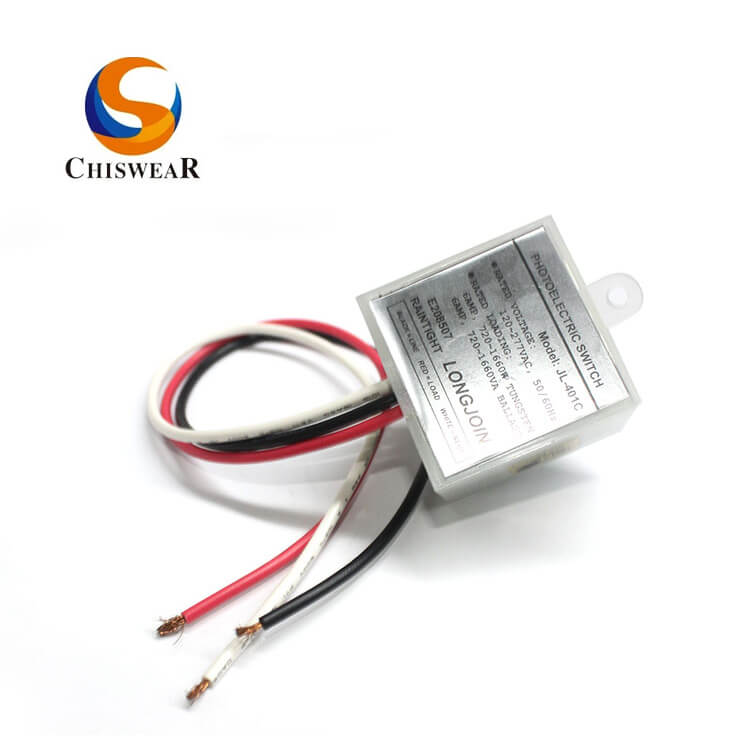

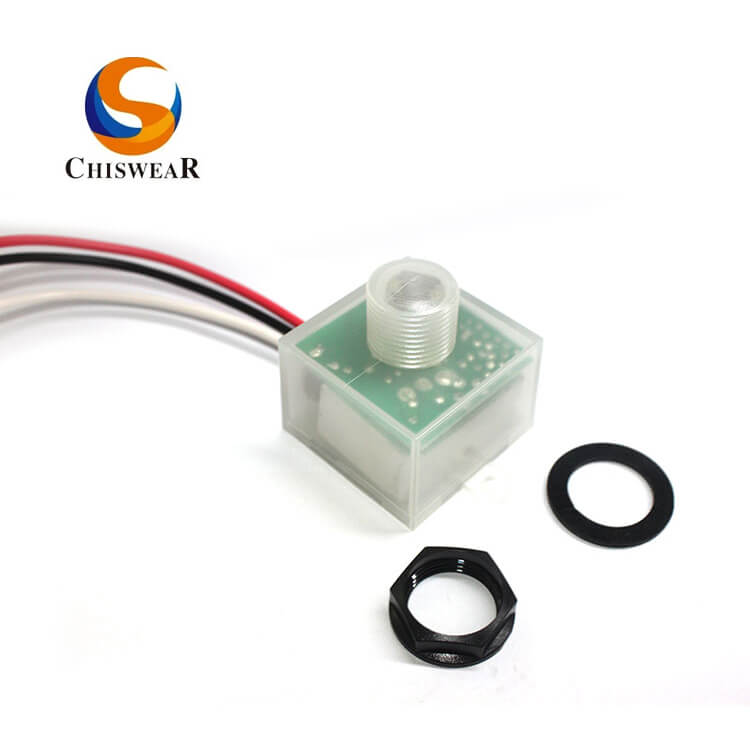

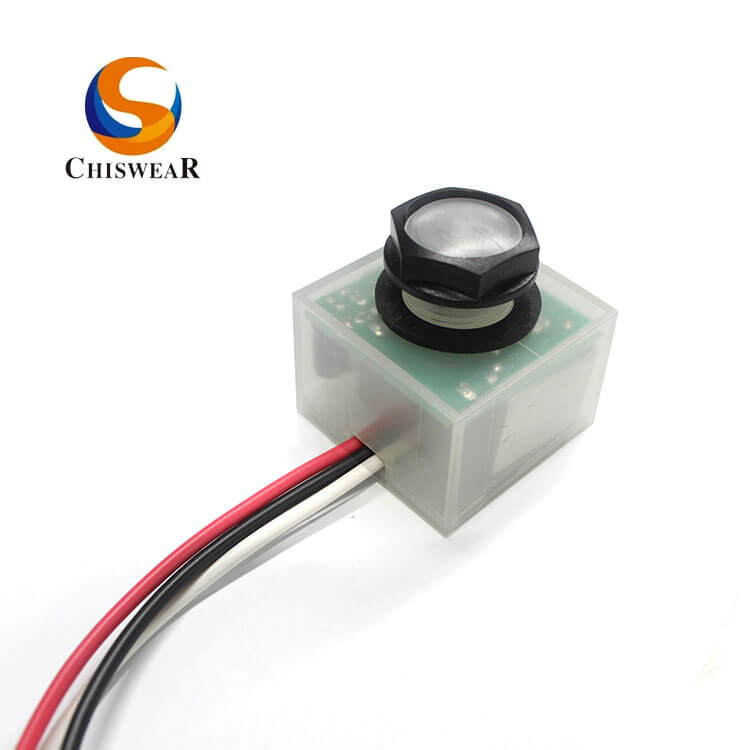

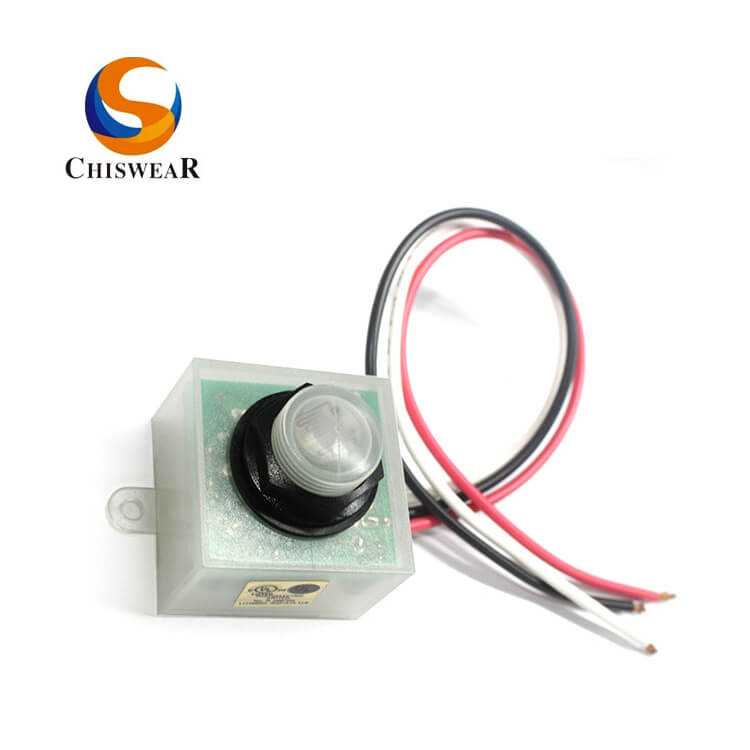

120V 3 Wire In Photocell Sensor JL-401C

Short Description:

1. Product Model: JL-401C
2. Rated Voltage: 120-277 VAC
3. On / OFF Lux Level: 10-20 Lx on; 25-35 Lx off
4. IP Rating: IP54
5. Compliant Standard: CE, ROHS, UL


Product Description

Product Specification

Get Detailed Prices

Product Tags

The photoelectric switch JL-401 is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.
Feature
1. 15-30s time delay.
2. 3 wire in.
3. Avoid mis-operation due to spotlight or lightning during the night time.


  • Previous:
  • Next:

  • Product Model

    JL-401C

    Rated Voltage

    110-120VAC

    Rated Frequency

    50-60Hz

    Related Humidity

    -40℃-70℃

    Rated Loading

    6AMP max

    Power Consumption

    5W Max

    Operate level

    10-20Lx on, 25-35Lx off

    Overall dimensions(mm)

    45(L)*45(W)*30(H

    Leads lengths

    180mm or customer request
