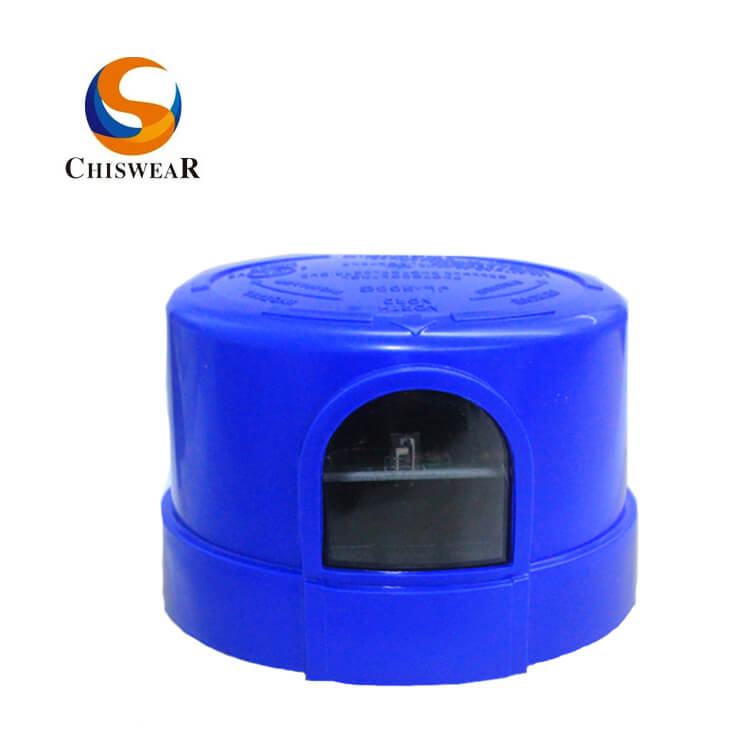

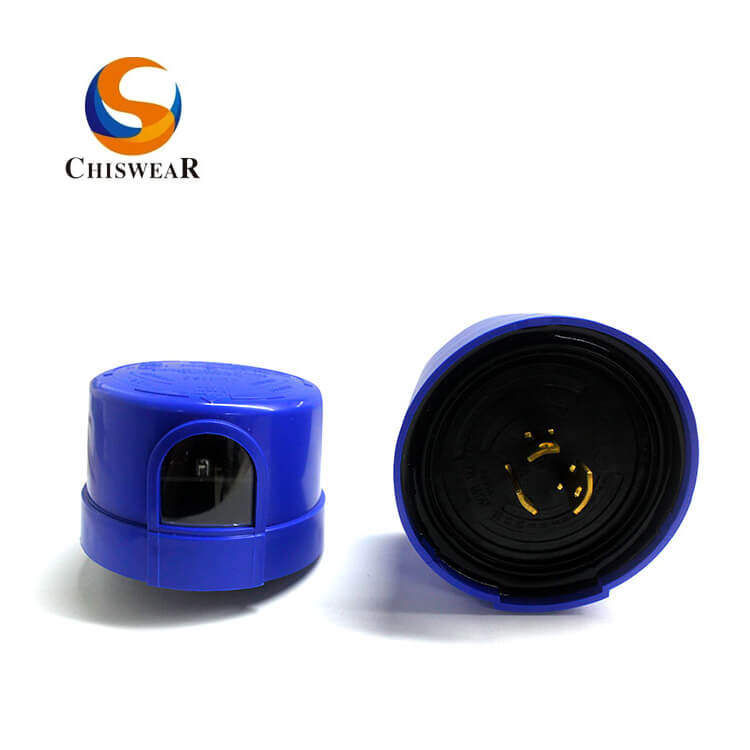

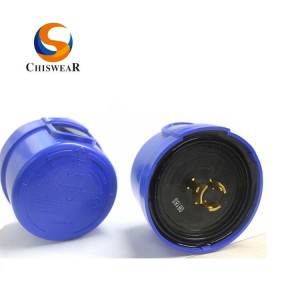

The photocontroller JL-205 series is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.
Feature

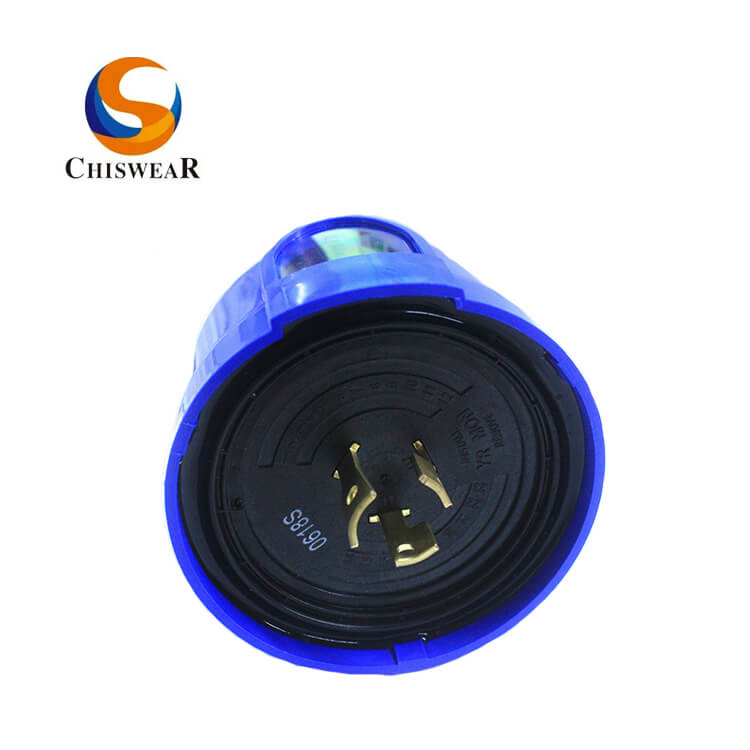

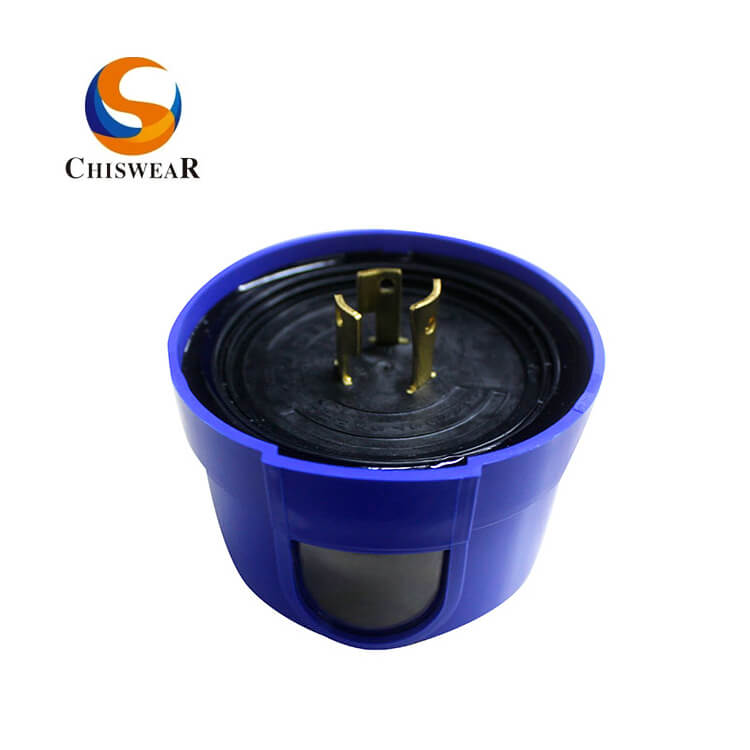

1. ANSI C136.10-1996 Twist Lock.
2. Time Delay of 3-20 seconds.
3. Surge Arrester Built-In.
4. Fail-On Mode.
Product Model |
JL-205C |
Rated Voltage |
110-277VAC (customized 12V,24V,48V) |
Applicable Voltage Range |
105-305VAC |
Rated Frequency |
50/60Hz |
Rated Loading |
1000W Tungsten, 1800VA Ballast |
Power Consumption |
1.5VA |
On/Off Level |
6Lx On ;50Lx Off |
Ambient Temp. |
-40℃ ~ +70℃ |
Related Humidity |
99% |
Overall Size |
84(Dia.) x 66mm |
Weight Approx. |
85 grs |
-
