NEMA 7 PIN Photocell Receptacle JL-240XA
Get Detailed Prices
All the JL-240 series photocontrol receptacles were designed for the lanterns those intended to have an ANSI C136.10-2006 receptacle to fit a twist-lock photocontrol. This series conform newly published ANSI C136.41-2013 to allow a LED lamp multi-controlled through the receptacle.

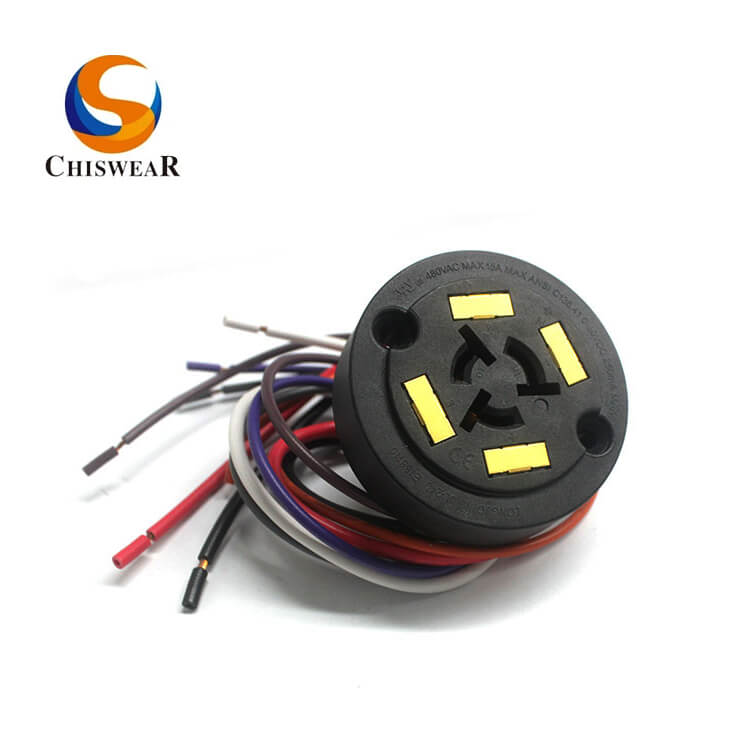

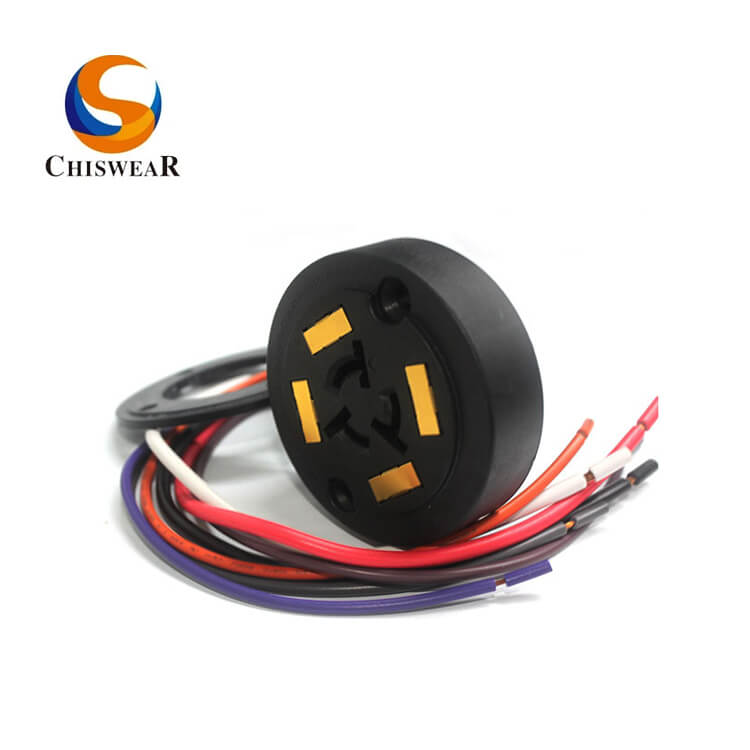

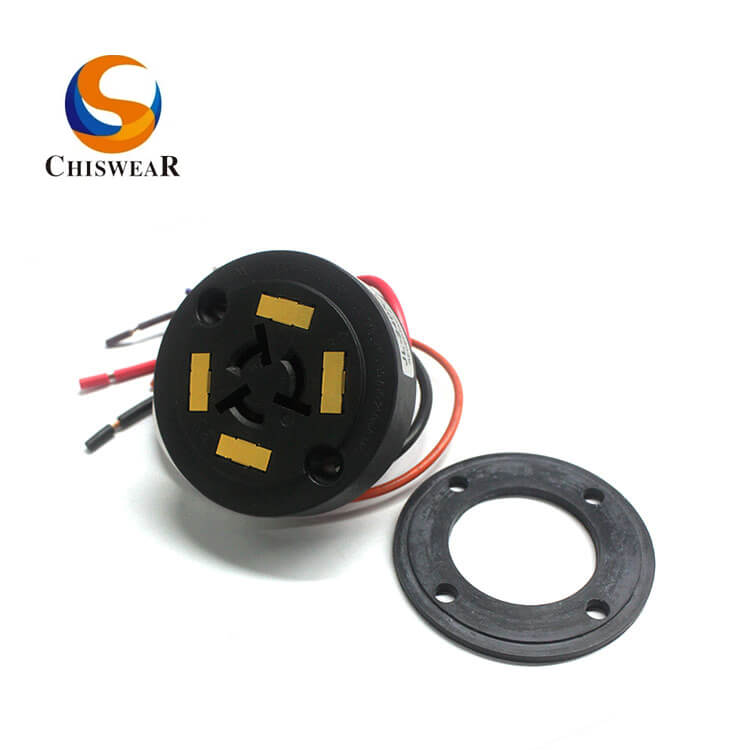

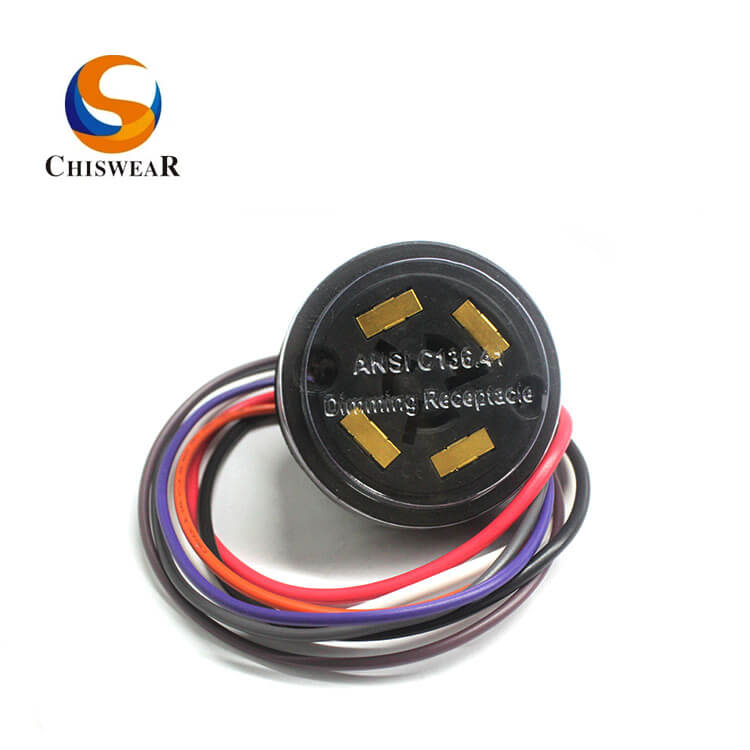

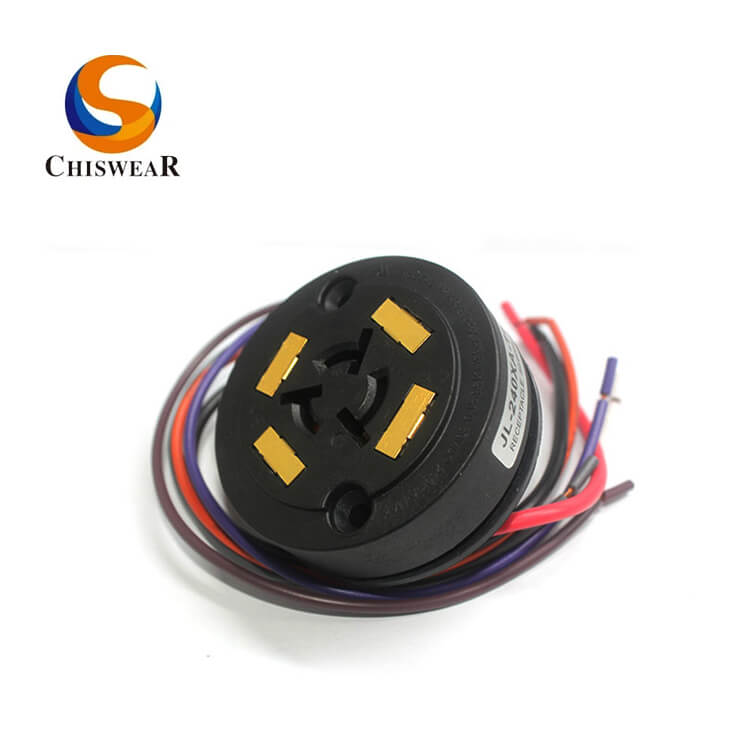

1. JL-240XA offers 4 gold-plated low voltage pads on the top surface to fit photocontrol has ANSI C136.41 conforming spring contacts, and offers male quick connectors at rear back for signal connection.
(JL-240XB offers 2 gold-plated low voltage pads on the top surface to fit photocontrol has ANSI C136.41 conforming spring contacts, and offers male quick connectors at rear back for signal connection)
2. 360 degree rotation limiting feature to conform ANSI C136.10 requirements.
3. Both JL-240X and JL-240Y have been recognized, and JL-200Z14 has been listed by UL to applicable US and Canadian safety standards, under their file E188110, Vol.1 & Vol.2.
|Applicable Volt Range||0~480VAC|
|Power Loading||AWG#14: 15Amp max. / AWG#16: 10Amp max.|
|Optional Signal Loading||AWG#18: 30VDC, 0.25Amp max|
|Ambient Temperature||-40℃ ~ +70℃|
|Overall Dimensions (mm)||65Dia.x 40 65Dia.x 67|
|Rear Cover||R option|
|Leads||6″ Min. (See Ordering Information)|
