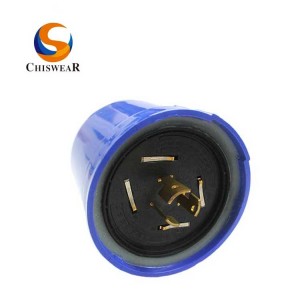

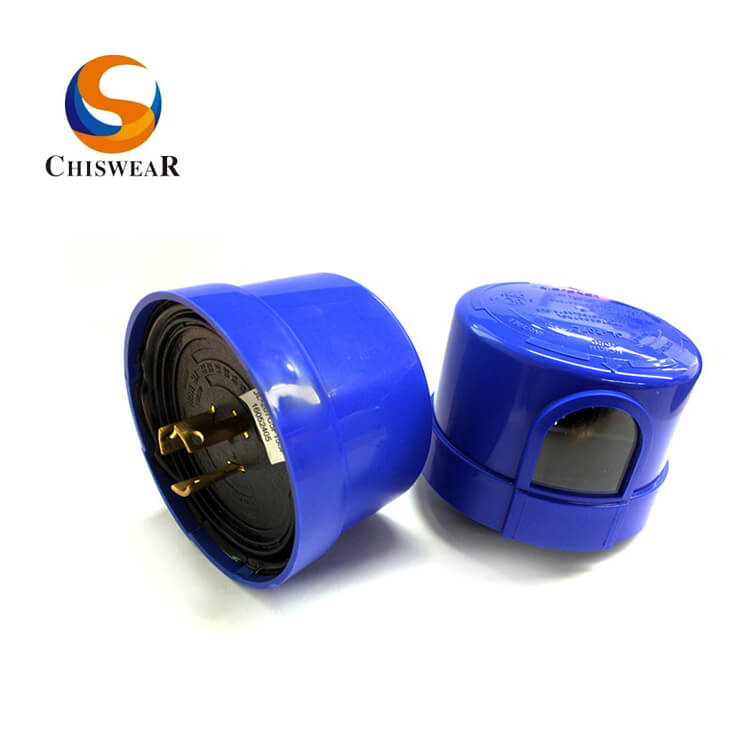

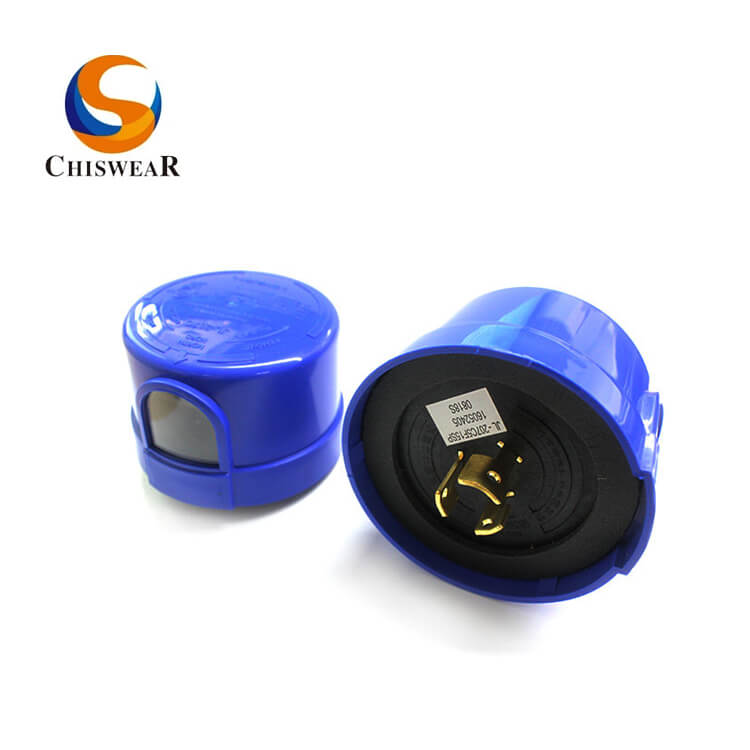

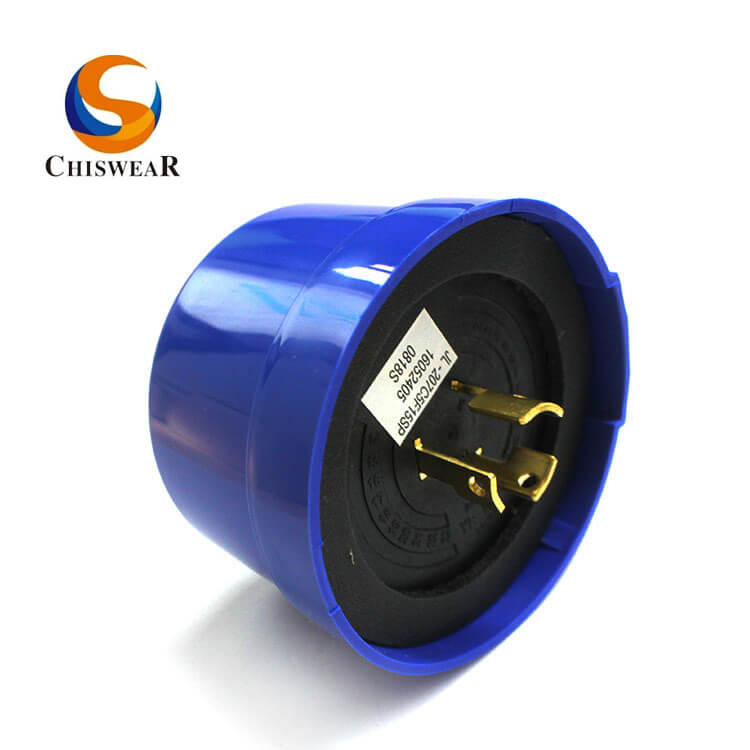

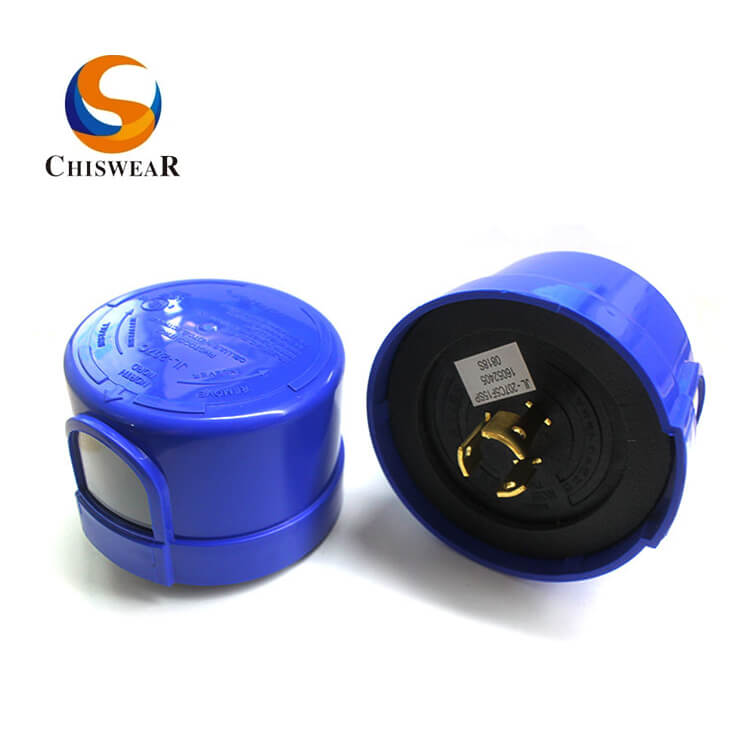

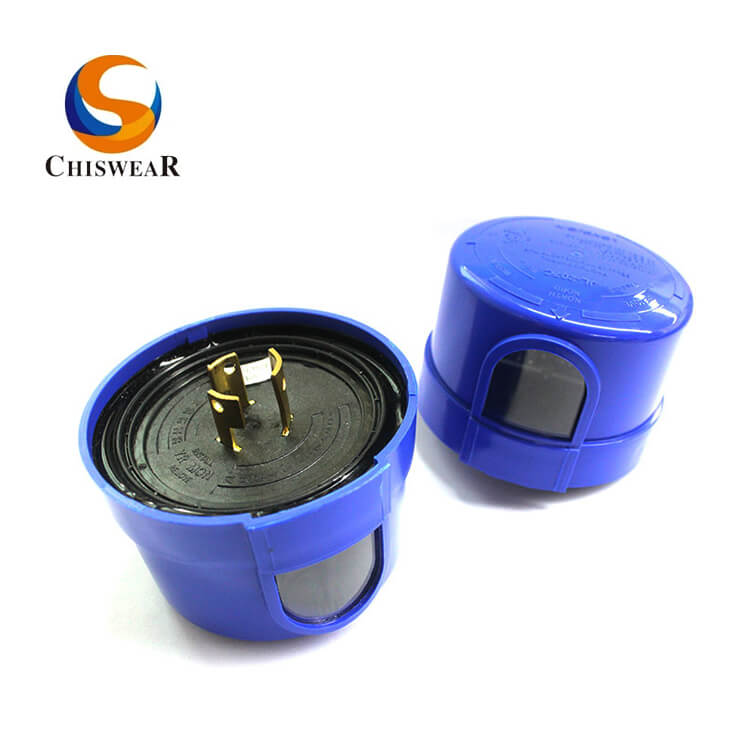

120-277V Twist Lock Photocell Light Sensor Switch JL-207C

Short Description:

1. Product Model: JL-207C
2. Rated Voltage: 105-305 VAC
3. On / OFF Lux Level: 16 Lx on; 24 Lx off
4. IP Rating: IP54, IP65, IP67
5. Compliant Standard: CE, ROHS, UL


Product Description

Product Specification

Get Detailed Prices

Product Tags

The model JL-207 series photocell sensor is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.

Feature

1. Designed with electronic circuits with sensor of photodiode and a surge arrester (MOV)
2. 3-5 seconds time delay response for easy-to-test and Avoid sudden accidents(spotlight or lightning) affecting normal lighting at night.
3. Wide voltage range(105-305VAC) for customer applications under almost power supplies.
4. Mid-night turning-off feature for saving more energy. After about 6 hours turned on the loading lamp, it switches off the lamp until the next dusk.
5. Twist lock terminals meeting the requirements of ANSI C136.10-1996 Standard for Plug-In, Locking Type Photocontrols for UL733 Certificated.


  • Previous:
  • Next:

  • Product Model

    JL-207C

    Rated Voltage

    110-277VAC

    Applicable Voltage Range

    105-305VAC

    Rated Frequency

    50/60Hz

    Rated Loading

    1000W Tungsten;1800VA Ballast

    Power Consumption

    0.5W [STD] / 0.9W [HP]

    On/Off Level

    16Lx On 24Lx Off

    Ambient Temp.

    -40℃ ~ +70℃

    Related Humidity

    99%

    Overall Size

    84(Dia.) x 66mm

    Weight Approx.

    110g [STD] / 125g [HP]
