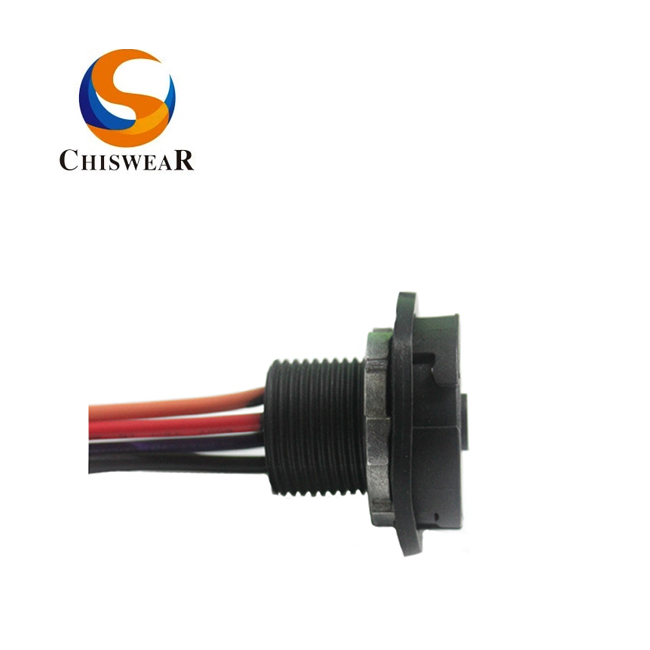

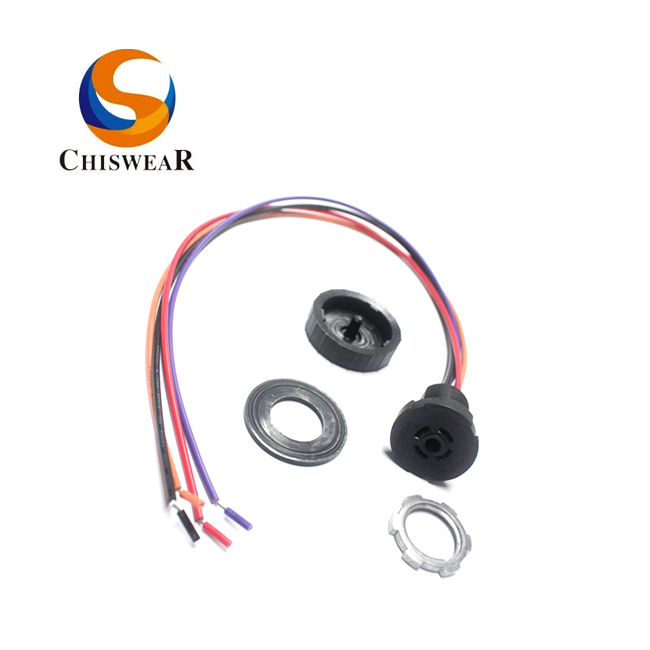

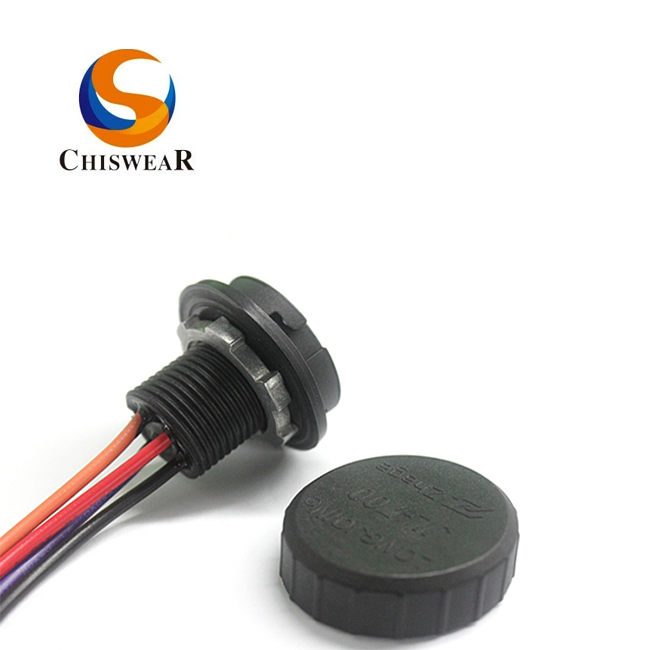

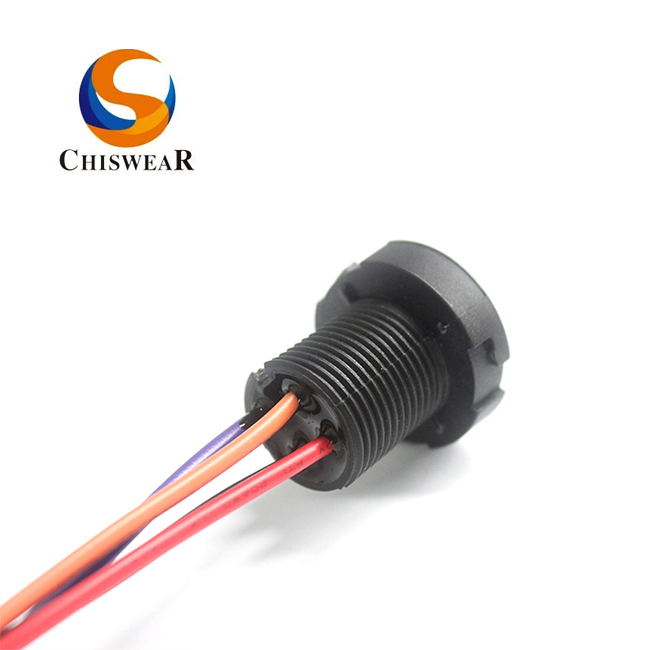

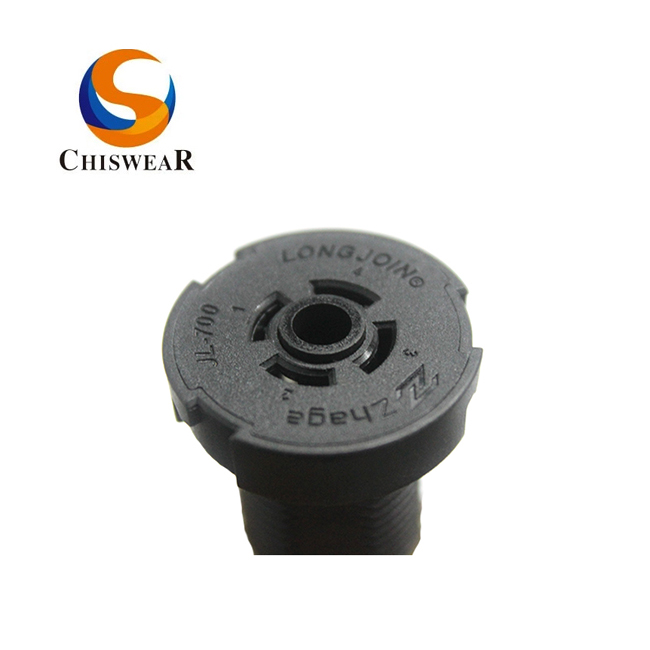

Zhaga Book18 4 PIN Zhaga Receptacle JL-700

Short Description:

1. Product Model: JL-700
2. Rated Voltage: 0-30V
3. Material: PBT and Add UV Stabilizer
4. Leads Gauge: #20
5. IP Rating: IP66


Product Description

Product Specification

Get Detailed Prices

Product Tags

The ZHAGA series products, including JL-700 receptacle and accessories, to offer a ZHAGA Book 18 regulated interface for easier way t o develop standard devices used for roadway lighting , area lighting, or occupancy lighting, etc.

These devices can be offered in DALI 2.0 protocol (Pin 2-3) or 0-10V dimming (per request) features, based on fixture arrangement.
Feature
1. Standardized interface defined in Zhaga Book 18.
2. Compact size allowing greater fexibility in luminaire design.
3. Advanced sealing to achieve IP66 with no mounting screws.
4. Scalable solution allows use of Ø40mm photocell and a Ø80mm central management system with the same connection interface.
5. Flexible mounting position, upwards, downwards and sideways facing.
6. Integrated single gasket that seals to both luminaire and module that minimizes assembly time.


  • Previous:
  • Next:

  • Product Model

    JL-700

    Mounting

    M20X1.5 thread

    Height above luminaire

    10mm

    Wires

    AWM1015, 20AWG, 6″(120mm)

    IP Grade

    IP66

    Receptacle Diameter

    Ø30mm

    Gasket Diameter

    Ø36.5mm

    Thread length

    18.5mm

    Contacts rating

    1.5A, 30V (24V typical)

    Surge test

    Meets 10kV common mode surge test

    Capable

    Hot pluggable capable

    Contacts

    4 pole contacts

    Port 1 (Brown)

    24Vdc

    Port 2 (Gray)

    DALI (or DALI based protocol) –/common ground

    Port 3 (Blue)

    DALI (or DALI based protocol) +

    Port 4 (Black)

    General I/O
