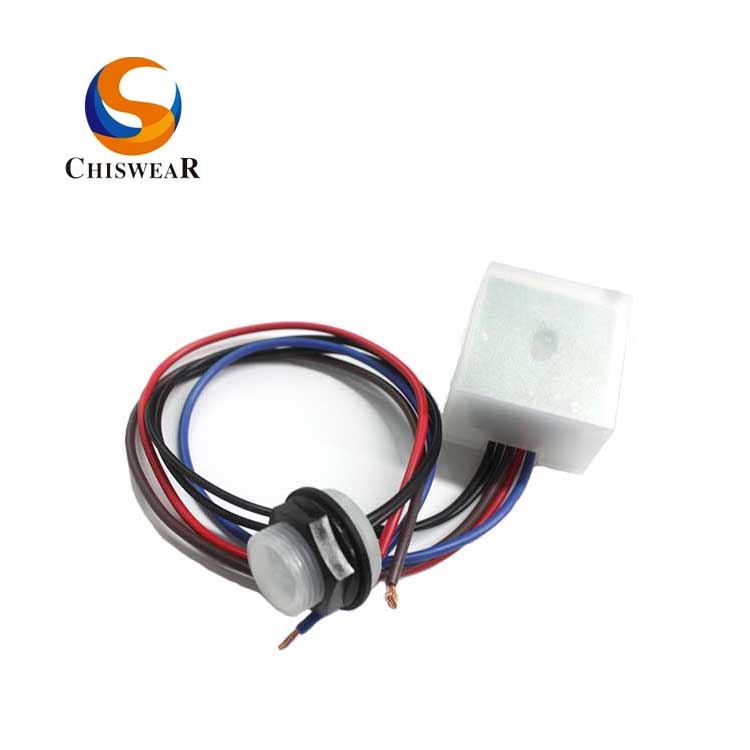

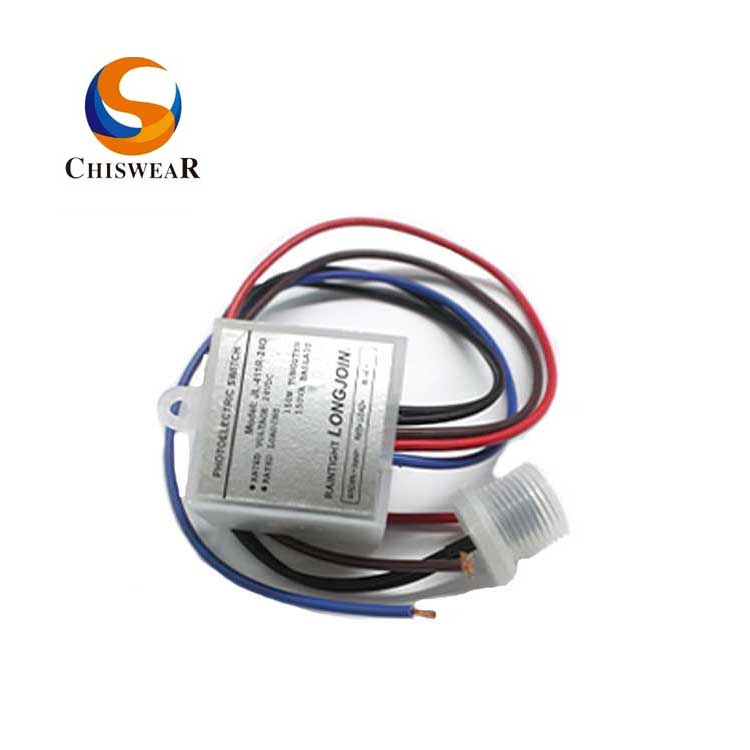

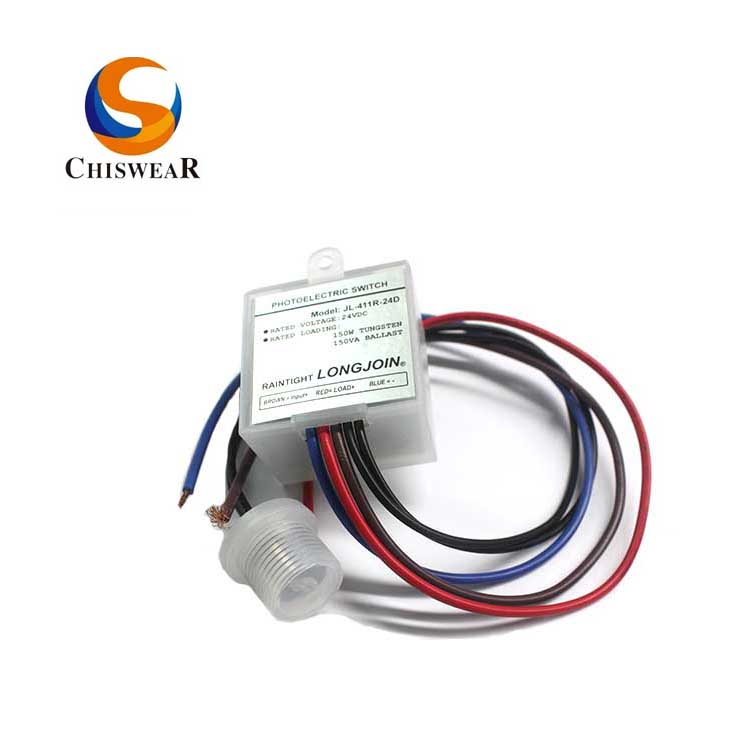

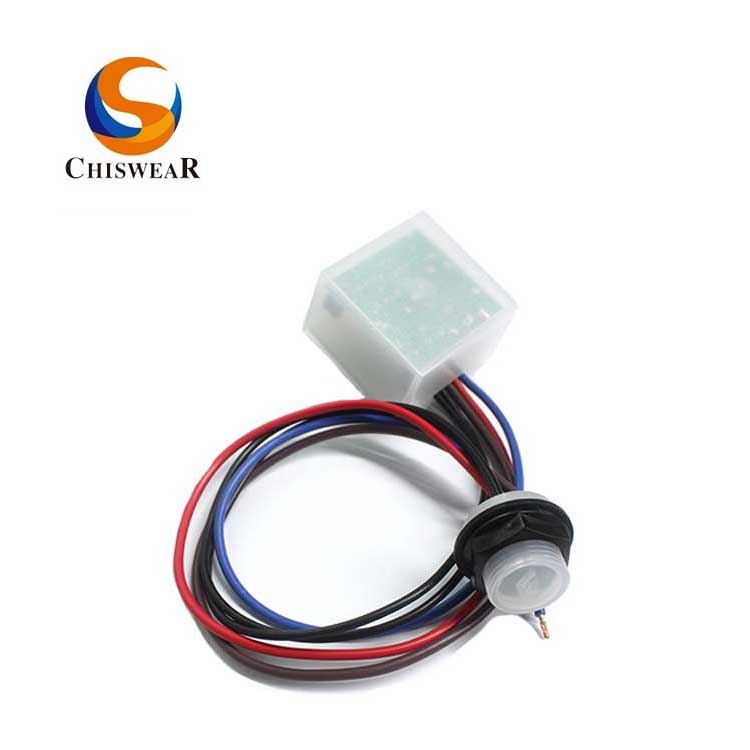

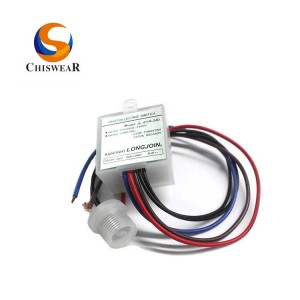

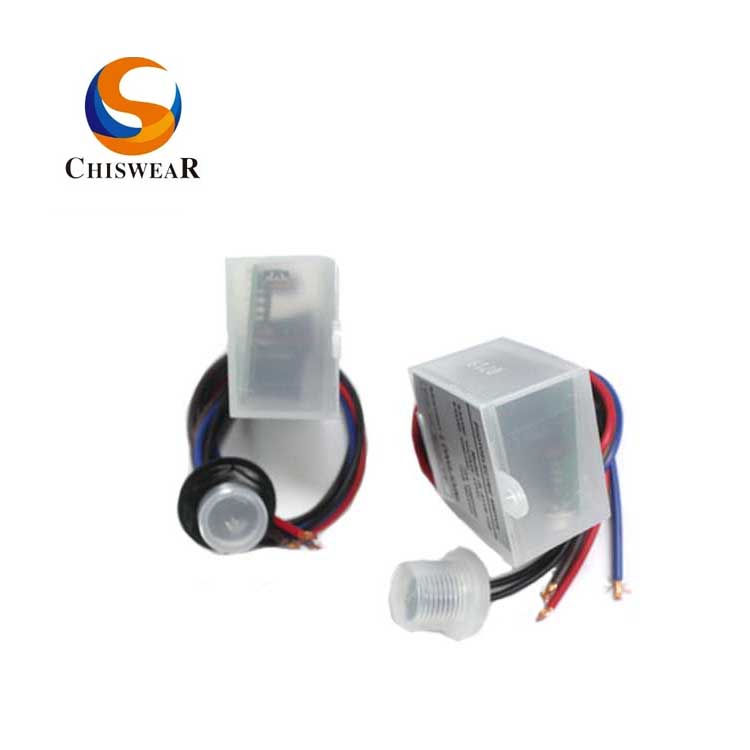

JL-411R 24 Volt DC Photocell Switch from Shanghai Chiswear

Short Description:

1. Product Model : JL-411R-24D

2. Rated Voltage : 24VDC

3. On / OFF Lux Level : 5-15 Lx 20-80Lx

4. IP  Rating : IP54


Product Description

Product Specification

Get Detailed Prices

Product Tags

The photoelectric switch JL-411 is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.

Feature

1. 10 s time delay.

2. JL-411R provides a wide voltage, or customer request.

3. Preset 3-10 seconds time-delay might avoid mis-operation due to spotlight or lightning during the night time.

4. Wiring instruction

  Black lines  (+) input

  Red  lines (-) output

  White (1) [input, output]

Eg:JL-411R-12DC Electric Circuits Diagra

24VDC-2


  • Previous:
  • Next:

  • Product Model

    JL-411R-24D

    Rated Voltage

    24VDC

    Rated Frequency

    50-60Hz

    Rated Loading

    150W

    Power Consumption

    1.0 W

    Operate level

    5-15Lx on, 20-80Lx off

    Overall Dimension

    54.5(L) x 29(W) x 44(H)mm

    Leads length

    180mm or Customer request (AWG#18)
