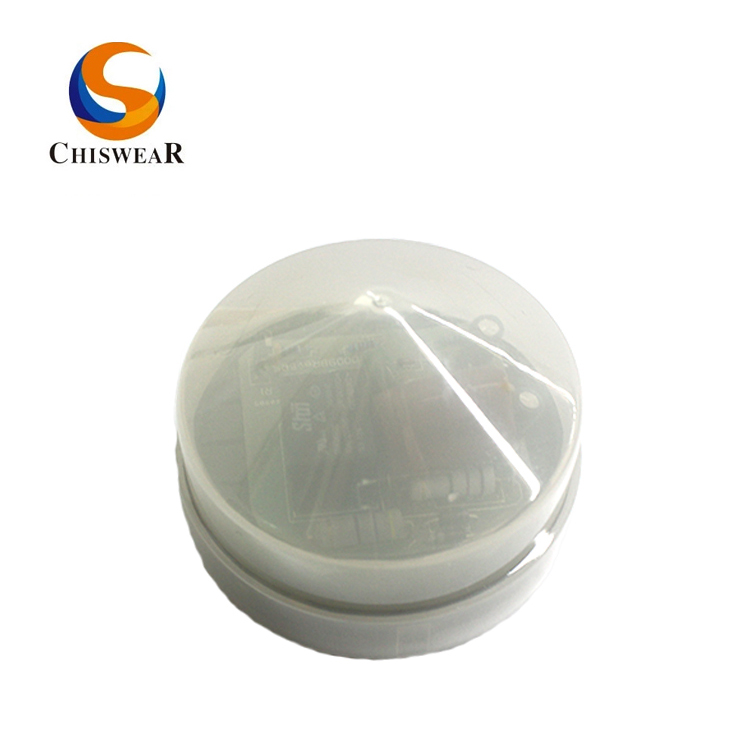

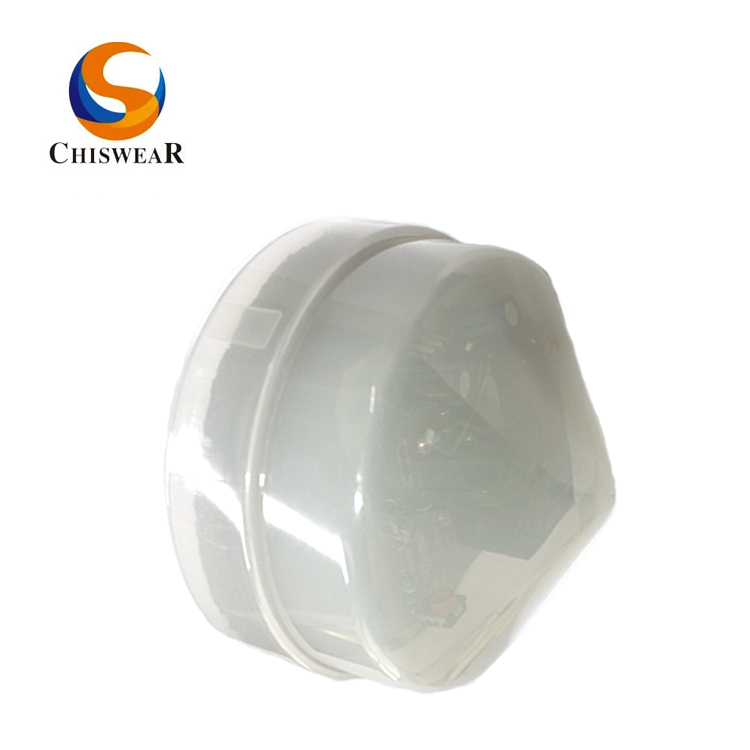

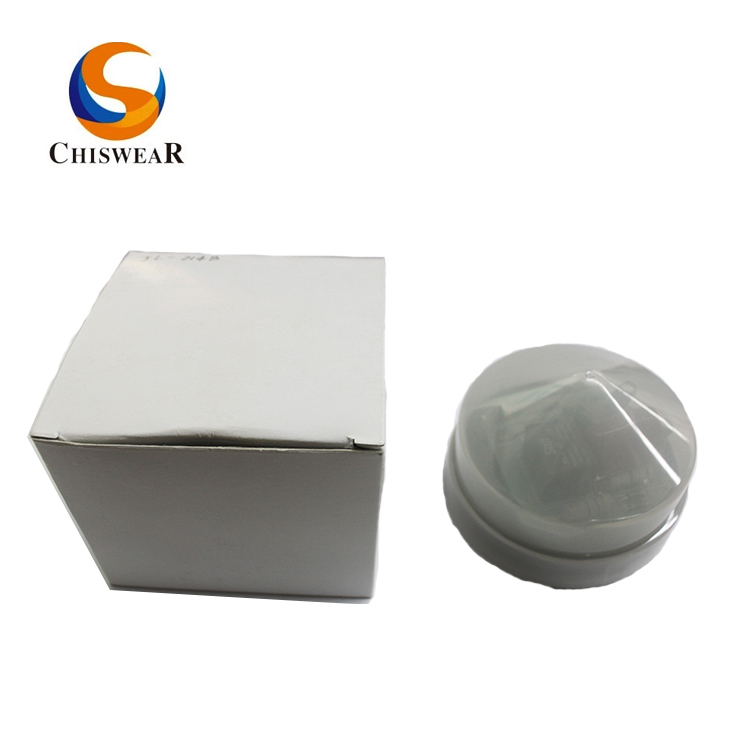

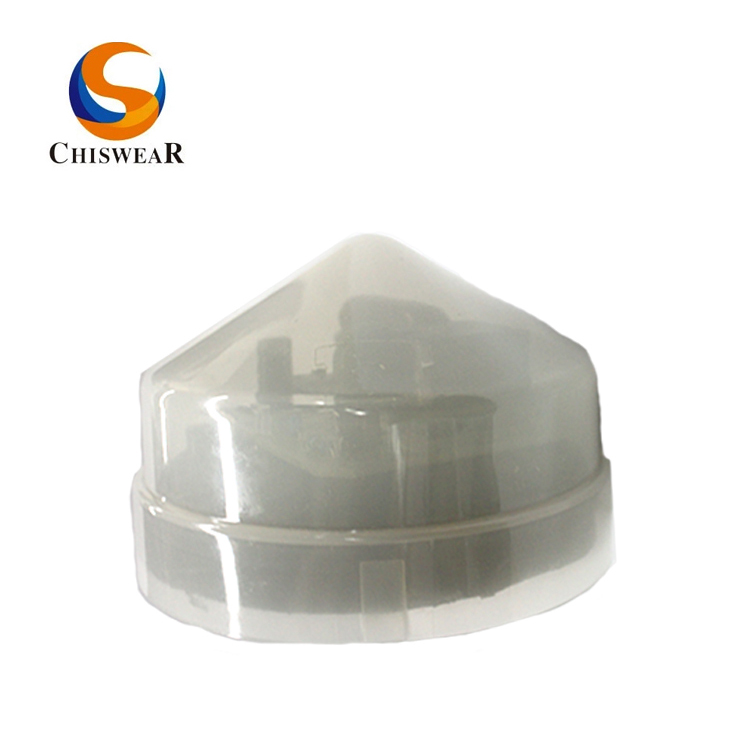

CE, RoHS Listed Twist lock Photocell Switch Rated Voltage 220-240VAC 10Amp

Short Description:

1. Product Model: JL-214B
2. Rated Voltage: 220-240 VAC
3. On / OFF Lux Level: 6 Lx on; 50 Lx off
4. Electric Life: 5000
5. Compliant Standard: CE, ROHS


Product Detail

Product Specification

Get Detailed Prices

Product Tags

The photoelectric switch JL-214/224 series is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.

Feature

1. 5-30s time delay.
2. Surge Arrester (MOV) Optional Design.
3. JL-214B/224B has an omni-directional face top sensor for customer applications per BS5972-1980.
4. 3 pin twist lock plug meets the ANSI C136.10, CE, ROHS.


  • Previous:
  • Next:

  • Product Model

    JL-214B

    Rated Voltage

    200-240VAC

    Applicable Voltage Range

    200-260VAC

    Rated Frequency

    50-60Hz

    Related Humidity

    -40℃-70℃

    Rated Loading

    1000W Tungsten, 1800VA Ballast

    Power Consumption

    1.5W

    Operate level

    6Lx on, 50Lx off

    Overall dimensions(mm)

     84*66
