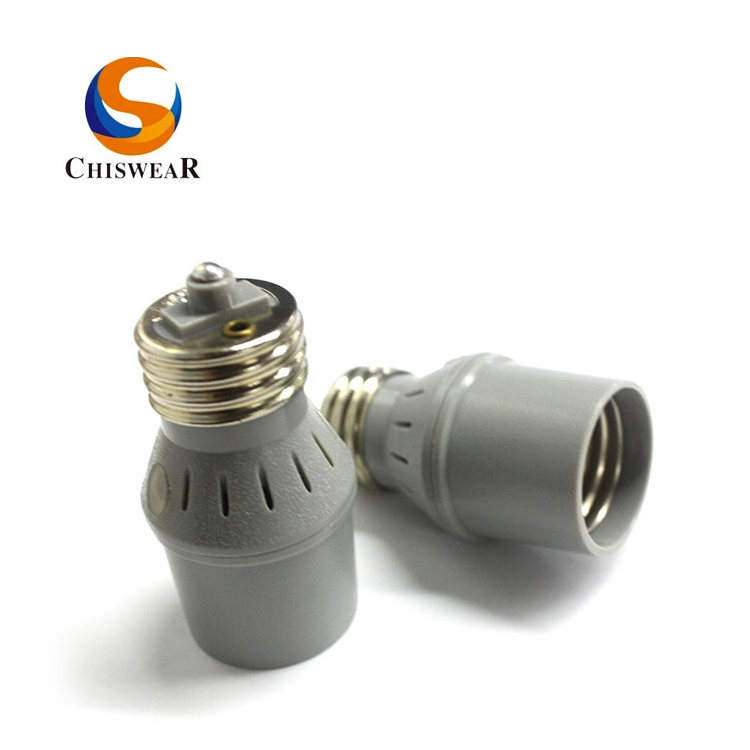

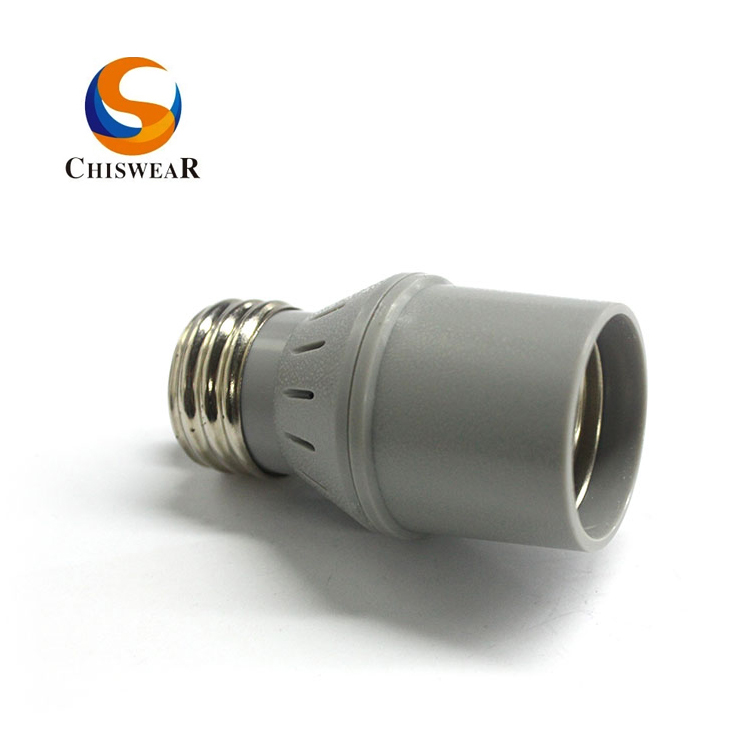

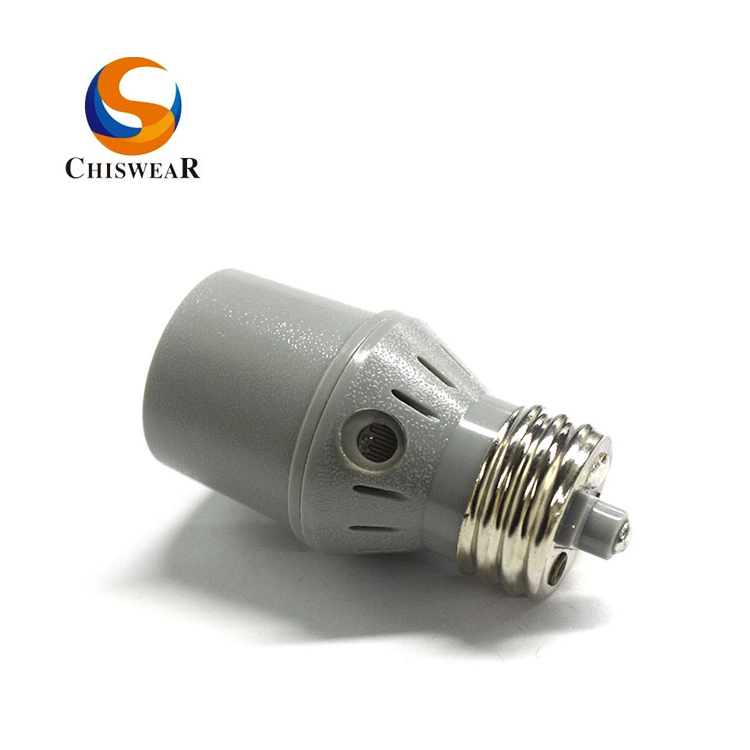

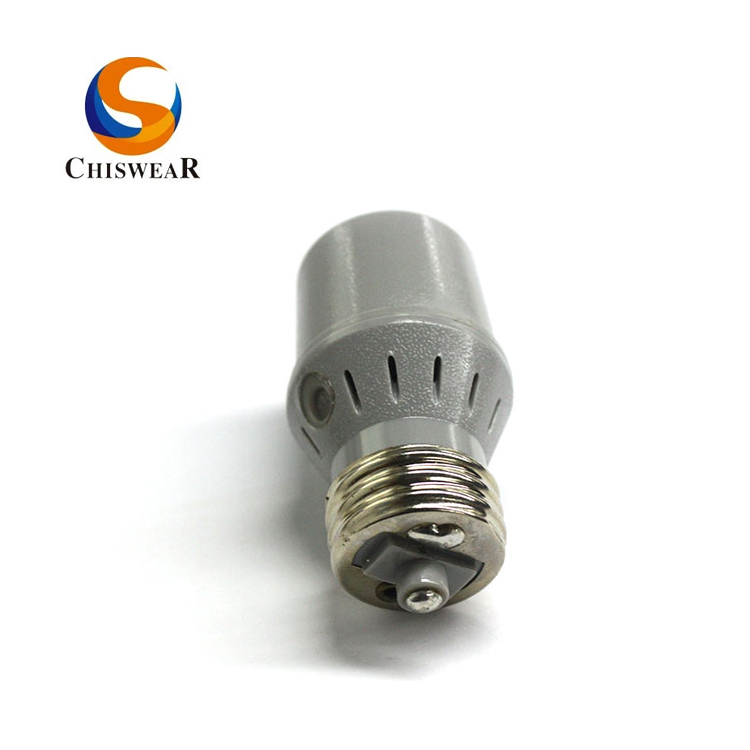

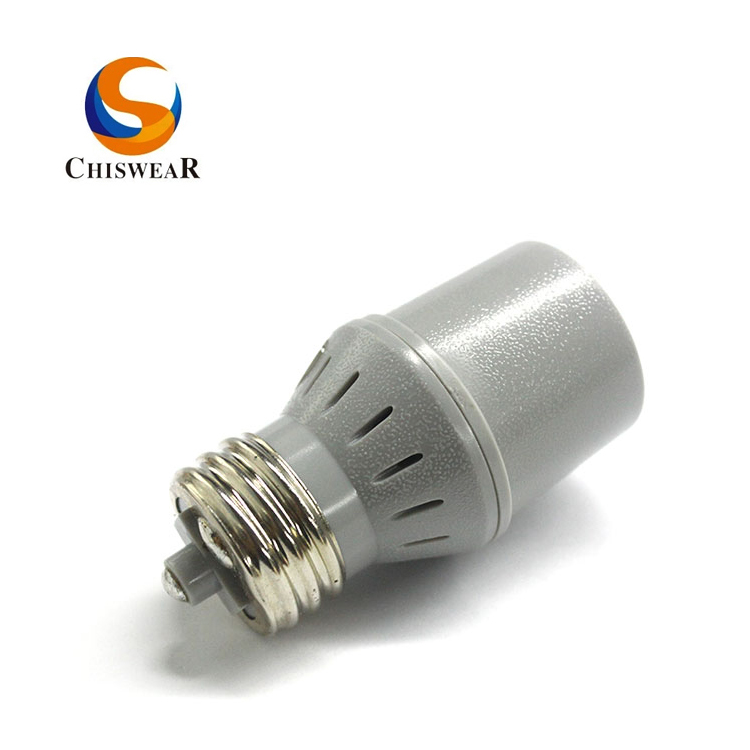

JL-301A Brass Bulb Socket Lamp Holder with photocell

Short Description:

1. Product Model : JL-301A

2. Rated Voltage : 120 VAC

3. On / OFF Lux Level : 15LX

4. Compliant Standard: CE,ROHS,UL


Product Description

Product Specification

Get Detailed Prices

Product Tags

The photoelectric switch JL-301A applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.

Feature
1. 3-30s time delay.
2. Provides Temperature compensated system.
3. Convenient and easy to install.
4. Avoid mis-operation due to spotlight or lightning during the night time.

Tips
Operation of this switch is not affected by weather, moisture or temperature changes.


  • Previous:
  • Next:

  • Product Model

    JL-301A

    Rated Voltage

    120VAC

    Rated Frequency

    50-60Hz

    Related Humidity

    -40℃-70℃

    Power Consumption

    1.5VA

    Operate level

    15lx

    Body Meas(mm)

    69*φ37mm

    Lamp cap & Holder

    E26/E27
