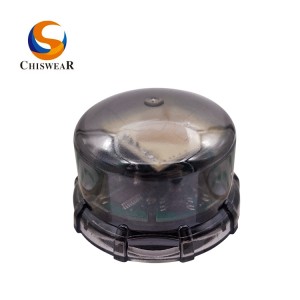

0-10V Dimming and Microwave Motion Control Zhaga Photocell Street Light

Short Description:

1. Product Model: JL-712A

2. Dimming Output:0-10V

3. Certificate:  CE,CB

4. Compliant Standard: zhaga book18

5. Sensor type: optic sensor + microwave motion




Product Description

Product Specification

Size Diagram

Product Tags

Feature

1. Product Model: JL-712A

2. Low Voltage: 12-24VDC

3. Power Consumption: 12V/3.5 mA; 24V/3.5 mA

4. Automatic dynamic microwave frequency adjustment, in order to avoid mutual interference in dense installation.

5. Sensor type: optic +microwave motion sensor

6. Fixture lighting reflection light filtering design

7. Support Dimming: 0-10V

8. high strength waterproof isolate design

9. Compliant Standard interfaces: zhaga book18


  • Previous:
  • Next:

  •

    Model JL-712A3
    Voltage 12V/45 mA, 24V/30mA
    Power consumption (at daylight) 3.5 mA
    Sensor type Optic sensor & microwave motion
    Dimming output 0-10v, adjustment range 2%, Drive capability: 40 mA
    Spectral Acquisition Range 350~1100nm, Peak wavelength 560nm
    Default turn-on illuminance threshold 50 lx +/-10
    Real-time turn-off illuminance threshold*1 when the ambient illuminance after turning on the light to 100% brightness each time +40 lx (+/-10)up limit: 50+40 lx (+/-10)down limit: 6000 lx (+/-100)
    Reflected light compensation upper limit 6000 lx (+/-100)
    initiate state adjustment After power-on, the light will be turned on by default at 100% brightness and maintained for 5 seconds, then the light will be turned off automatically and enter the self-sensing operation mode *
    Light on delay 5s (The light will be turned on only when the ambient illuminance is satisfied for 5S continuously)
    Turn-off delay 20s (Turn off the lights when the ambient illuminance is satisfied for 20S continuously)
    Fixture illumination brightness change ratio: 0%~20%, 20%~100% 1s
    Fixture illumination brightness change ratio: 100%~20%, X~0% 8s
    100% lighting duration after its motion trigger 30s
    Standby brightness (when the illuminance is satisfied but there is no moving object) 20%
    Maximum hanging height 15 m
    Sensing radius 4-8 m (Under 15m hanging height)
    Sensing angle 92 degrees
    Flammability Level UL94-V0
    Anti-static interference(ESD) IEC61000-4-2Contact discharge:±8kV,CLASSAAir discharge:±15kV,CLASS A
    Mechanical Vibration IEC61000-3-2
    Operating Temperature -40°C~55°C
    Operating Humidity 5%RH~99%RH
    Life >=80000h
    IP rating IP66
    extra protection mode built anti-trigger motion protection
    Certificate CE, CB, zhaga book 18

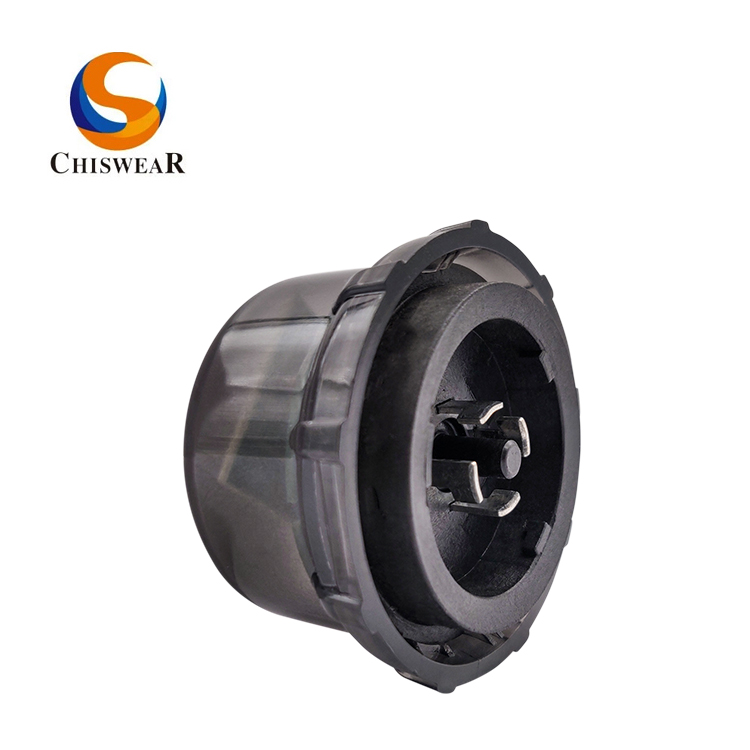

    JL-712A3  Microwave motion Zhaga Sensor Schematic Diagram

    Diagram of LED Fixture Brightness and Ambient illuminance Curve

    JL-712A curve

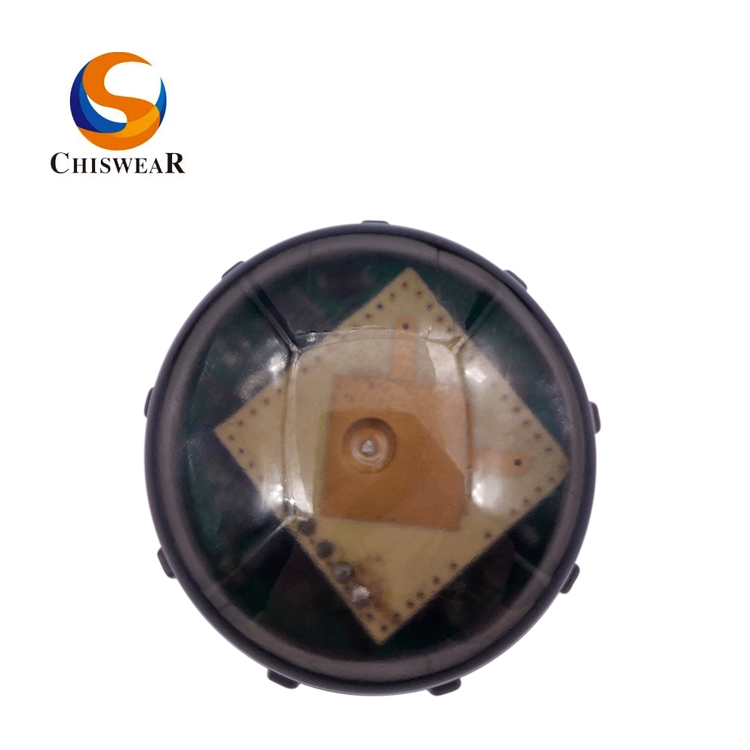

    Schematic diagram of microwave induction

    microwave sensor

    JL-712A3zhaga

    4 pin prongs

    Item

    Definition

    Type

    1

    12-24 VDC

    power input

    2

    GND / DIM-

    power input

    3

    NC

    Signal output

    4

    DIM+ (0-10+)

    Signal output
