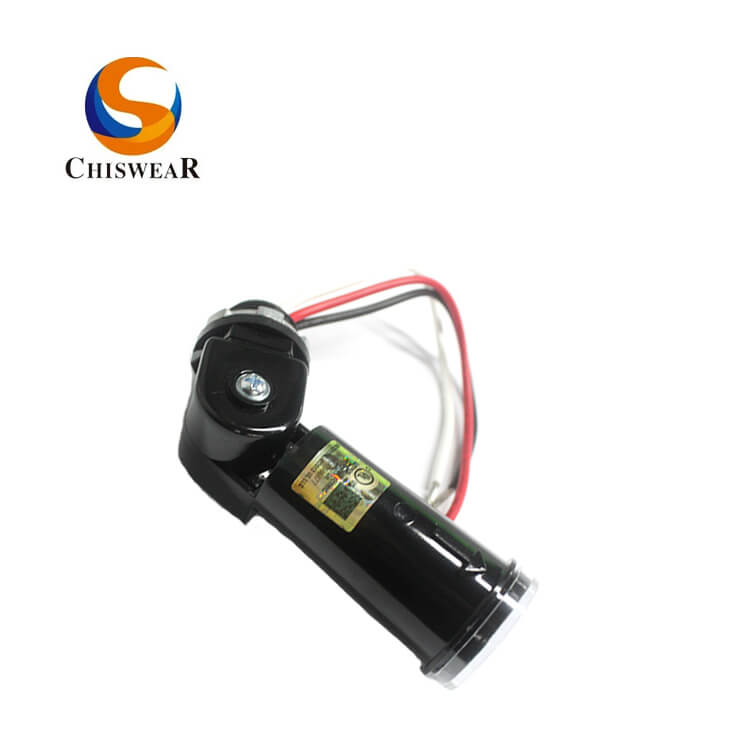

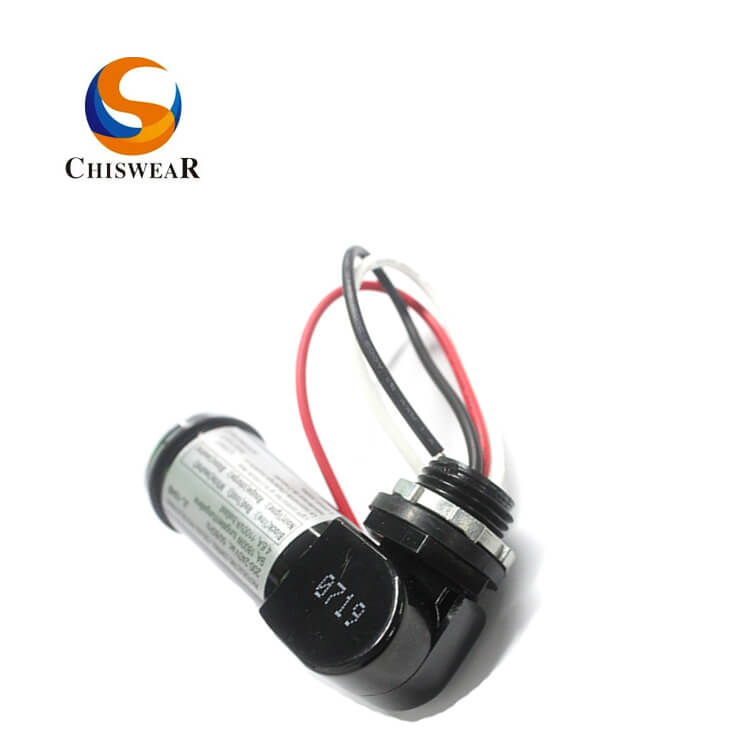

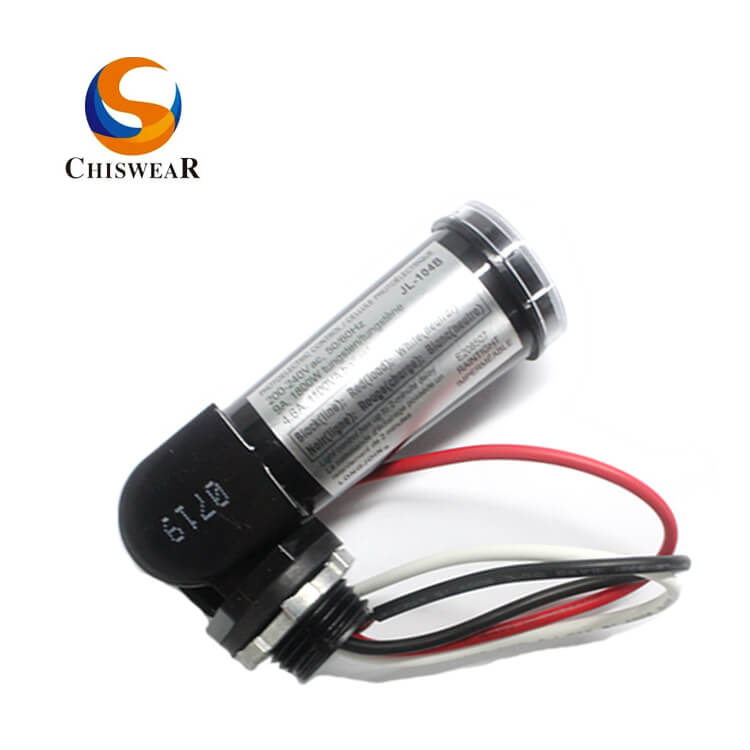

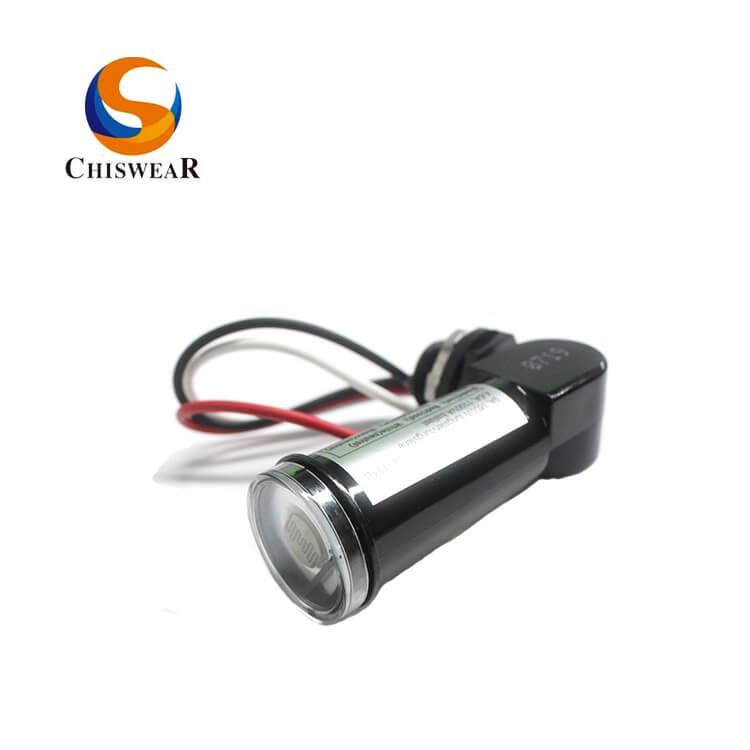

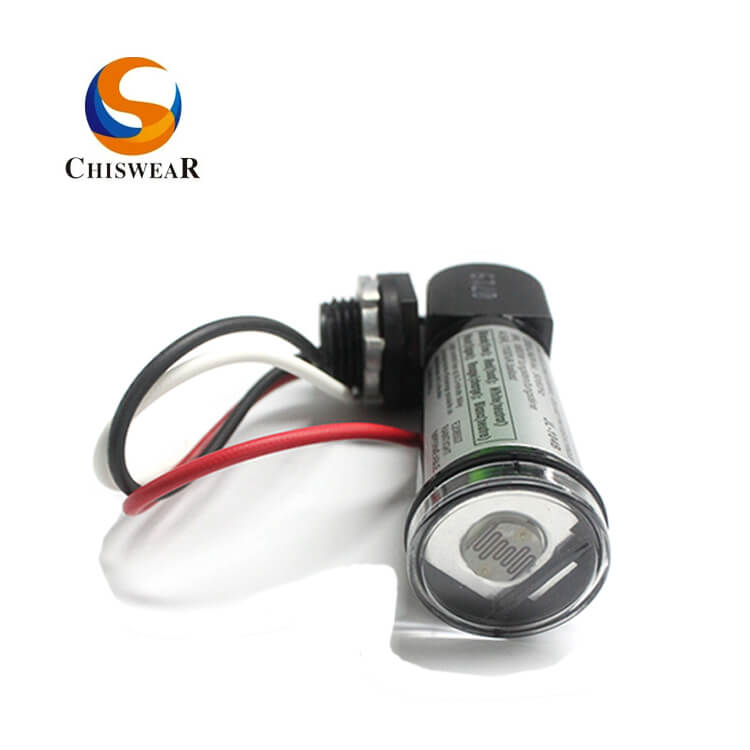

3 Wire-in JL-104B Photo Cell Sensor

Short Description:

1. Product Model: JL-104B
2. Rated Voltage: 200-240 VAC
3. On / OFF Lux Level: 10-20 Lx on; 30-60 Lx off
4. IP Rating: IP54
5. Compliant Standard: CE, ROHS,UL


Product Description

Product Specification

Accessories

Get Detailed Prices

Product Tags

The photoelectric switch JL-104 is applicable to control the street lighting, garden lighting, passage lighting and barn lighting automatically in accordance with the ambient natural lighting level.

1. 30-120s time delay.
2. Provides Temperature compensated system.
3. Convenient and easy to install.
4. Convenient direction adjustment after installation.


  • Previous:
  • Next:

  • Product Model

    JL-104B

    Rated Voltage

    200-240VAC

    Rated Frequency

    50-60Hz

    Related Humidity

    -40℃-70℃

    Power Consumption

    1.5VA

    Operate level

    10-20Lx on, 30-60Lx off

    Body Meas(mm)

    88(L)*32(dia), stem: 27(Ext.)mm.180°

    Lead lengths

    150mm or Customer request;
