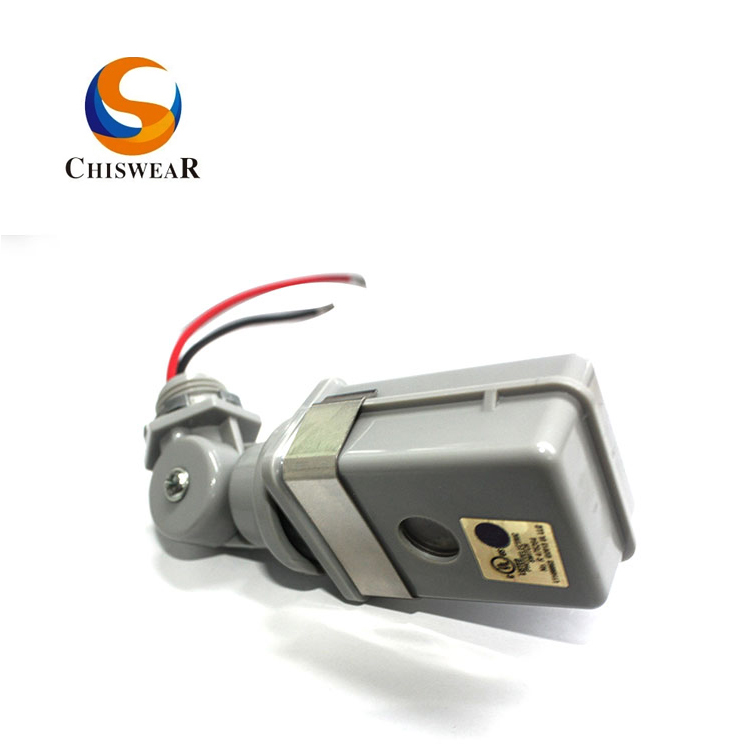

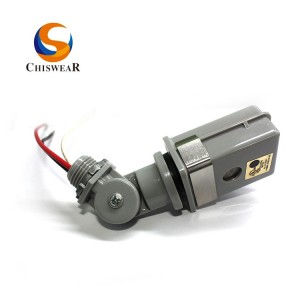

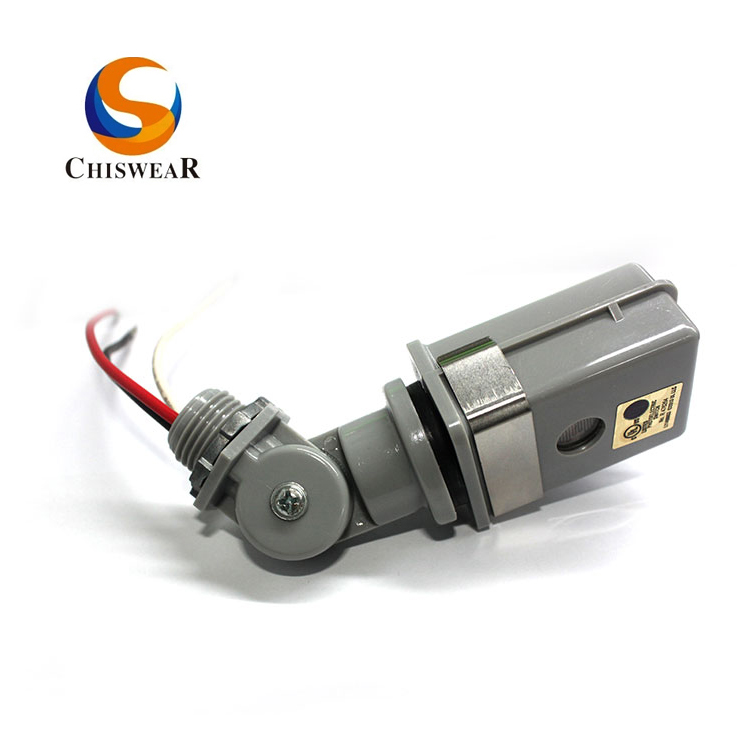

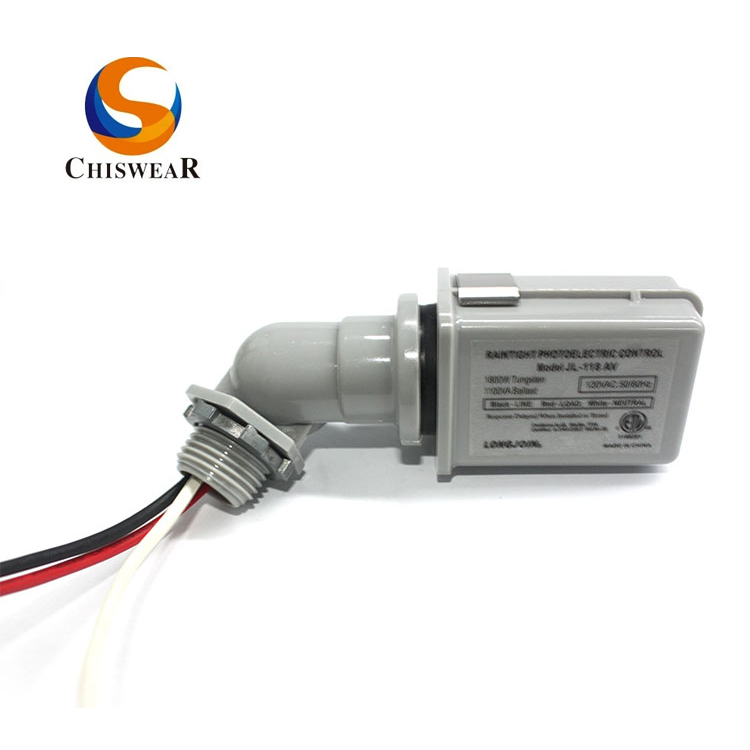

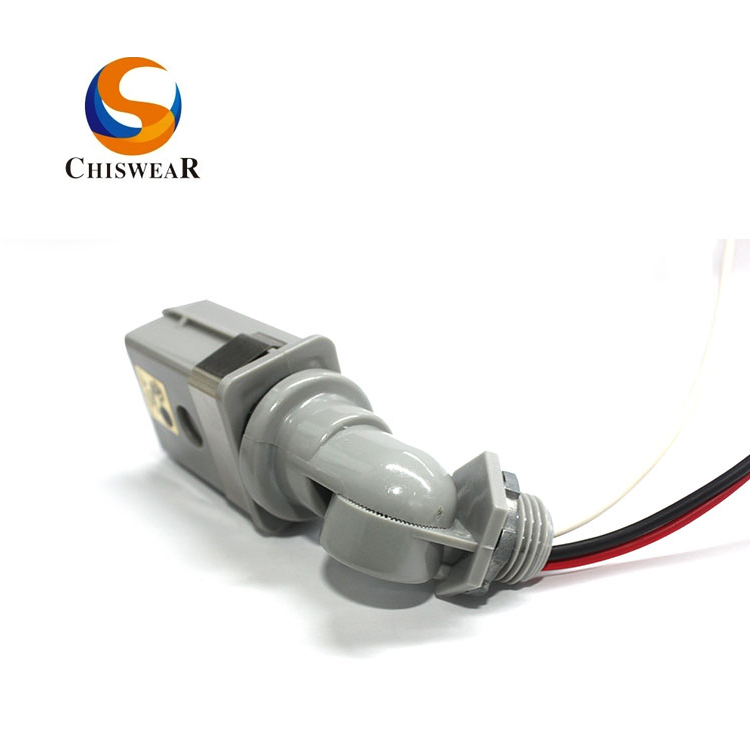

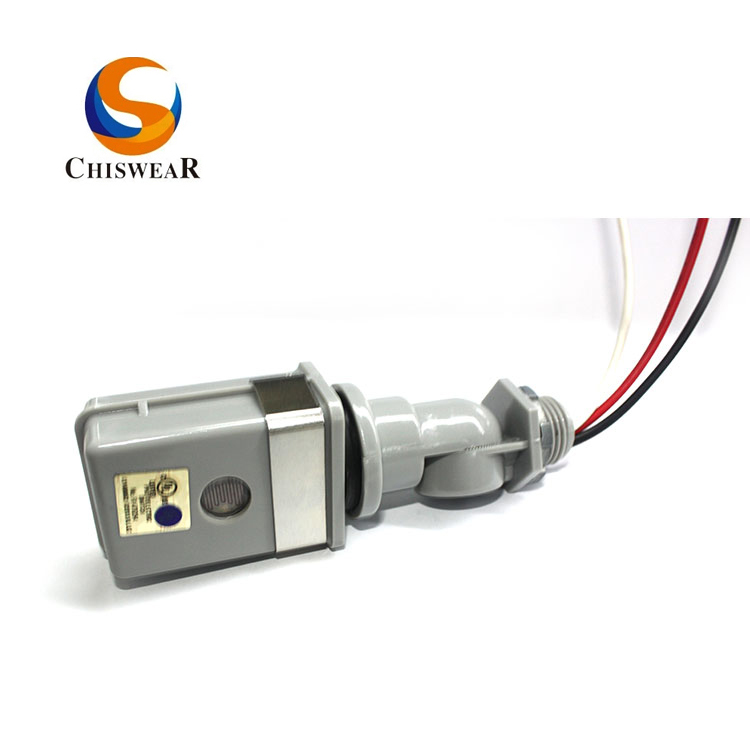

Swivel Head Accessories JL-118AV Wiring Mouted Photocontrol

Short Description:

1. Product Model : JL-118AV

2. On / OFF Lux Level: 10-20Lx,30-60Lx

3. IP Rating : IP54

5. Compliant Standard: CE,ROHS,UL

Product Description

Product Specification

Get Detailed Prices

Product Tags

The photoelectric switch JL-118 Series is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.


1. Designed with bimetal thermal Structure work theory

2. 30 seconds Time Delay for easy-to-test and Avoid sudden accidents(spotlight or lightning) affecting normal lighting at night .

3.Wide voltage range for customer applications under almost power supplies.

  • Previous:
  • Next:

  • Product Model JL-118A JL-118B
    Rated Voltage 100-120VAC 200-240VAC
    Rated Frequency


    Rated Loading

    1000W Tungsten, 1800VA

    Power consumption 1.5 VA
    Operate Level

    10-20Lx On 30-60Lx Off

    Ambient Temperature

    -30℃ ~ +70℃

    Leads Length 150mm or Customer request (AWG#18)
    Sensor Type Bimetal thermal controller
    Approx. Weight  55g (Body)
