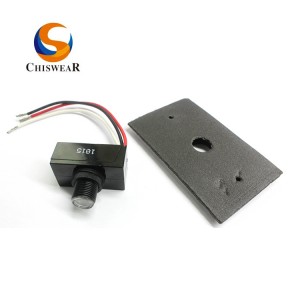

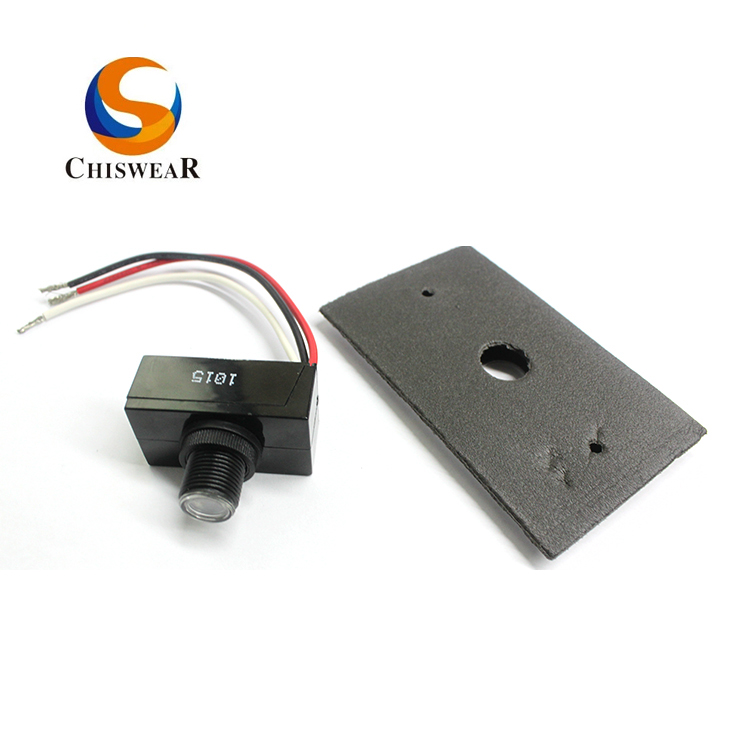

Button Photocell Sensor Accessories Wall Mount Aluminum Plate

Short Description:

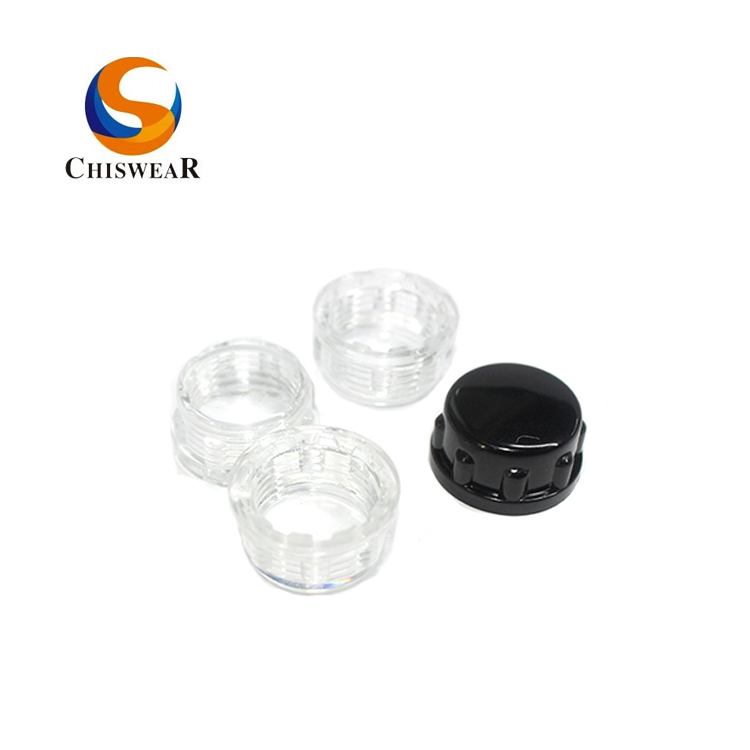

1. Photocell Accessories: waterproof cap

2. Cap Color: black, transparent

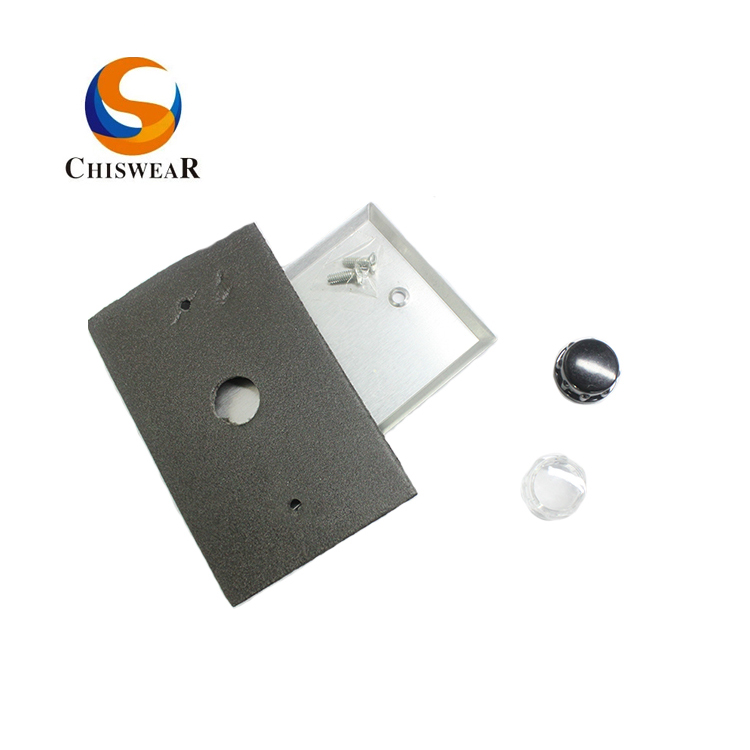

3. Wall Mount Plate: Aluminum material


Product Description

Product Specification

Matching Kits

Get Detailed Prices

Product Tags

The photoelectric switch JL-1 is applicable to control the street lighting, garden lighting, passage lighting and barn lighting automatically in accordance with the ambient natural lighting level.

Feature

1. 30-120s time delay.

2. Convenient and easy to install.

3. Standard Accessories : aluminum wall plated, waterproof cap (Optional )

4. Wire gauge Classifications :

1) standard wire:  105℃.

2) High temperature wire : 150℃.


  • Previous:
  • Next:

  • Product Model

    JL-103BW

    Rated Voltage

    240VAC

    Rated Frequency

    50-60Hz

    Related Humidity

    -40℃-70℃

    Power Consumption

    1.2VA

    Operate level

    10-20Lx on, 30-60Lx off

    Body Meas(mm)

    52.5(L)*29.5(W)*42(H)

    Lead lengths

    180mm or Customer request;



    微信图片_20200319154536fitting material
