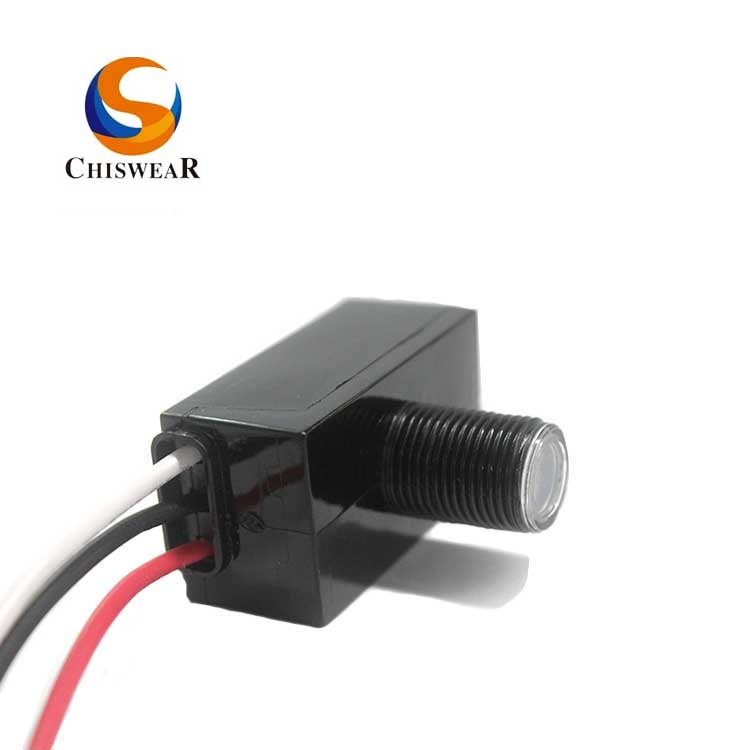

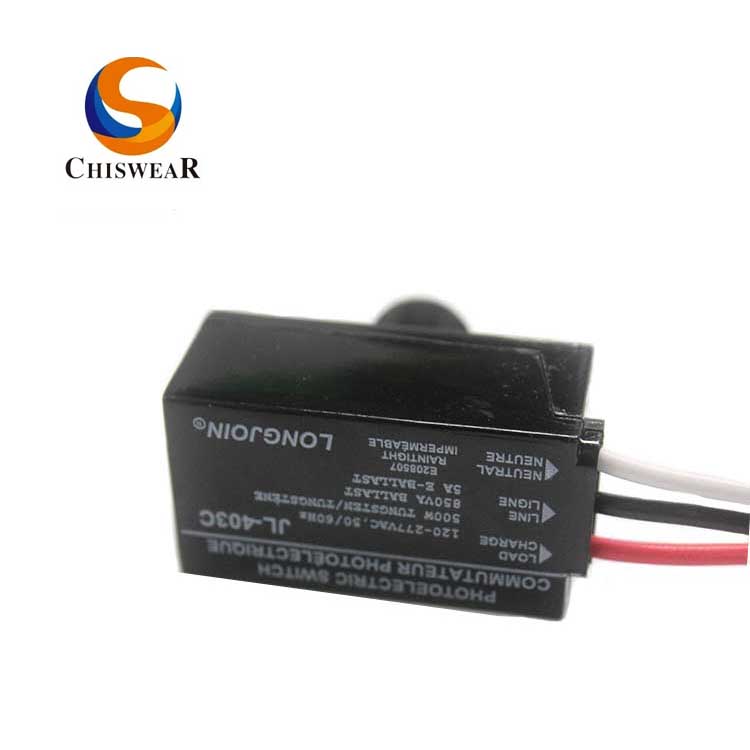

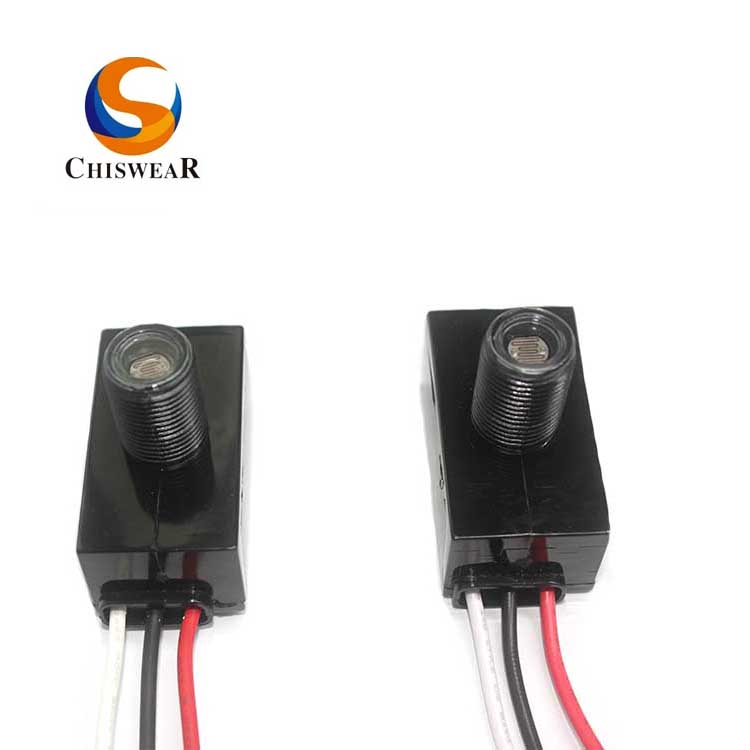

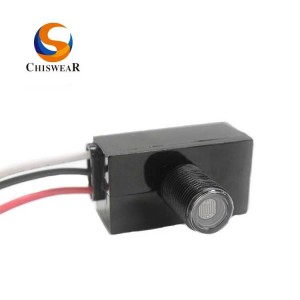

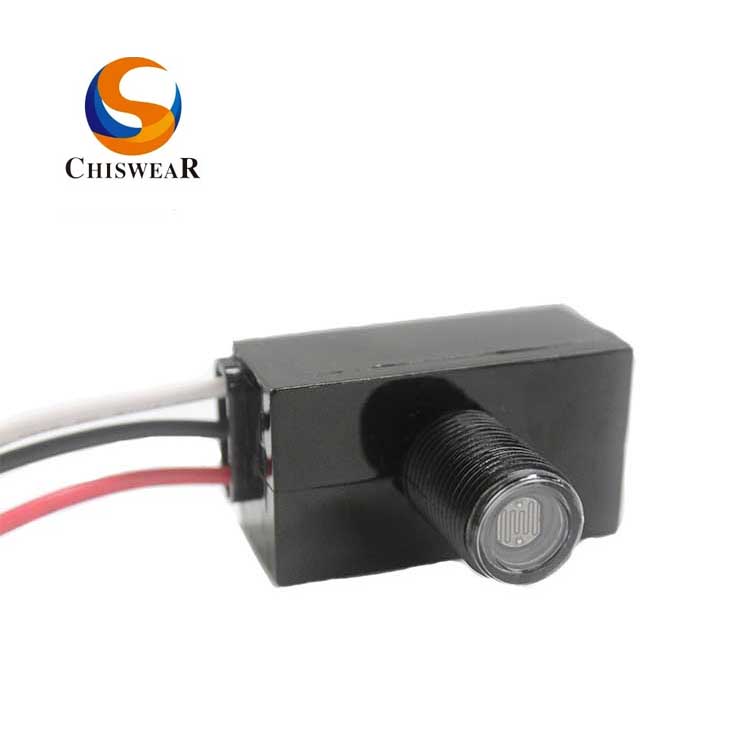

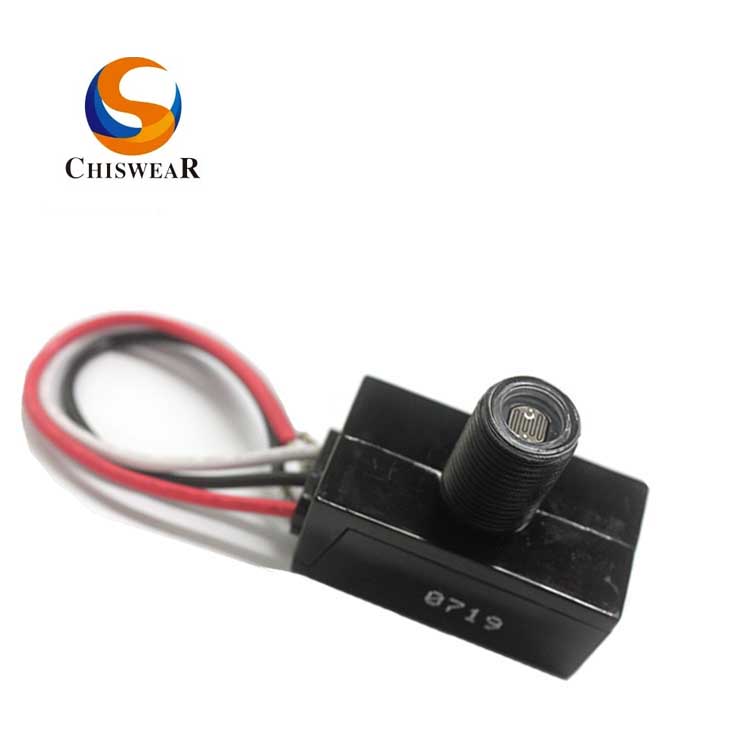

Min Button Style Photocell JL-403C 120V-277VAC

Short Description:

1. Product Model: JL-403C
2. Rated Voltage: 120-277 VAC
3. On / OFF Lux Level: 6 Lx on; 50 Lx off
4. IP Rating: IP54
5. Compliant Standard: CE, ROHS, UL

Product Detail


Available Fitting

Product Specification

Get Detailed Prices

Product Tags

The photoelectric switch JL-403 is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.
1. 3-10 s time delay.
2. JL-403C provides a wide voltage, or customer request.
3. Preset 3-10 seconds time-delay might avoid mis-operation due to spotlight or lightning during the night time.
4. Compliant Standard for Non-industrial Photoelectric Switches for Lighting Control UL773A.


  • Previous:
  • Next:

  • 103cap-002fitting material


    Product Model


    Rated Voltage


    Rated Frequency


    Rated Loading

    500W tungsten

    850V Ballast

    5A-E Ballast

    Power Consumption


    Operate level

    10-20Lx on, 30-80Lx off

    Overall Dimension

    54.5(L) x 29(W) x 44(H)mm

    Leads length

    180mm or Customer request (AWG#18)

    LED Loading

    2.5A @240V/ 4A @120V
