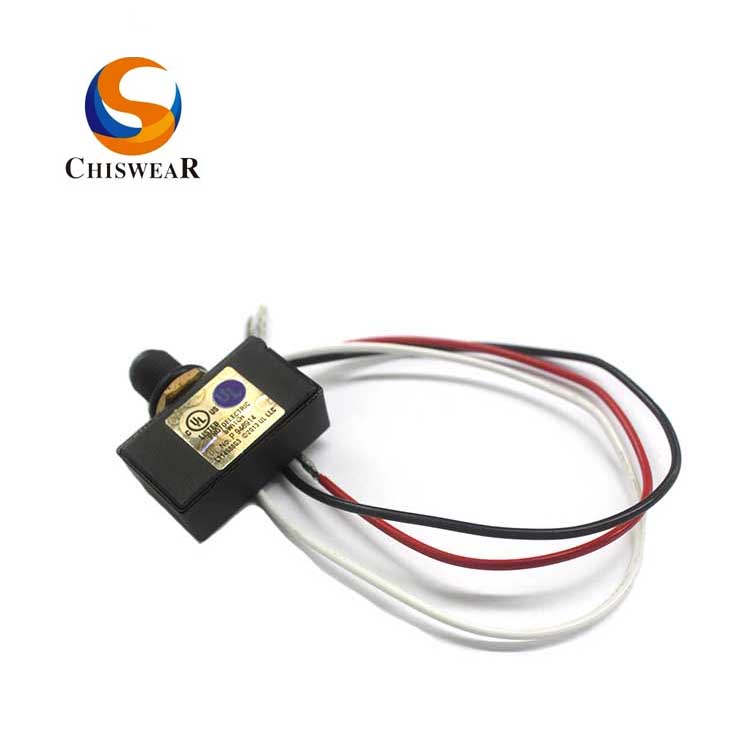

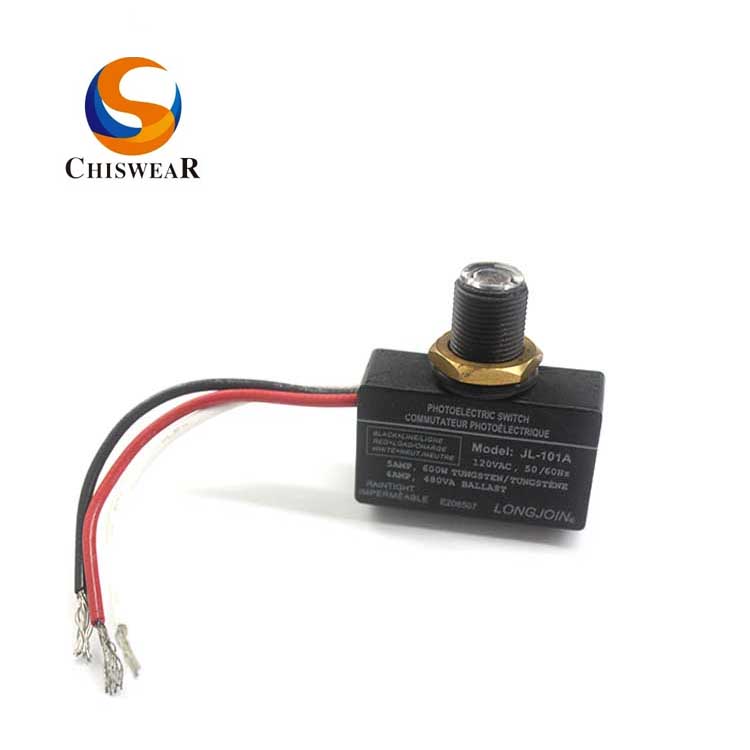

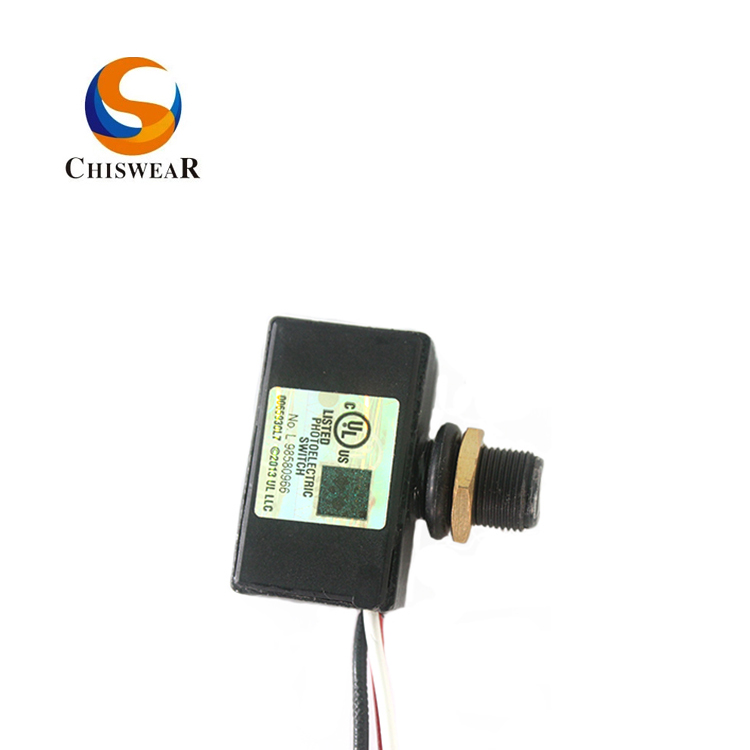

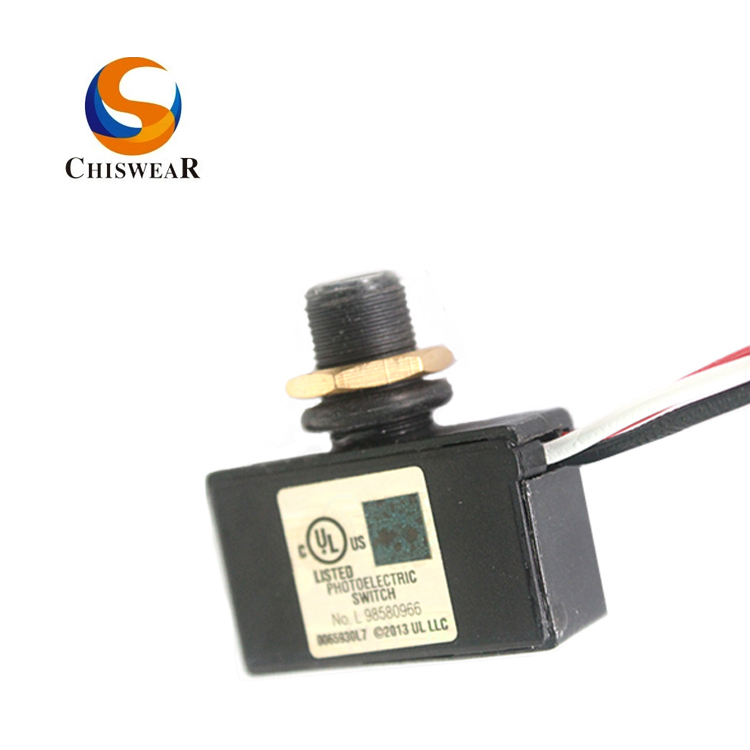

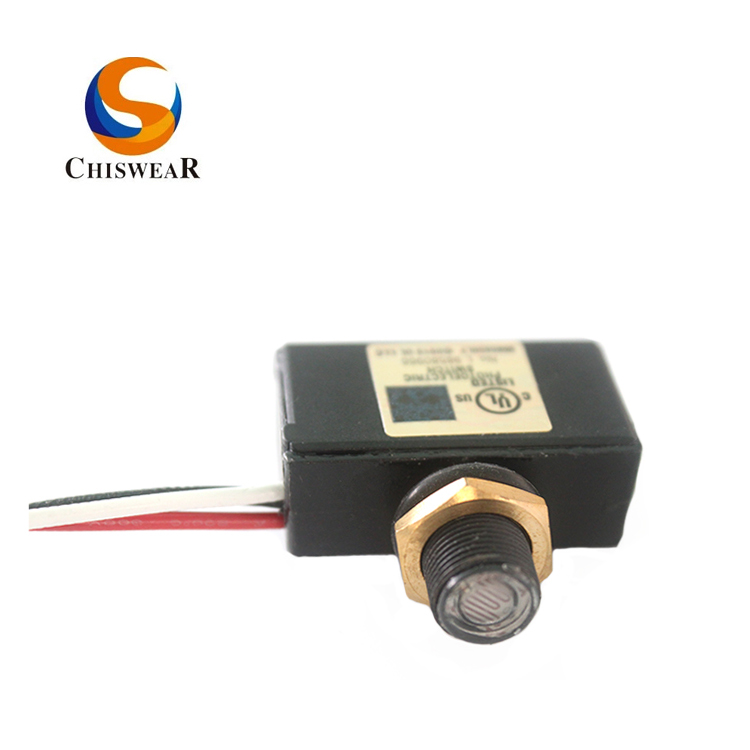

100-120VAC Hardwired Button Photo Eye Switch JL-101A

Short Description:

1. Product Model : JL-101A

2. Rated Voltage : 100-120 VAC

3. On / OFF Lux Level : 10-30 Lx off/on

4. IP Rating: IP54

5. Compliant Standard: CE,ROHS,UL


Product Description

Product Specification

Available Fitting

Get Detailed Prices

Product Tags

The photo electric switch JL-101 series is applicable to control the street lighting, garden lighting, passage lighting and barn lighting automatically in accordance with the ambient natural lighting level.

Feature

1 . 3-10s time delay.

2.  Convenient and easy to install.

3. Standard Accessories : aluminum wall plated, waterproof Cap (Optional )

4. Wire gauge Classifications :

1)standard wire:  105℃.

2) High temperature wire : 150℃.


  • Previous:
  • Next:

  • Product Model

    JL-101A

    JL-101B

    Rated Voltage

    100-120VAC

    200-240VAC

    Rated Frequency

    50-60Hz

    Rated Loading

     100W Tungsten

    Leads Gauge

    AWG#20

    Related Humidity

    -40℃-70℃

    Power Consumption

    1.0W max

    Operate level

    10-30Lx off/on

    Overall Dimensions(mm)

    34.5(L)*20.5(W)*26.4(H)

    Lead lengths

    7 inch or Customer request;



    103cap-002fitting material
