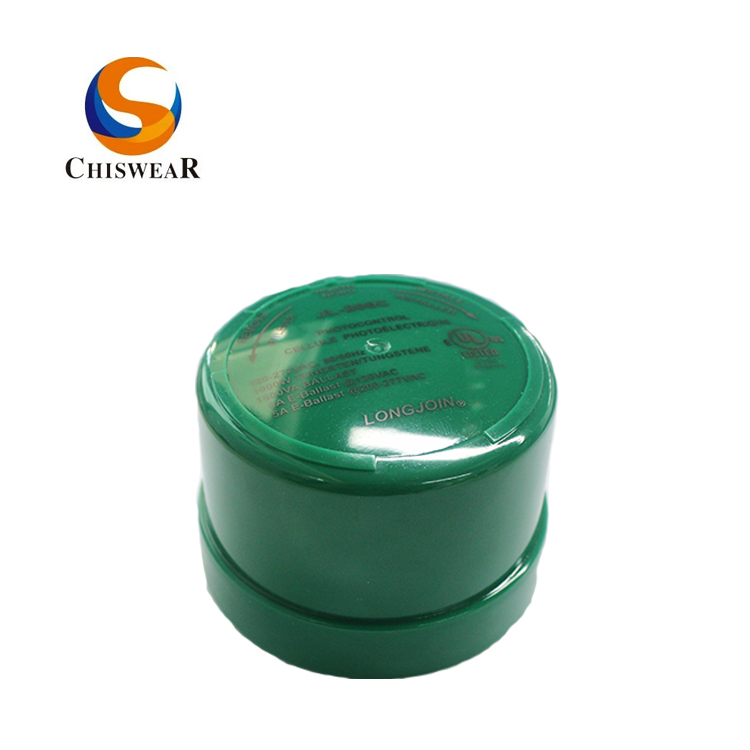

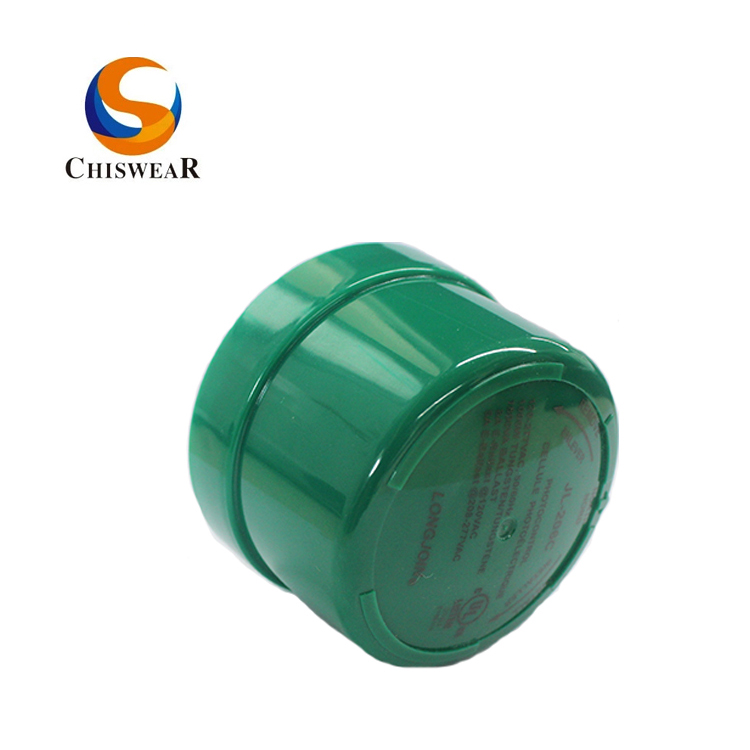

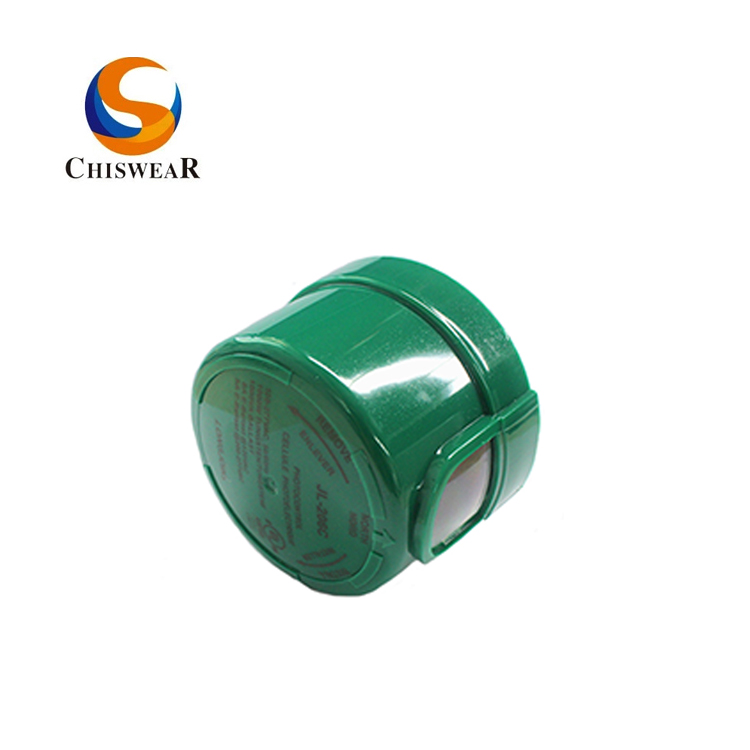

JL-206C Automatic Twist Lock Photocontrol Sensor Switch for Street Light

Short Description:

1. Product Model: JL-206C
2. Rated Voltage: 110-277 VAC
3. On / OFF Lux Level: 30-40 Lx on; 10-20 Lx off
4. Built in Mov
5. IP Rating: IP54, IP65
6. Compliant Standard: CE, ROHS, UL

Product Detail


Product Specification

Product Specification

Product Tags

The photocontroller JL-206C is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.

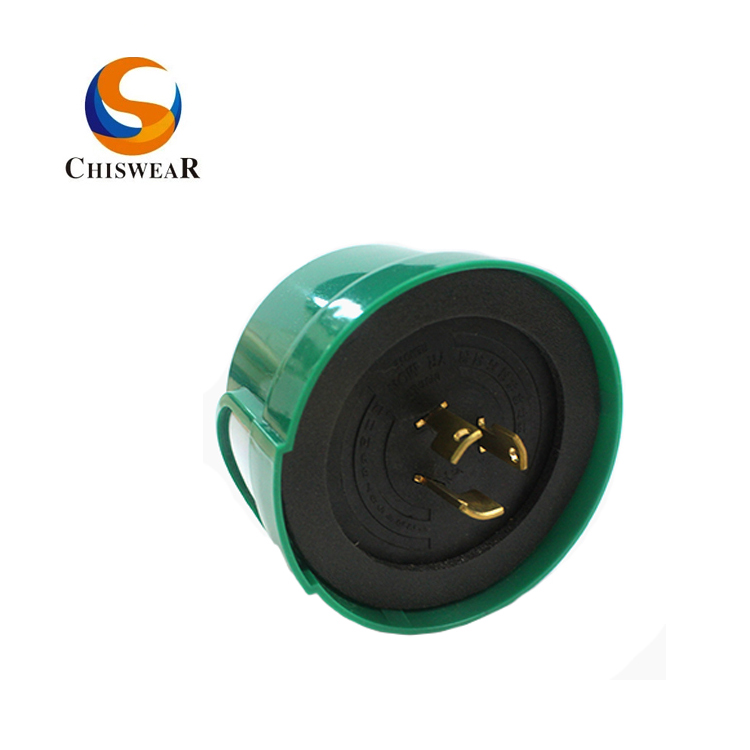

1. ANSI C136.10-1996 Twist Lock.
2. Surge Arrester Built-In.
3. Fail-on Mode
4. IP Rating: IP54, IP65
5. Power Consumption: 1.5VA Max

  • Previous:
  • Next:

  • Product Model


    Rated Voltage


    Applicable Voltage Range


    Rated Frequency


    Rated Loading

    1000W Tungsten, 1800VA Ballast

    Power Consumption

    1.5VA Max

    On/Off Level

    30-40Lx On, 10-20Lx Off

    Ambient Temp.

    -40℃ ~ +70℃

    Related Humidity


    Overall Size

    84(Dia.) x 66mm

    Weight Approx.

    85 grs
