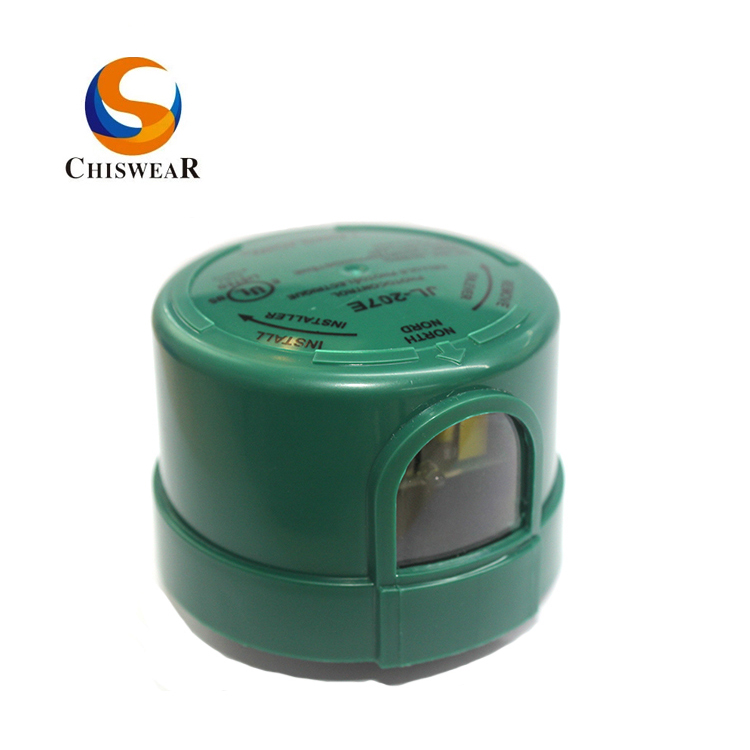

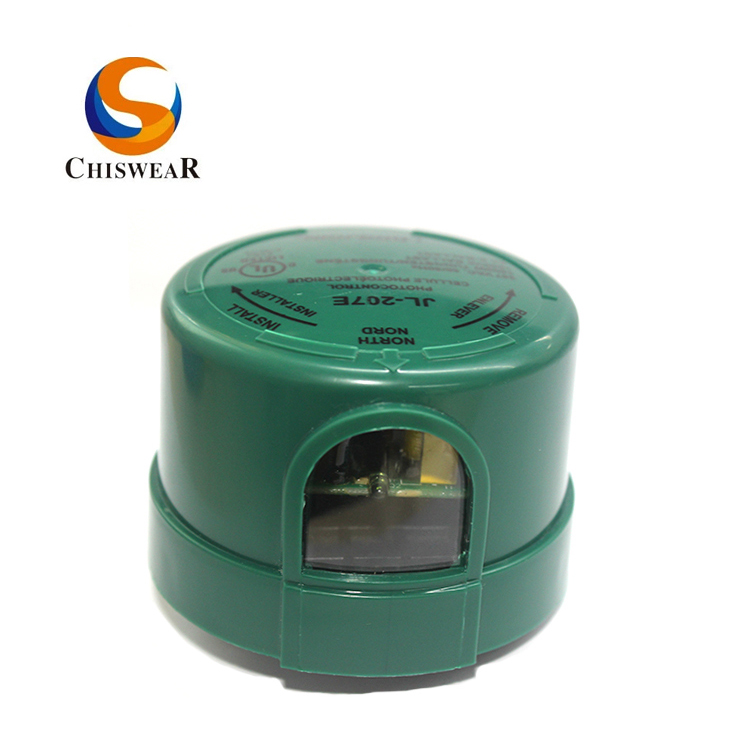

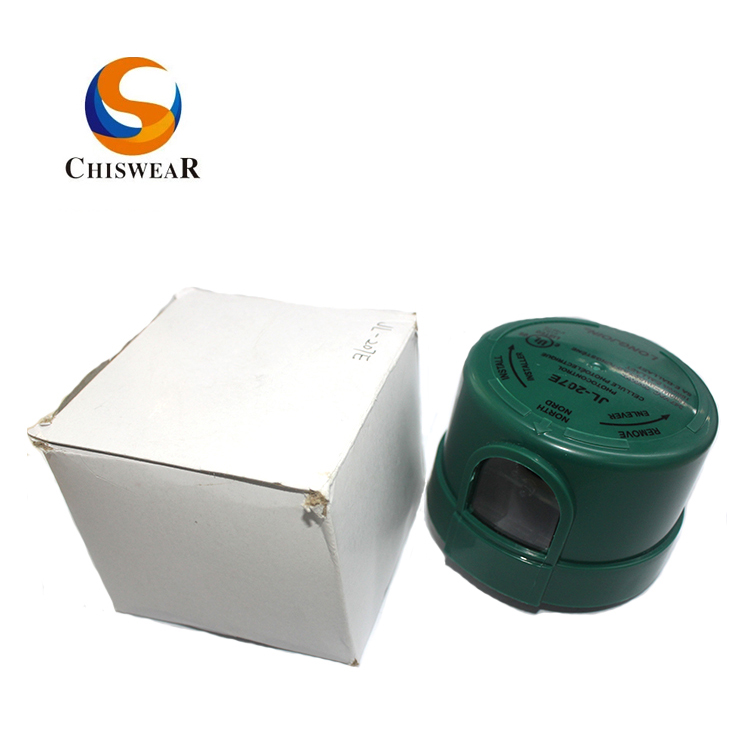

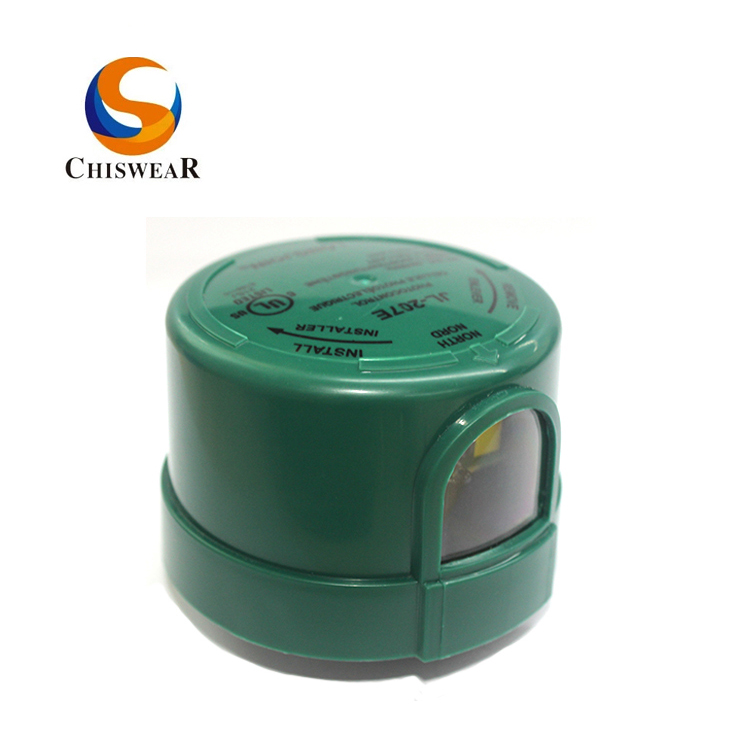

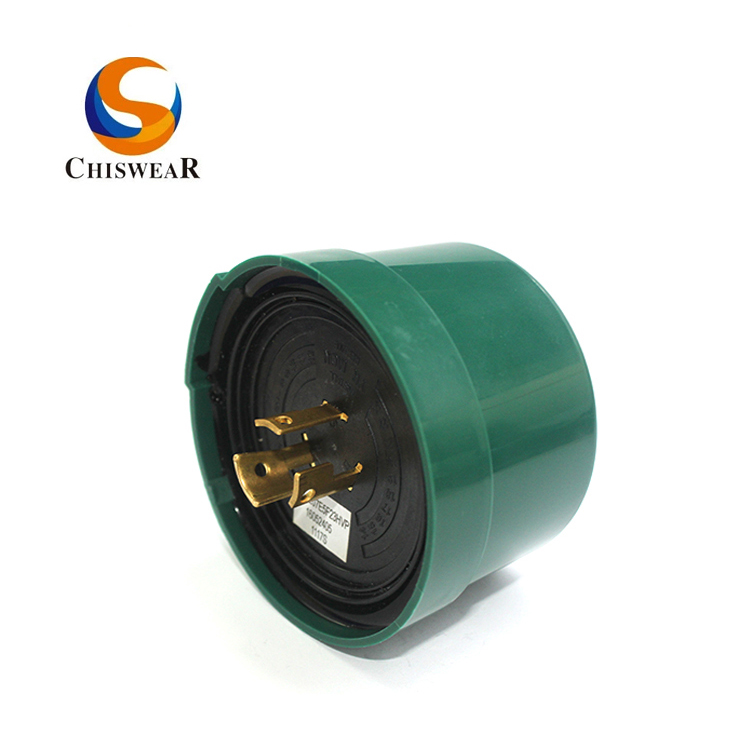

OEM/ODM Custom Twist Lock Photocell Photocontrol JL-207E

Short Description:

1. Product Model : JL-207E

2. Rated Voltage : 120-347VAC

3. On / OFF Lux Level :16 Lx on; 24 Lx off

4. IP  Rating: IP54,IP65,IP67

5. Compliant Standard: CE,ROHS,UL

Product Description

Product Specification

Get Detailed Prices

Product Tags

The photocell sensor JL-207 series is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level, and midnight sleeping timer settings.


1. Designed with microprocessor circuits with either sensors of CdS photocell, photodiode or IR-filtered phototransistor and a surge arrester (MOV) is provided.
2. 0-10 seconds(turn on) Time Delay for easy to test;preset 5-20 seconds time-delay(turn off) Avoid sudden accidents(spotlight or lightning) affecting normal lighting at night.
3. Meets the requirements of ANSI C136.10-2010 Standard for Plug-In, Locking Type Photocell Sensor for Use with Area Lighting UL773, Listed by UL for both US and Canada markets.

  • Previous:
  • Next:

  • Product Model


    Rated Voltage


    Applicable Voltage Range


    Rated Frequency


    Rated Loading

    1000W Tungsten, 1800VA Ballast

    Power Consumption

    0.5W [STD] / 0.9W [HP]

    Typical On/Off Level

    16Lx On / 24Lx Off

    Ambient Temp.

    -40℃ ~ +70℃

    Related Humidity

    99% / 100% [IP67]

    Overall Size

    84(Dia.) x 66mm

    Weight Approx.

    110g [STD] / 125g [HP]
