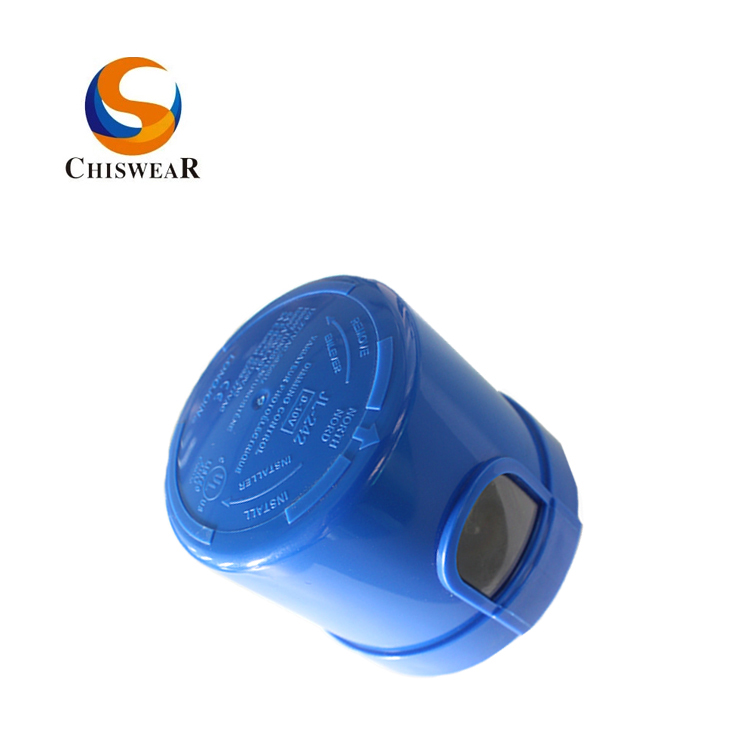

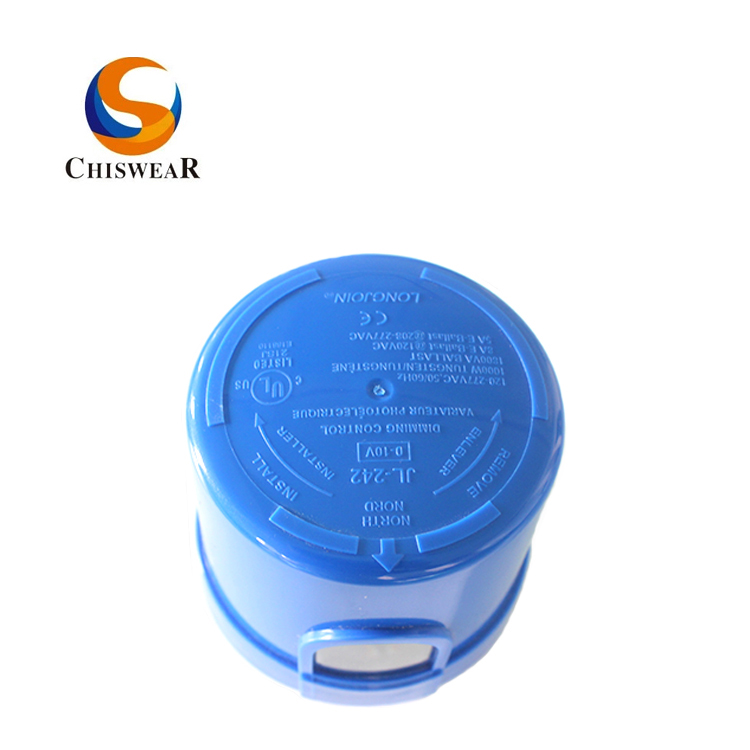

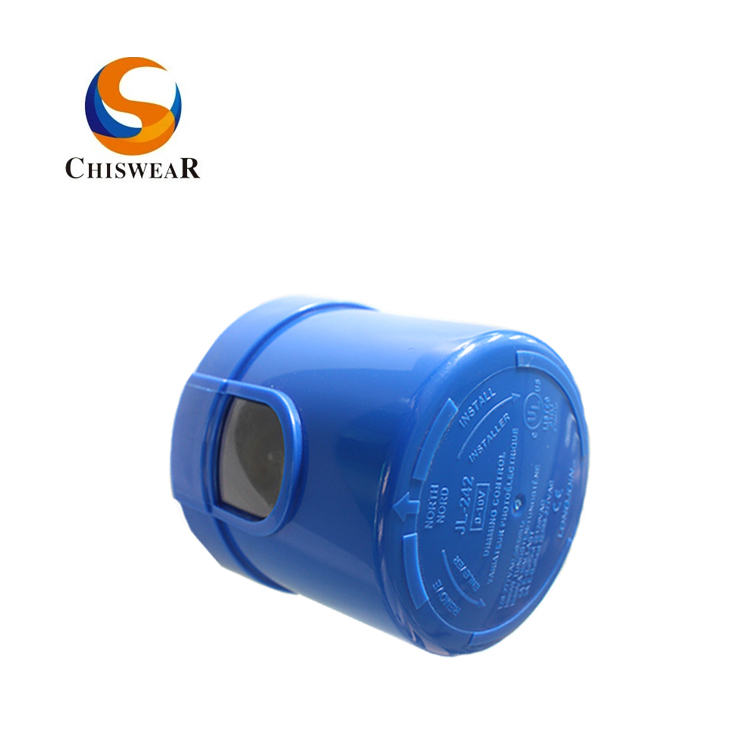

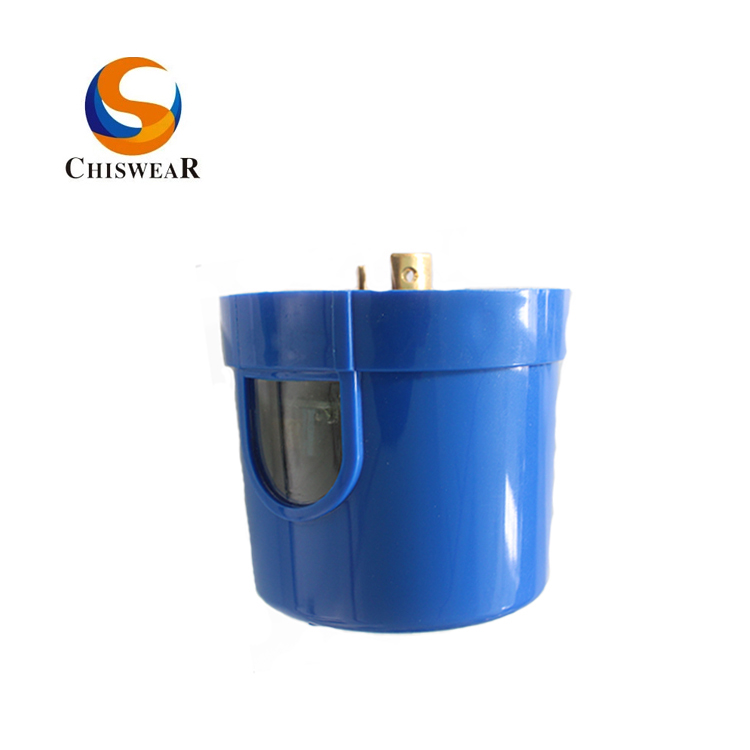

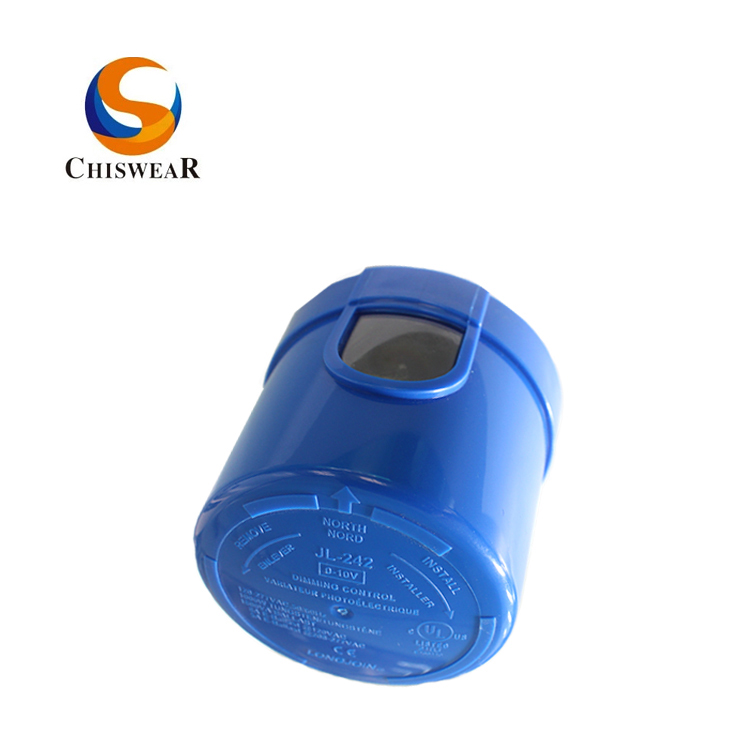

0-10V Dimming and Midnight Dimming NEMA 7 PIN Photocontrol Sensor Switch JL-242C

Short Description:

1. Product Model: JL-242C
2. Rated Voltage: 110-277 VAC
3. On / OFF Lux Level: 50 Lx
4. IP Rating: IP65, IP67
5. Compliant Standard: CE, ROHS, UL

Product Description

Product Specification

Get Detailed Prices

Product Tags

The photocontroller JL-24 series is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.

1. ANSI C136.10-1996 Twist Lock
2. Applicable Voltage Range: 90-305VAC
3. Time Delay of 10 seconds
4. Surge Arrester Built-In
5. Fail-On Mode
6. Dimming Output: 0-10V

  • Previous:
  • Next:

  • Product Model


    Rated Voltage


    Applicable Voltage Range


    Rated Frequency


    Rated Loading

    1000W Tungsten, 1800VA Ballast, 5A e-Ballast

    Power Consumption

    1.2W Average

    On/Off Level

    50 Lx

    Midnight Dimming


    Time Delay

    10 seconds

    Surge Protection

    640 Jolue/4000 Amp

    Ambient Temp.

    -40℃ ~ +70℃

    Related Humidity


    Overall Size

    84(Dia.) x 66mm

    Weight Approx.

    200 grs

    IP Protection
