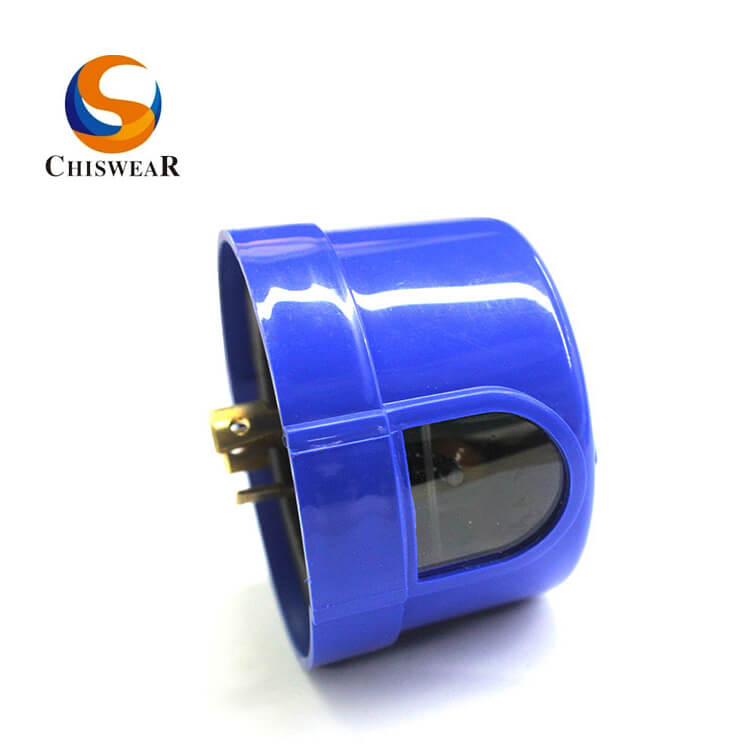

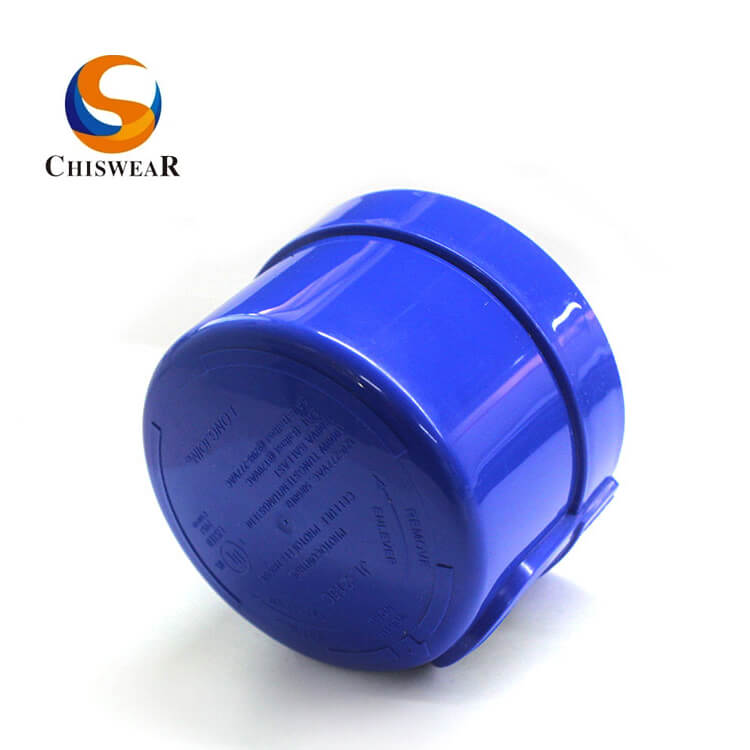

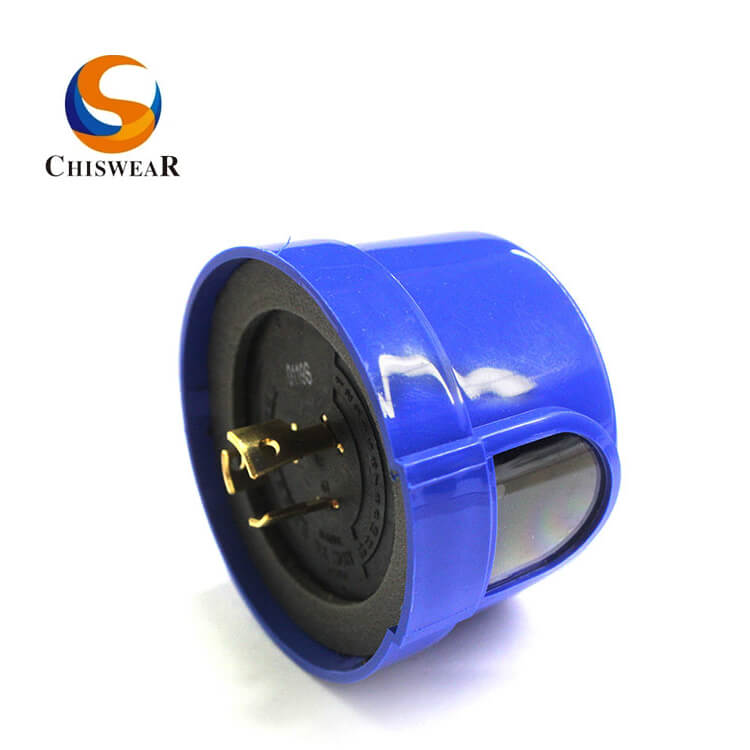

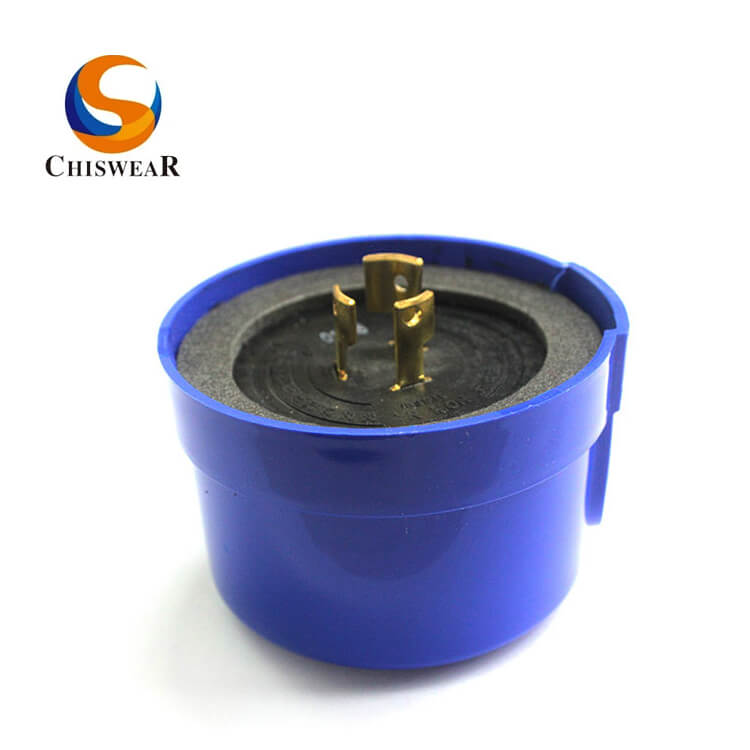

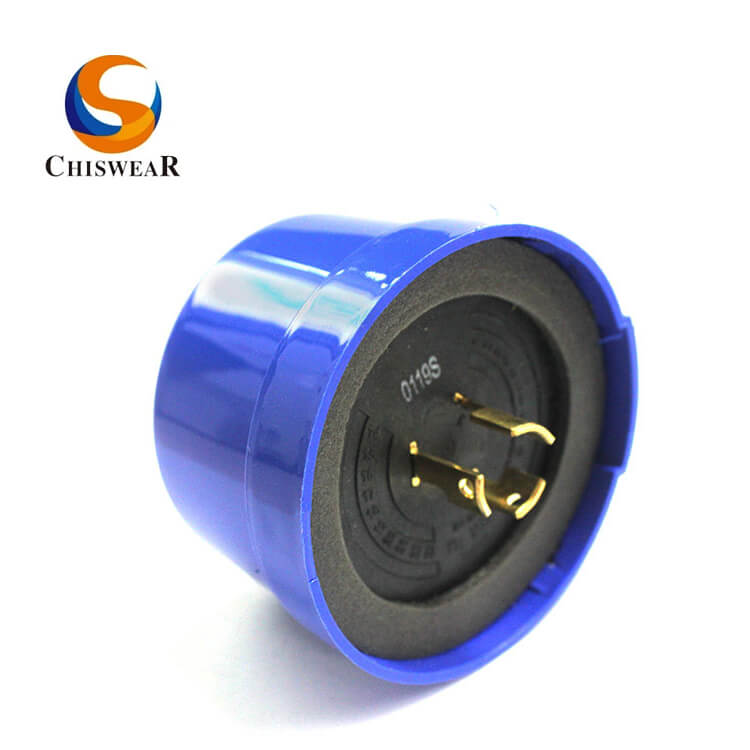

JL-215C Twist Lock Photocell 120-277V

Short Description:

1. Product Model: JL-215C
2. Rated Voltage: 110-277VAC
3. On / OFF Lux Level: 10-20Lx, 30-40Lx
4. IP Rating: IP65, IP67
5. Compliant Standard: CE, ROHS, UL


Product Description

Product Specification

Get Detailed Prices

Product Tags

The photocontroller JL-215 series is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.

Feature

1. Designed with electronic circuits with sensor of photodiode and a surge arrester (MOV) is provided.
2. Time delay of 3-20 seconds offers easy-to-test feature.
3. Model JL-215C provides a wide voltage range for customer applications under almost power supplies.
4. Preset 3-20 seconds time-delay might avoid mis-operation due to spotlight or lightning during the night time.
5. This Product twist lock terminals meeting the requirements of ANSI C136.10-1996 and the Standard for Plug-In, Locking Type Photocontrols for Use with Area Lighting UL773.


  • Previous:
  • Next:

  • Product Model

    JL-215C

    Rated Voltage

    110-277VAC

    Applicable Voltage Range

    105-305VAC

     Rated Frequency

    50/60Hz

    Power Consumption

    0.5W

    Typical Surge Protection

    640 Joule / 40000 Amp

    On/Off Level

    10-20Lx On 30-40Lx Off

    Ambient Temp.

    -40℃ ~ +70℃

    Rated Loading

    1000W Tungsten, 1800VA Ballast

    Related Humidity

    99%

    Overall Size

    84(Dia.) x 66mm

    Weight Approx.

    85 grs
