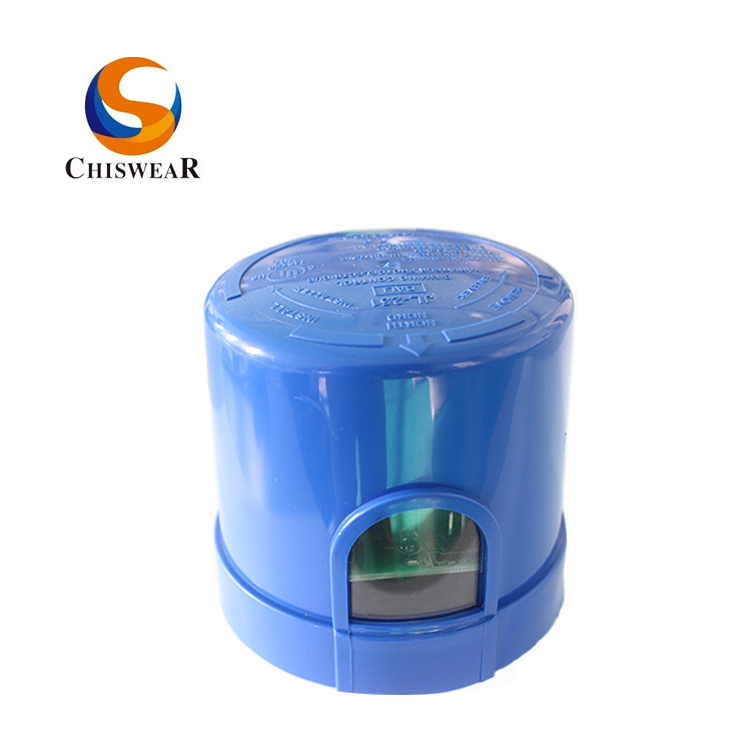

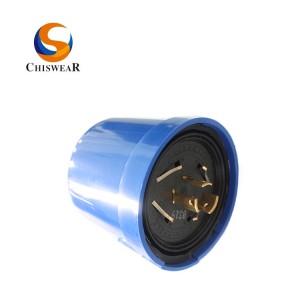

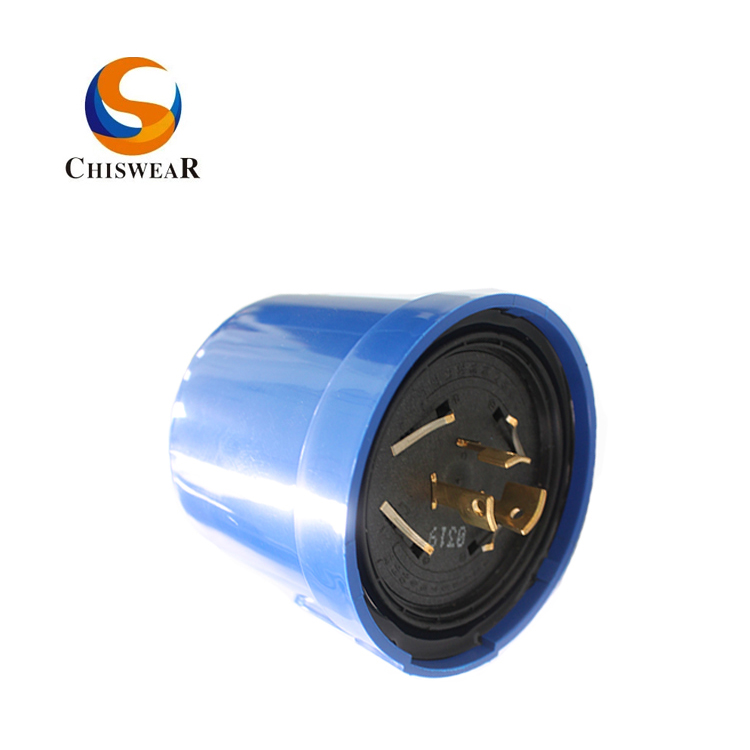

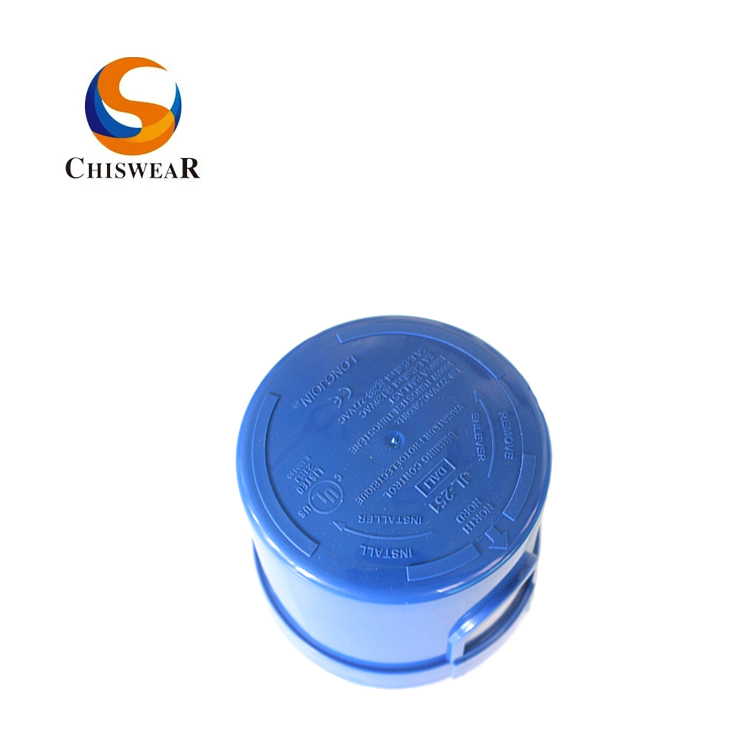

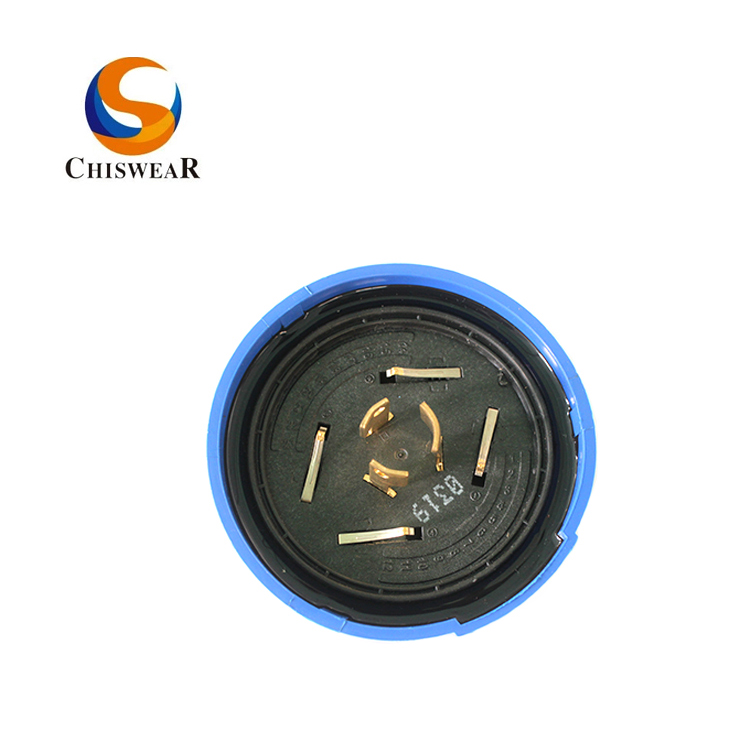

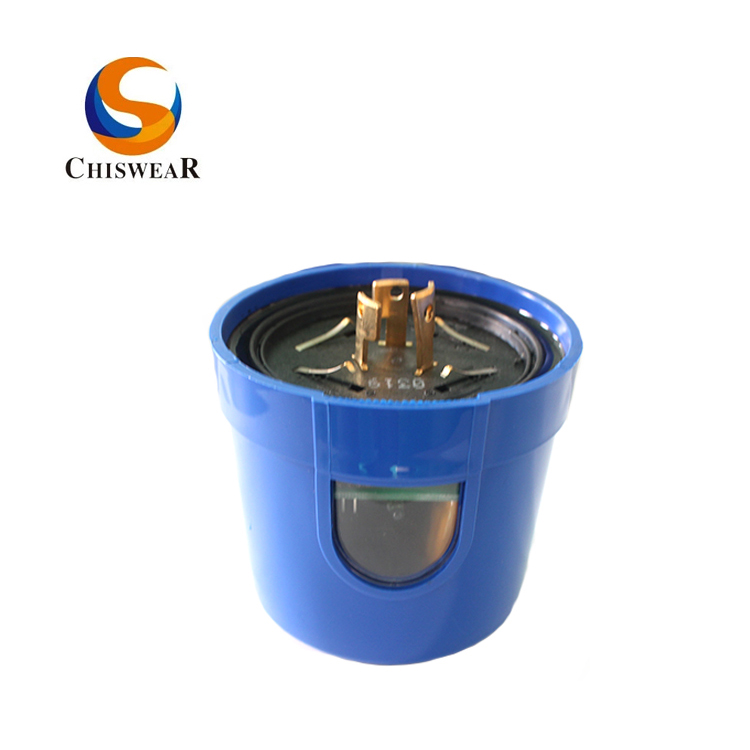

IP65 Waterproof JL-251C NEMA 7 PIN Photocontrol

Short Description:

1. ANSI C136.41-2013 Twist lock

2. DALI Dimming mode

3. Fail on mode

4. 40KA Surge Arrester Built-in


Product Description

Product Specifiction

Get Detailed Prices

Product Tags


  • Previous:
  • Next:

  • Product Model

    JL-251C

    Rated Voltage

    110-277VAC

    Applicable Voltage Range

    90-305VAC

     Rated Frequency

    50/60Hz

    Power Consumption

    1.2W average

    Typical Surge Protection

    640 Joule / 40000 Amp

    On/Off Level

    50lx

    Ambient Temp.

    -40℃ ~ +70℃

    Rated Loading

    1000W Tungsten, 1800VA Ballast

    5A e-Ballast

    Related Humidity

    99%

    Dielectric Strength

    5000Vrms

    Overall Size

    84(Dia.) x 86mm

    Weight Approx.

    200 grs
