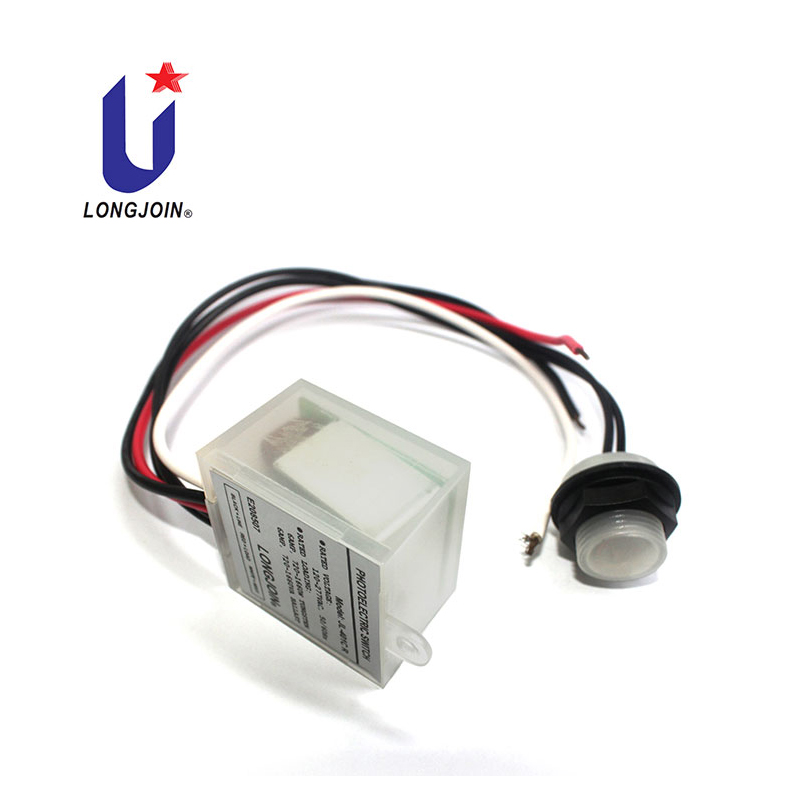

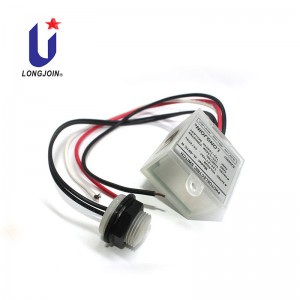

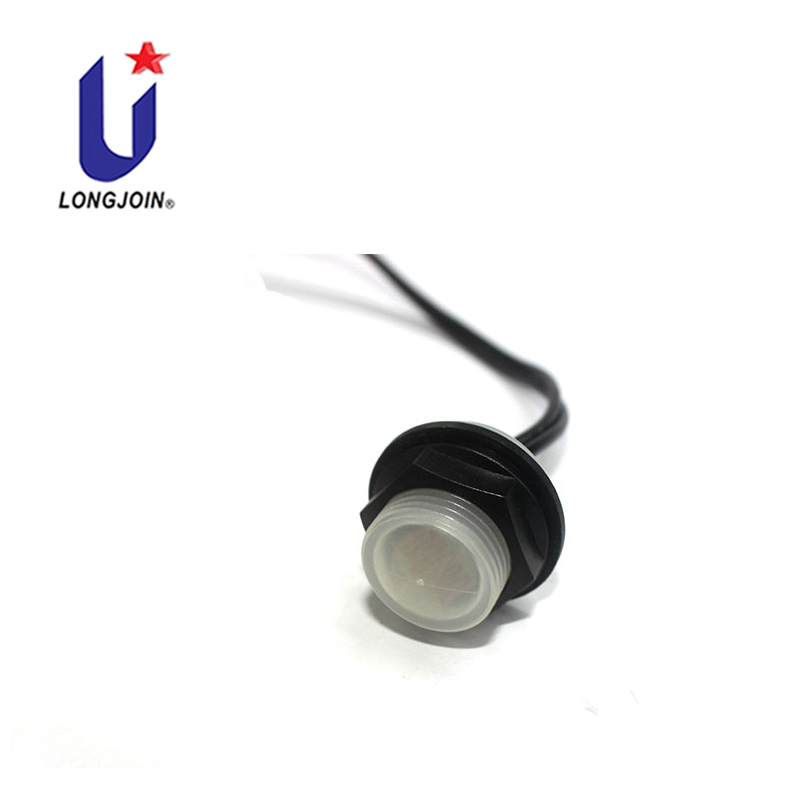

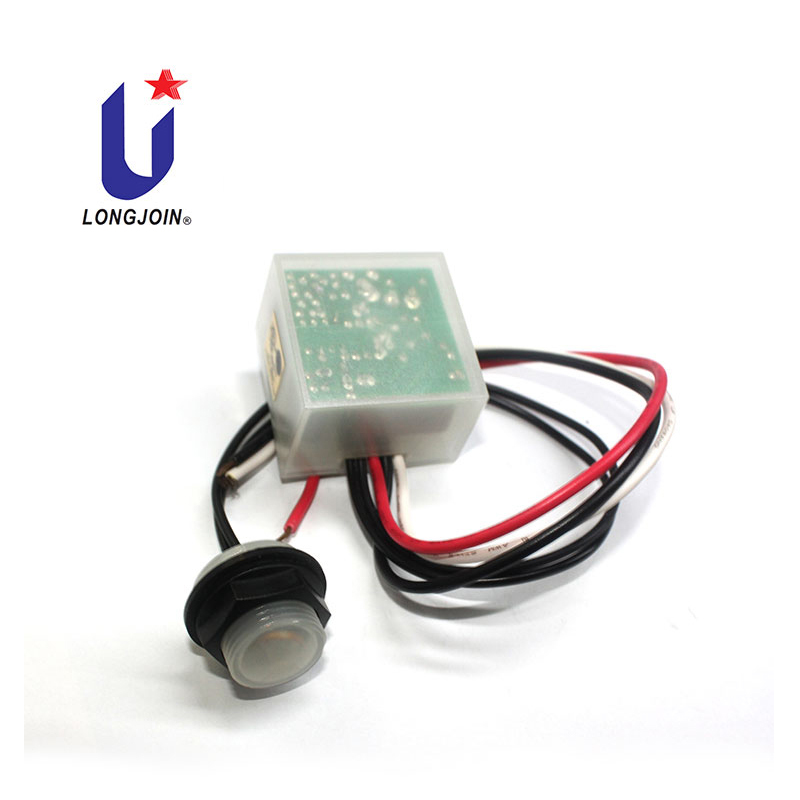

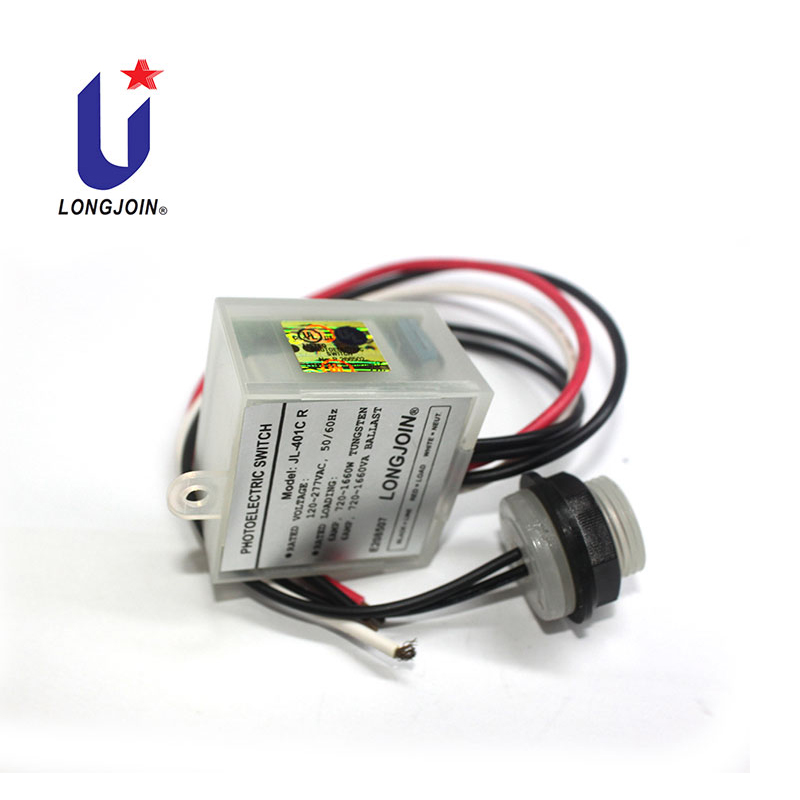

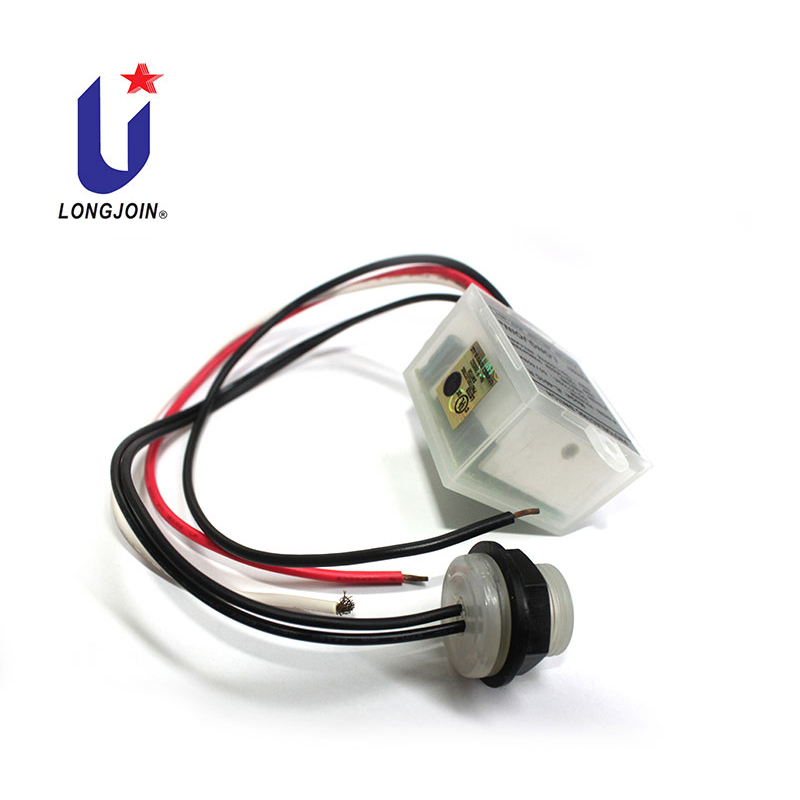

120-277V Split type Head Photocell Sensor JL-401CR

Short Description:

1. Product Model : JL-401CR

2. Rated Voltage : 120-277 VAC

3. On / OFF Lux Level : 10-20 Lx on; 25-35 Lx off

4. IP  Rating : IP54

5. Compliant Standard: CE,ROHS,UL


Product Description

Product Specification

Get Detailed Prices

Product Tags

The photoelectric switch JL-401 is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.

Feature

1. 15-30s time delay.

2. 3 wire in.

3. Avoid mis-operation due to spotlight or lightning during the night time.


  • Previous:
  • Next:

  • Product Model

    JL-401CR

    Rated Voltage

    110-120VAC

    Rated Frequency

    50-60Hz

    Related Humidity

    -40℃-70℃

    Rated Loading

    6AMP max

    Power Consumption

    5W Max

    Operate level

    10-20Lx on, 25-35Lx off

    Overall dimensions(mm)

     45(L)*45(W)*30(H

    Leads lengths

    180mm or customer request
