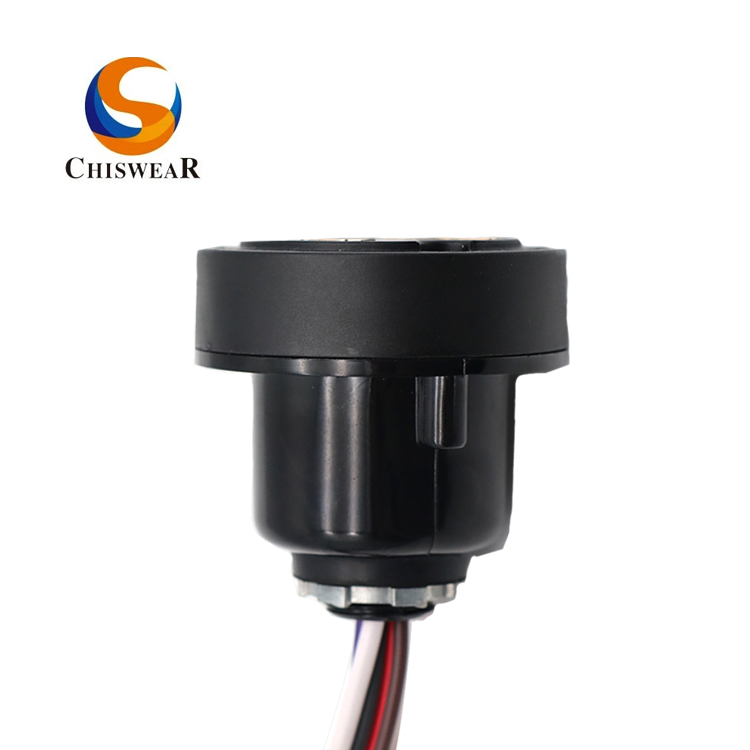

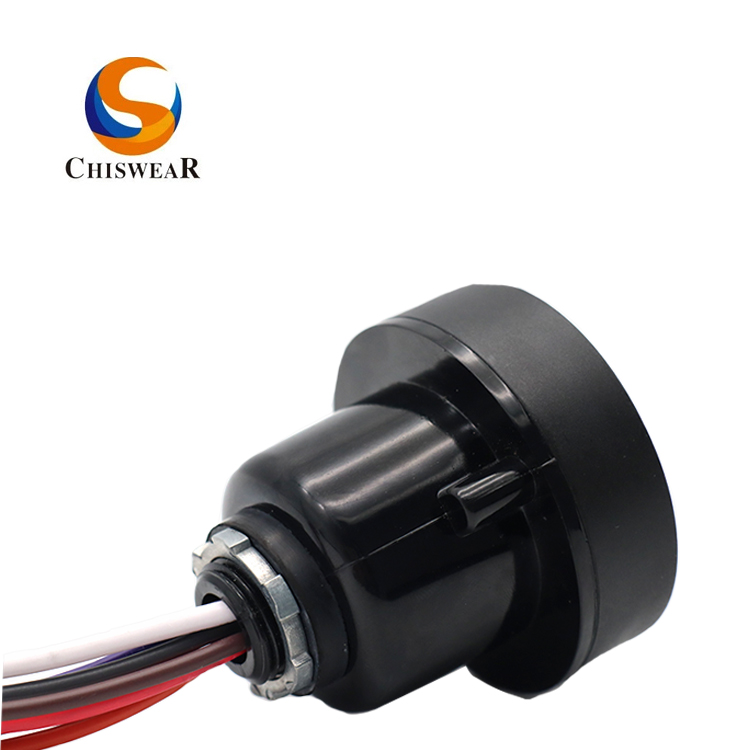

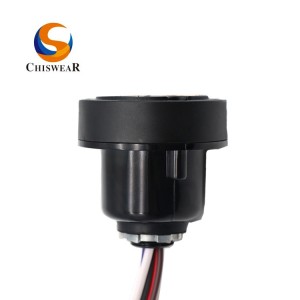

ANSI C136.41 7-receptacle and UL Listed Photocontrol Receptacle JL-240Z-14

Short Description:

1. Product Model: JL-240Z
2. Rated Voltage: 0-480VAC
3. Material: PBT and Add UV Stabilizer
4. Leads Gauge: #14, #16,#18
5. Rear Cover Material: PC
6. Compliant Standard: ANSI C136.41-2006, CE, ROHS, UL


Product Detail

Video

Product Specification

Get Detailed Prices

Product Tags

Feature

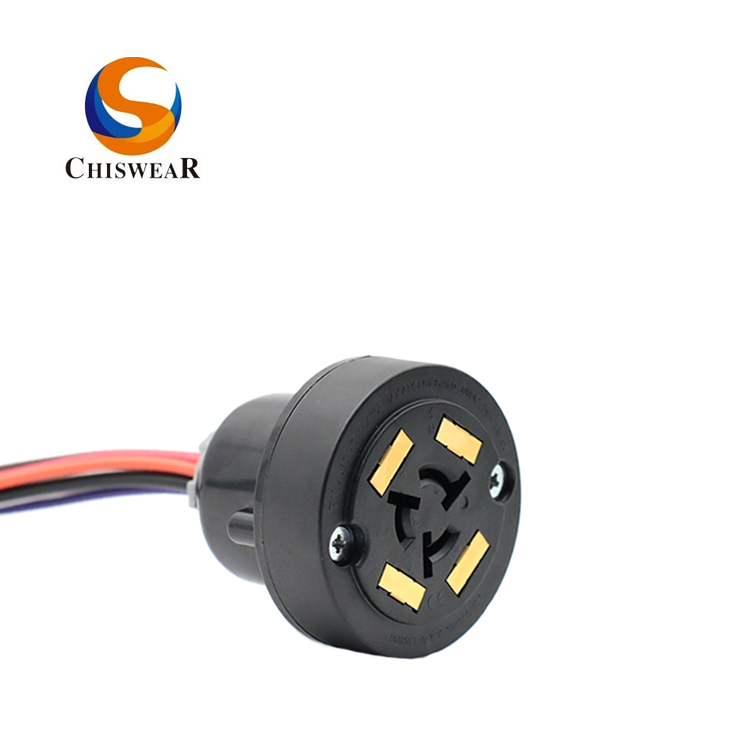

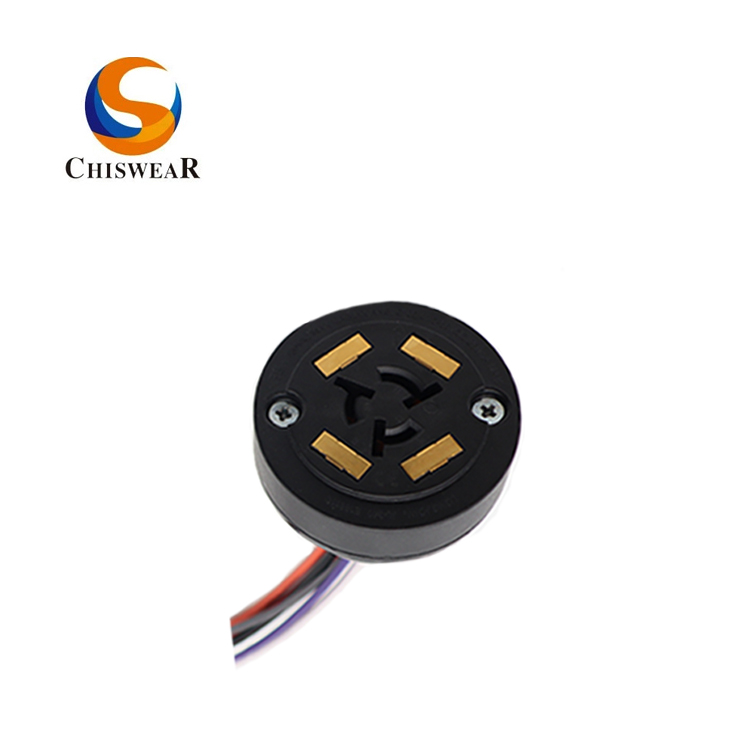

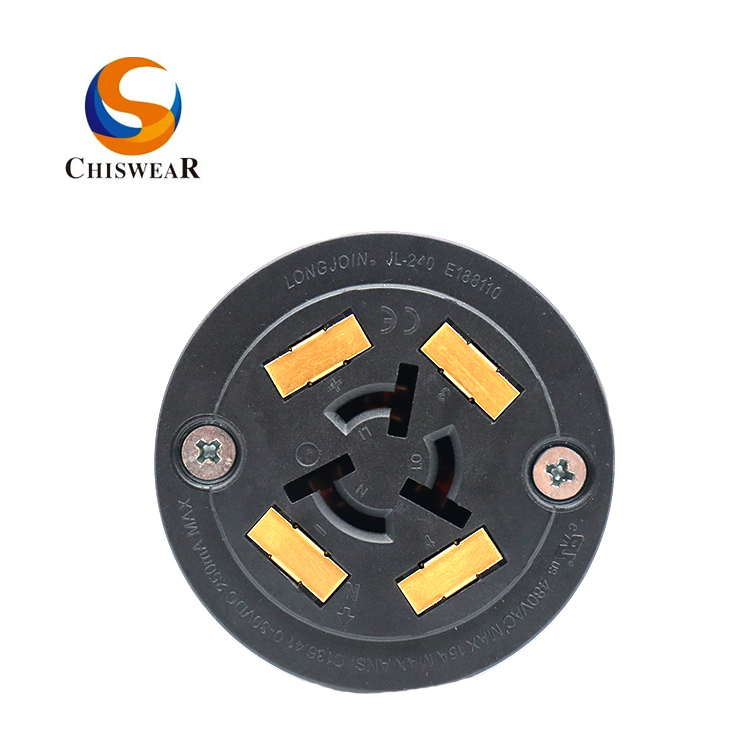

1. JL-240XA offers 4 gold-plated low voltage pads on the top surface to fit photocontrol has ANSI C136.41 conforming spring contacts, and offers male quick connectors at rear back for signal connection.
(JL-240XB offers 2 gold-plated low voltage pads on the top surface to fit photocontrol has ANSI C136.41 conforming spring contacts, and offers male quick connectors at rear back for signal connection)
2. 360 degree rotation limiting feature to conform ANSI C136.10 requirements.
3. Both JL-240X and JL-240Y have been recognized, and JL-200Z14 has been listed by UL to applicable US and Canadian safety standards, under their file E188110, Vol.1 & Vol.2.
4. Other Certificate: CB


  • Previous:
  • Next:

  • Product Model JL-240Z
    Applicable Volt Range 0~480VAC
    Rated Frequency 50/60Hz
    Power Loading AWG#14: 15Amp max. / AWG#16: 10Amp max.
    Optional Signal Loading AWG#18: 30VDC, 0.25Amp max
    Ambient Temperature -40℃ ~ +70℃
    Overall Dimensions (mm) 65Dia.x 67
    Rear Cover R option

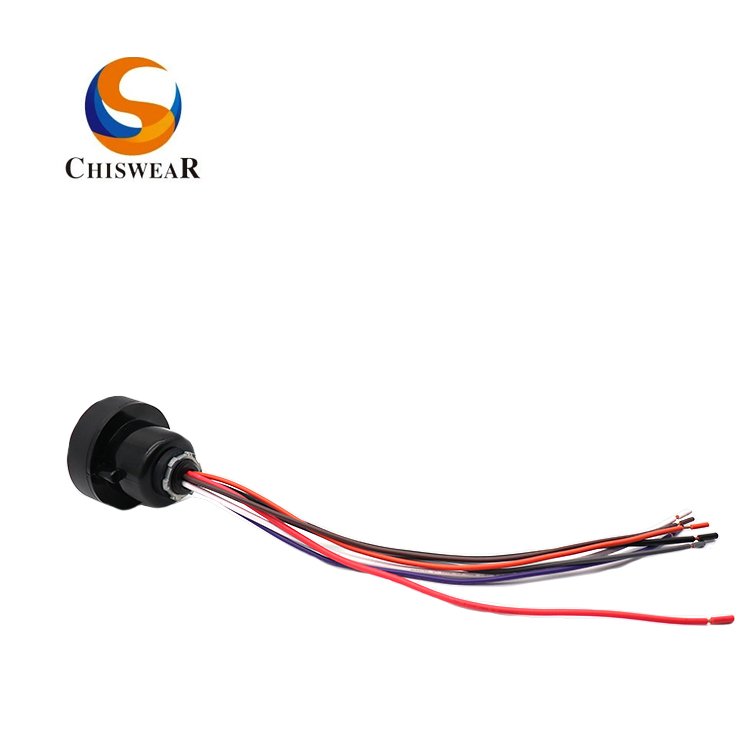

    Leads 6″ Min. (See Ordering Information)
