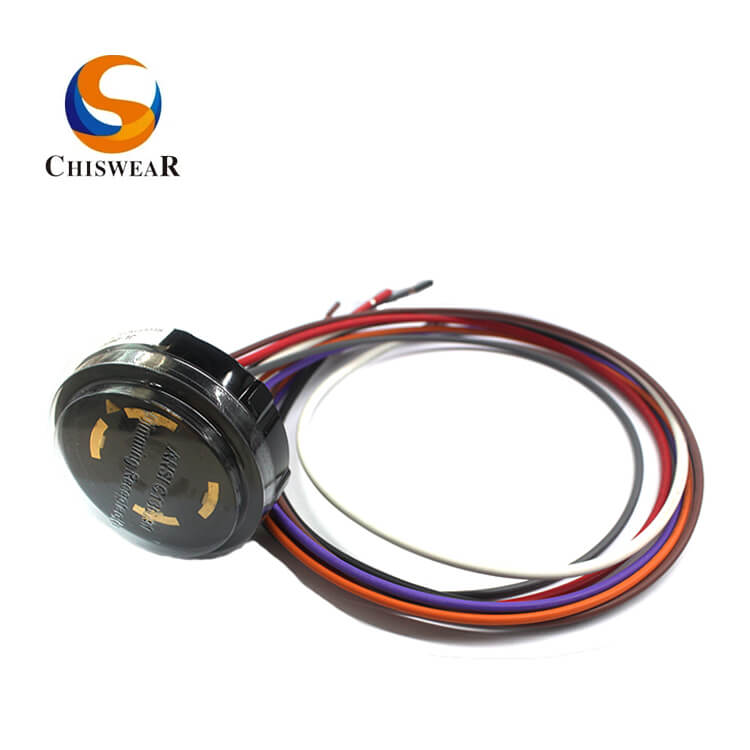

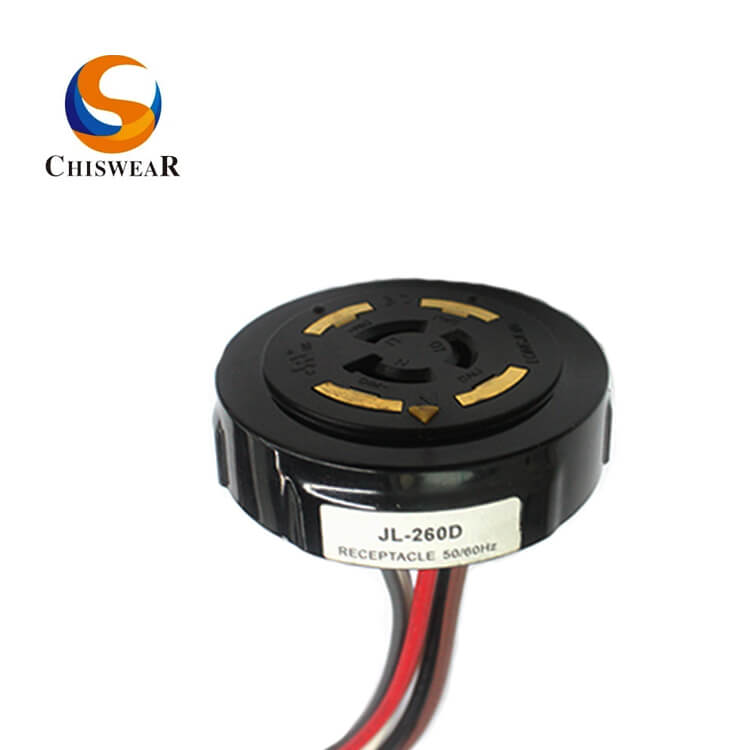

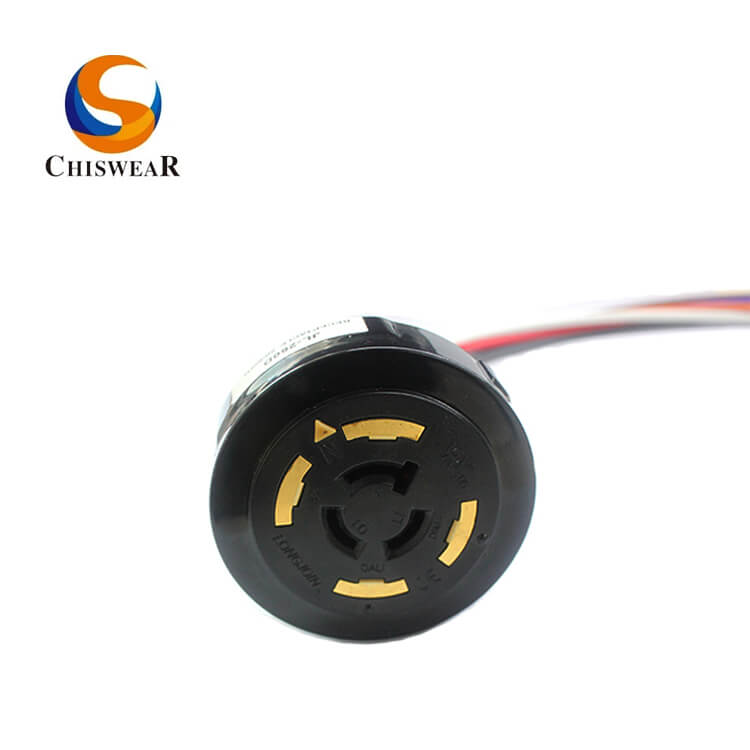

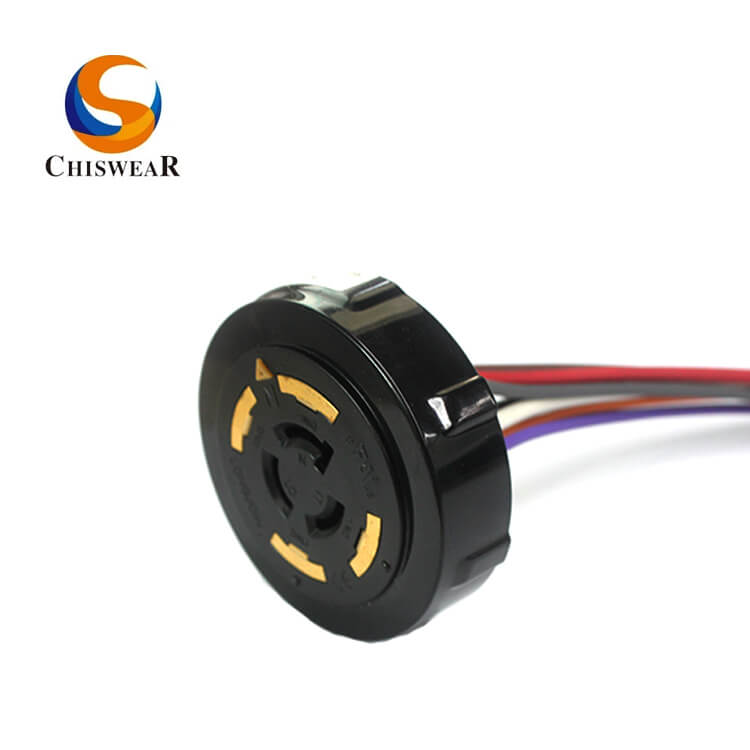

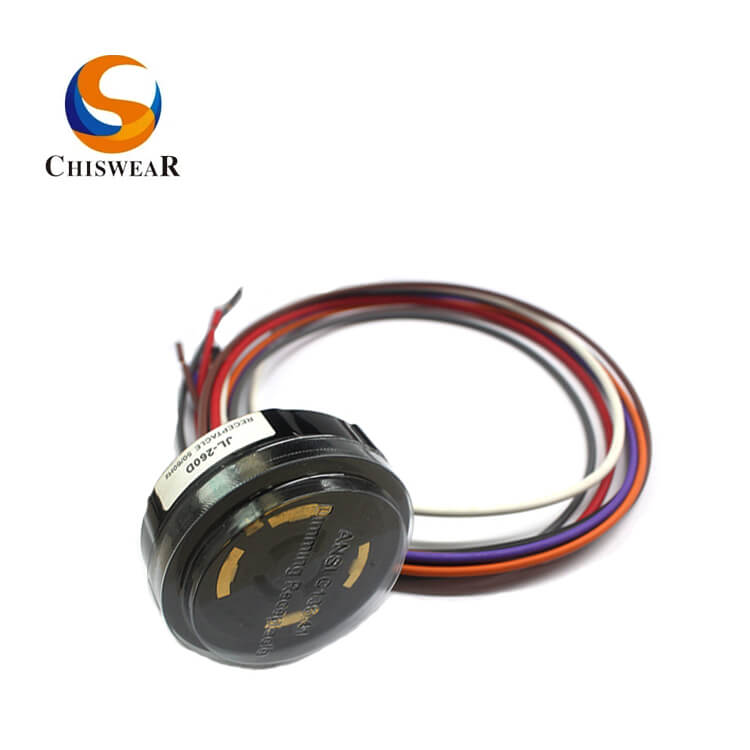

ANSI C136.41 7 PIN Twist Lock Photocontrol Receptacle JL-260D

Short Description:

1. Product Model: JL-260D
2. Rated Voltage: 0-480VAC
3. Flammability Rating: UL94-0
4. Material: PBT Cover and Add UV Stabilizer
5. Compliant Standard: ANSI C136.41, CE, ROHS, UL

Product Description

Product Specification

Get Detailed Prices

Product Tags

1. ANSI C136.41-2013.
3. Internal / External waterproof for fixture.
4. High Lighten North pointer.
5. Patented Floating knob ensures twist-lock prior to orientation.
6. 360°limited orientation range to prevent wire jam.
7. Ergonomic Flange for Rotation.

  • Previous:
  • Next:

  • Product Model


    Outlook Materials

    UL94 V-0 rated UV resistive PC body

    Contacts Materials

    Phosphor Bronze Power contacts

    Internal Materials

    Nickel underplated phosphor bronze pads with Gold plated

    14AWG Leads

    150℃ / 600V rated AWM 3321 leads for power, Supports 15A@480VAC.

    18AWG Leads

    150℃ / 600V rated AWM 3321 leads for signal, Supports 250mA@30VDC.


    Thermal plastic gaskets gathered for waterproof
