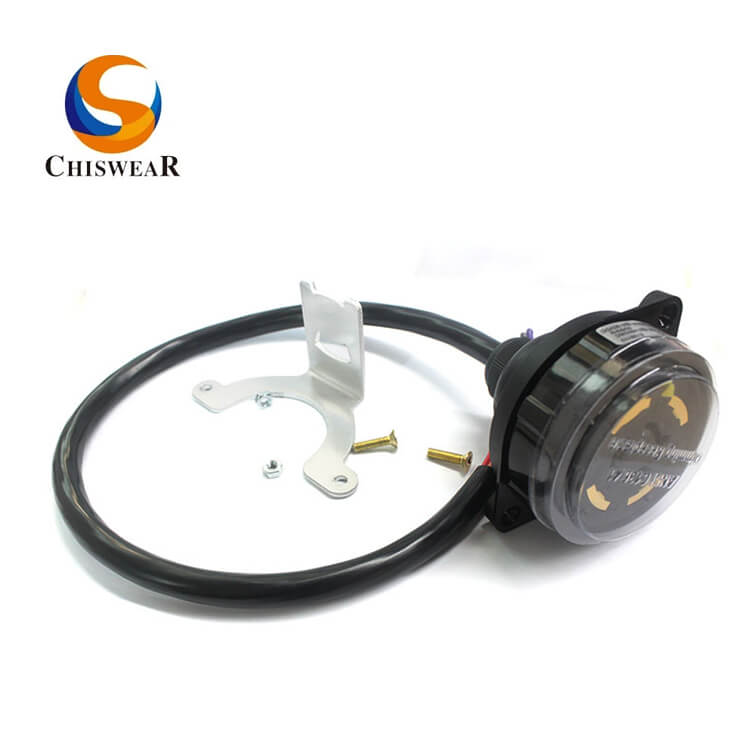

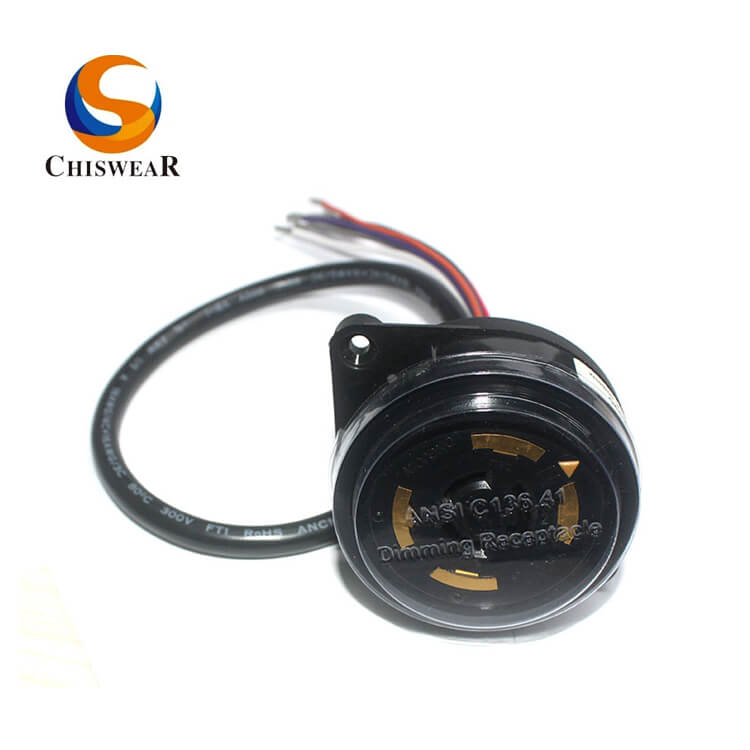

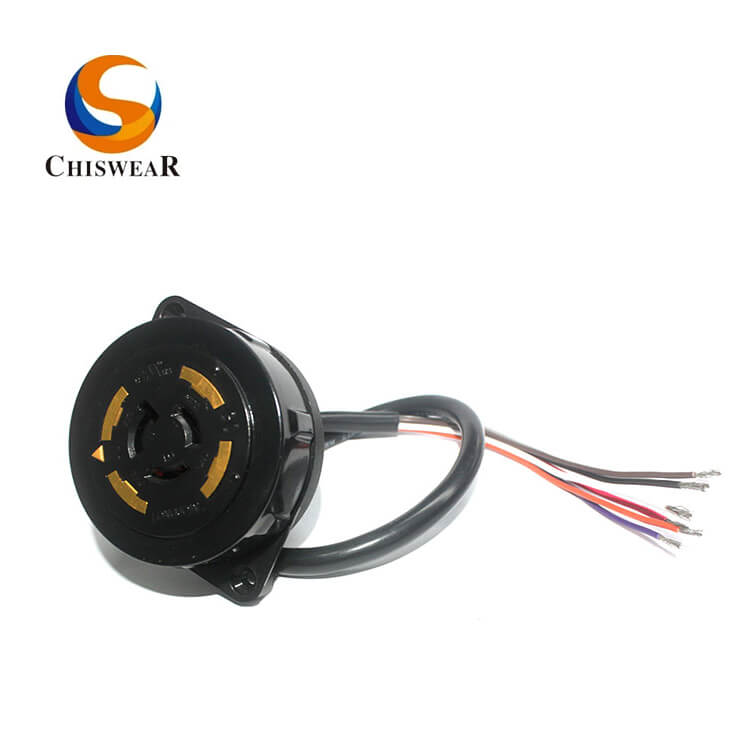

ANSI C136.41 7 PIN Twist Lock Receptacle JL-260C

Short Description:

1. Product Model: JL-260C
2. Rated Voltage: 0-480VAC
3. Flammability Rating: UL94-0
4. Material: PBT Cover and Add UV Stabilizer
5. Compliant Standard: ANSI C136.41, CE, ROHS, UL


Product Description

Product Specification

Get Detailed Prices

Product Tags

Feature
1. ANSIC 136.41-2013
2. 2.UL / CUL CE ROHS
3. Internal / External waterproof for fixture.
4. High Lighten North pointer.
5. 360°limited orientation range to prevent wire jam.
6. Patented Floating knob ensures twist-lock prior to orientation.

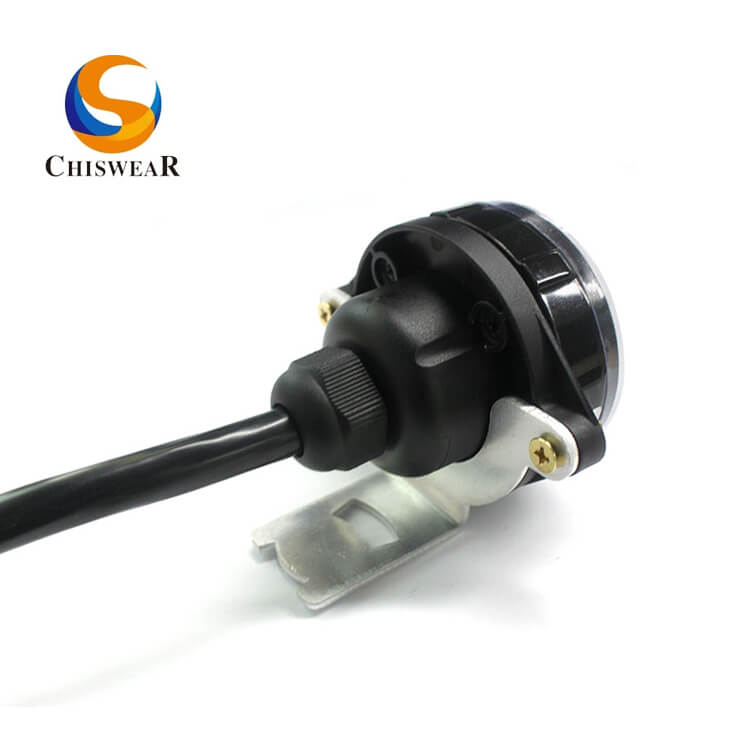

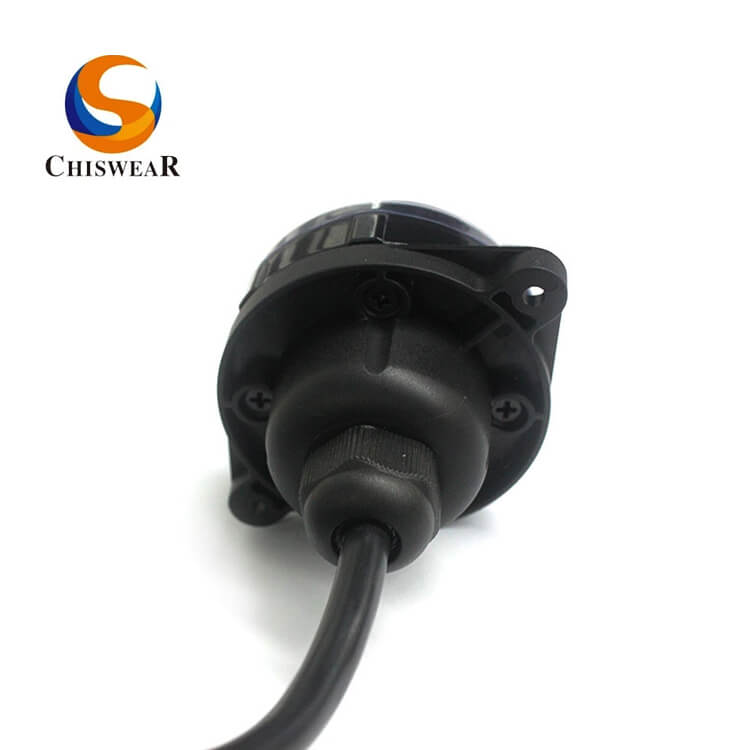

7. Externally forced waterproof rear cover supports suspension mounting (patent).


  • Previous:
  • Next:

  • Product Model

    JL-260C

    Outlook Materials

    UL94V-0 rated UV resistive PC body, PBT rear cover, TPE self-lubricating seal

    Contacts Materials

    Phosphor Bronze Power contacts.

    Internal Materials

    Nickel underplated phosphor bronze pads with Gold plated

    14AWG Leads

    150℃ / 600V rated AWM 3321 leads for power,Supports 15A@ 480VAC.

    18AWG Leads

    600V rated AWM 3321 leads for signal, Supports 250m A@ 30VDC
