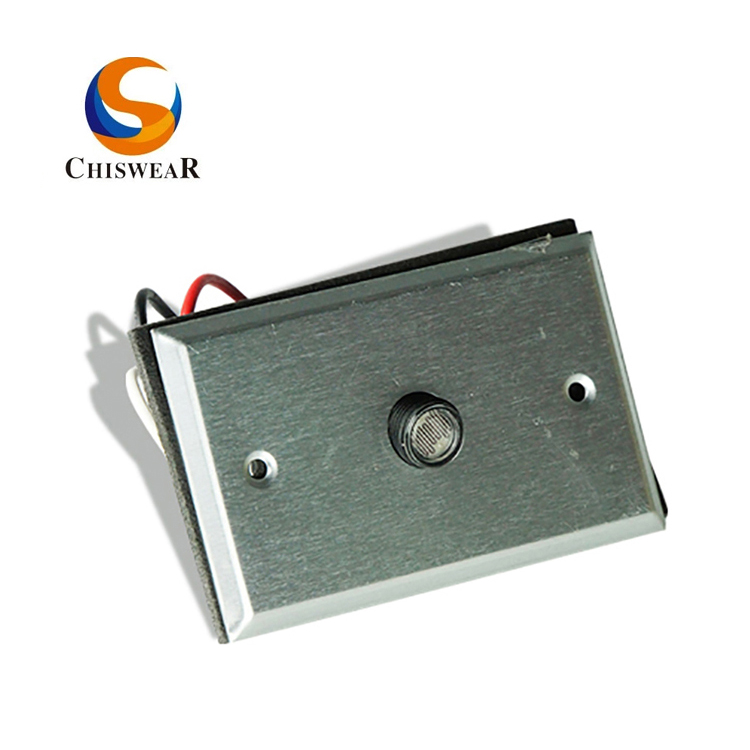

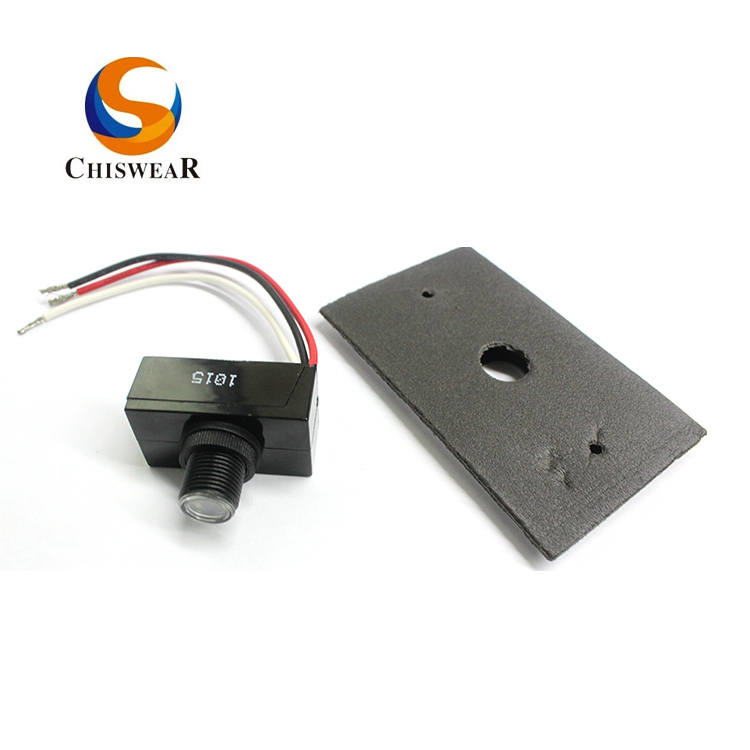

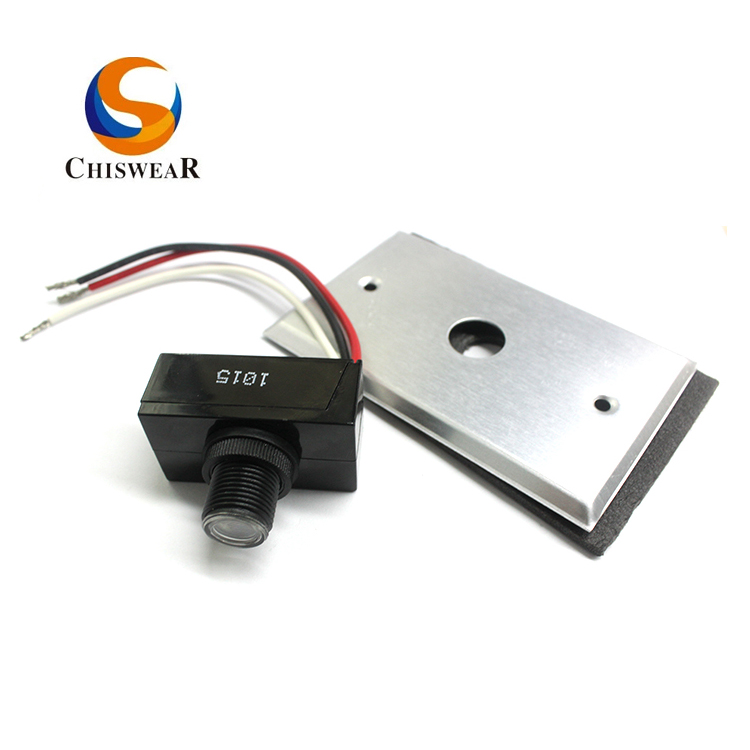

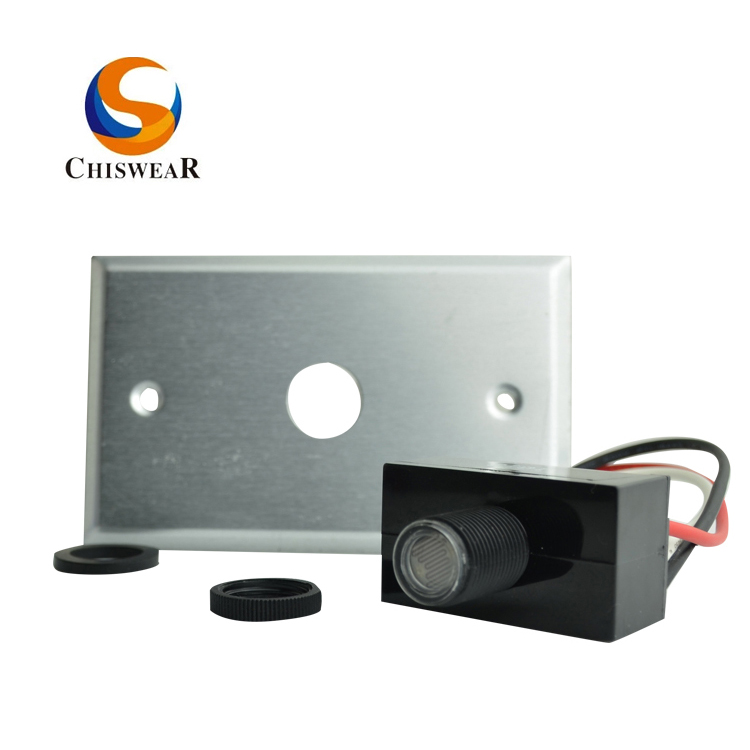

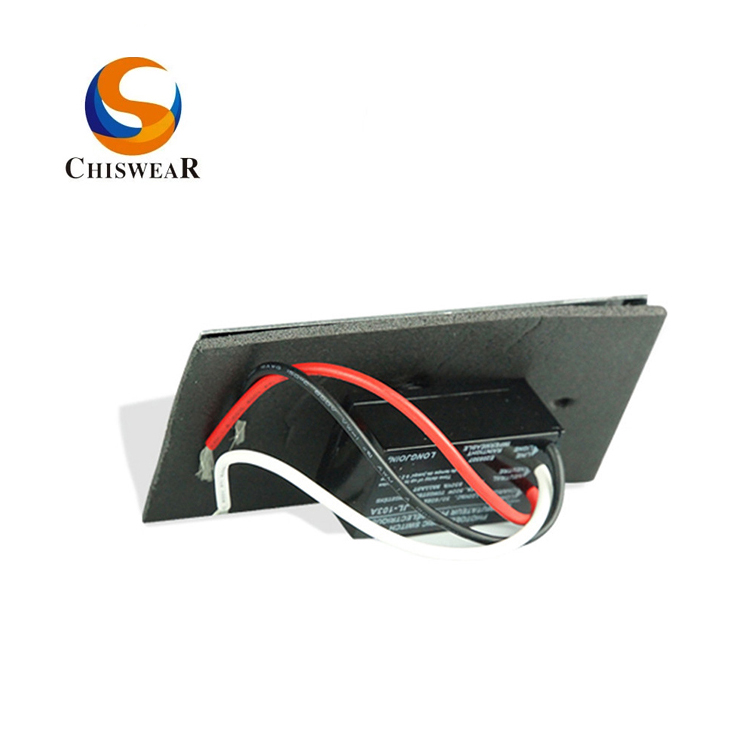

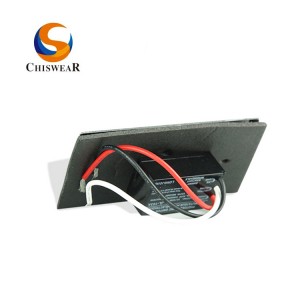

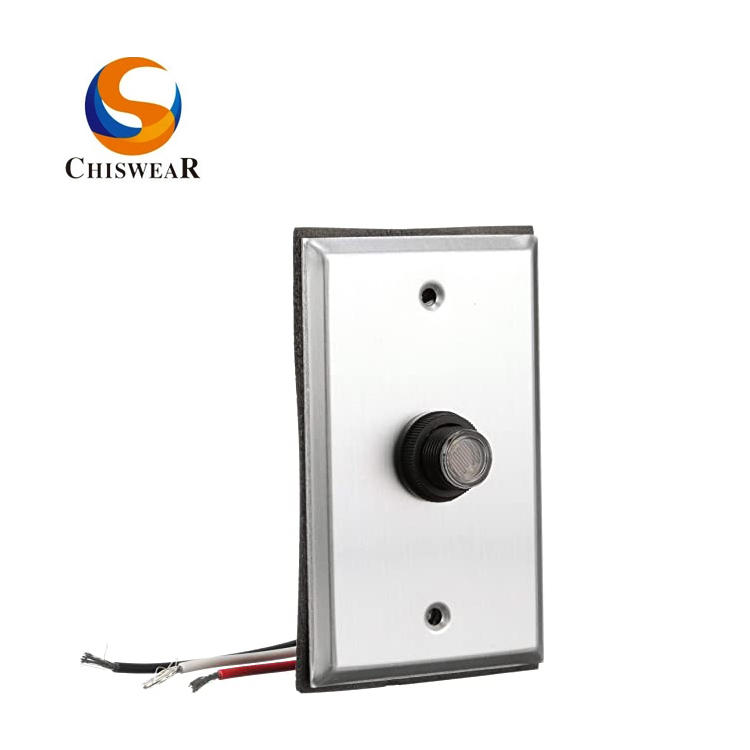

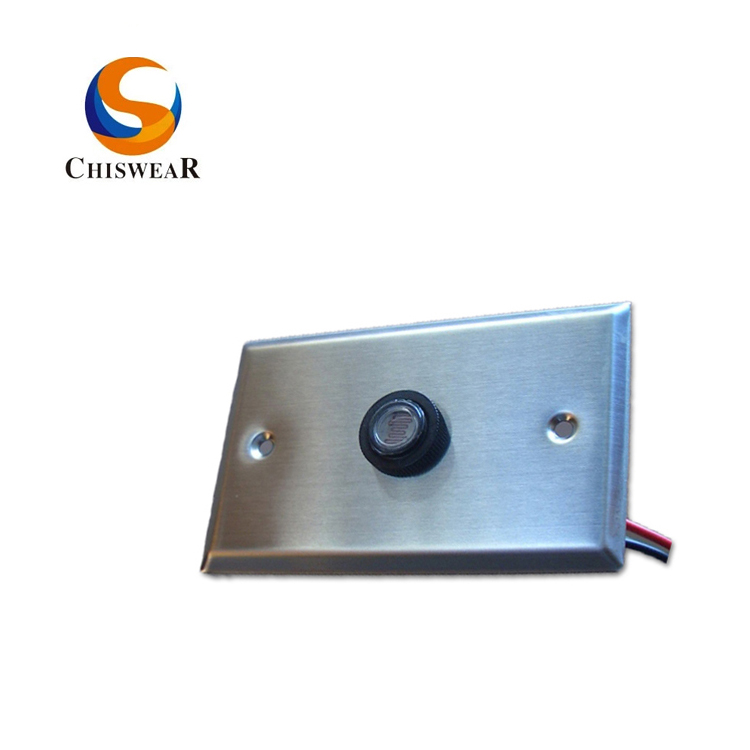

Hardwired Button Photo Control and Option Available Aluminium Plate Kits

Short Description:

1. Product Model: JL-103AW
2. Rated Voltage: 120 VAC
3. On / OFF Lux Level: 10-20 Lx on; 30-60 Lx off
4. IP Rating: IP54
5. Optional Accessories: Aluminium Plate
6. Compliant Standard: CE, ROHS, UL


Product Description

Product Specification

Get Detailed Prices

Product Tags

The photoelectric switch JL-103Series is applicable to control the street lighting, garden lighting, passage lighting and barn lighting automatically in accordance with the ambient natural lighting level.

Feature
1. Convenient and easy to install.
2. Standard Accessories: aluminum wall plated, waterproof  cap(Optional )
3. Wire gauge Classifications:
1) standard wire: 105℃.
2) High temperature wire : 150℃.


  • Previous:
  • Next:

  • Product Model

    JL-103AW

    Rated Voltage

    120VAC

    Rated Frequency

    50-60Hz

    Rated Loading

    500W tungsten 850VA Ballast

    Available Support Custom 1500-2000W

    Related Humidity

    -40℃-70℃

    Power Consumption

    1.2VA

    Operate level

    10-20Lx on, 30-60Lx off

    Wire gauge

    #18,#16

    Body Meas(mm)

    52.5(L)*29.5(W)*42(H)

    Lead lengths

    180mm or Customer request;











    Leads Classification

    Null=105℃

    G=150℃
