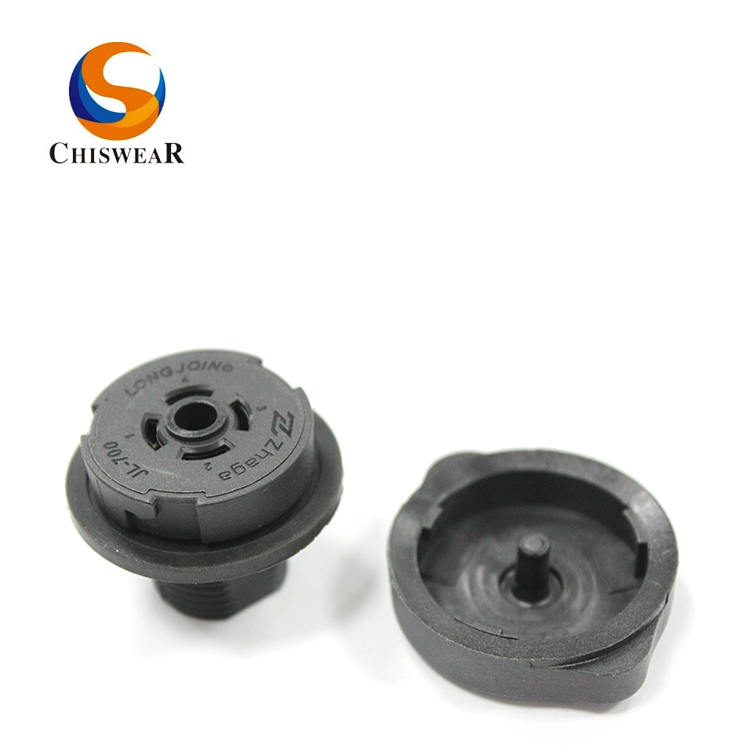

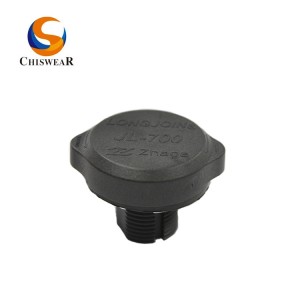

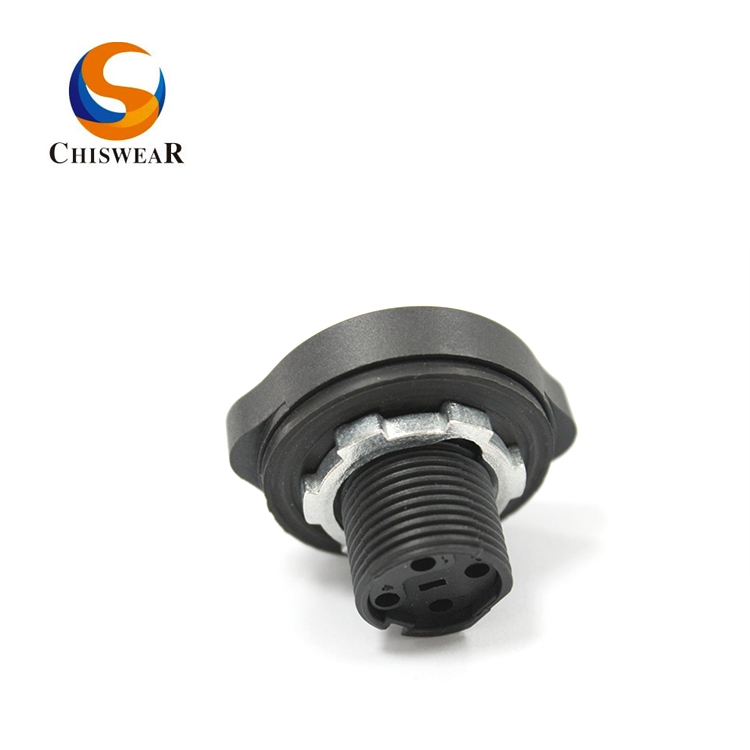

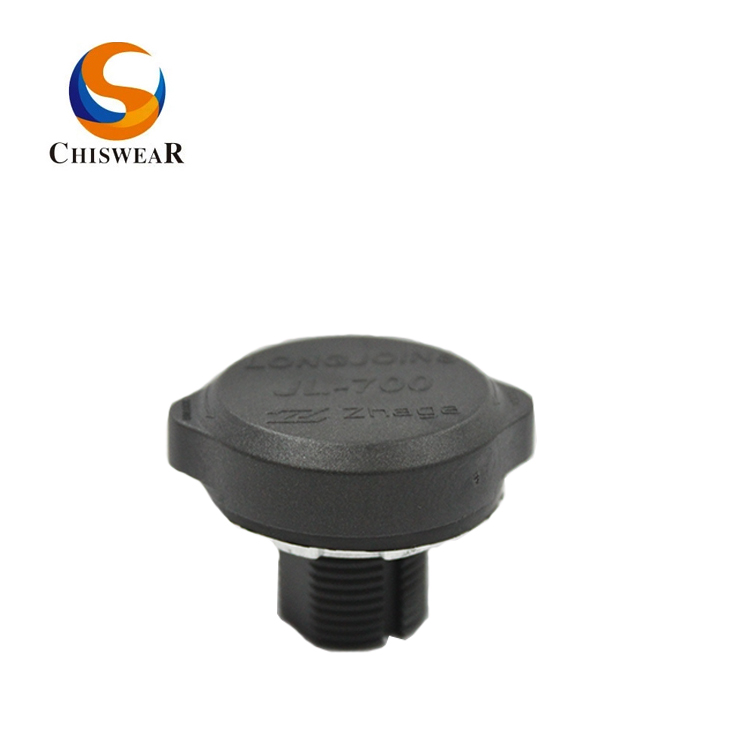

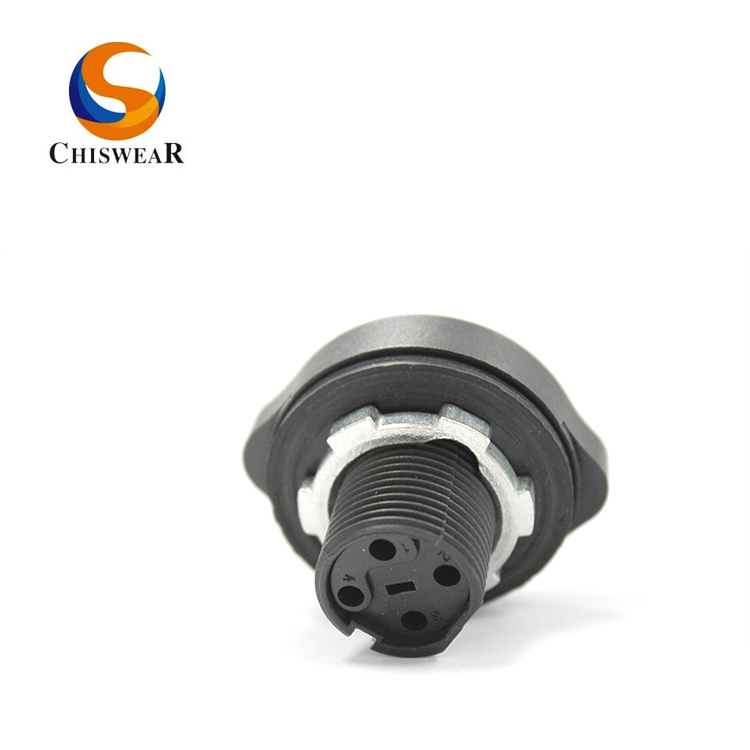

JL-700W Zhaga Book 18 Zhaga Connector from Brand OEM/ODM Manufacturer Longjoin

Short Description:

1. Product Model: JL-700W
2. Material: PBT and Add UV Stabilizer
3. Leads Gauge: optional customize
4.Rated impulse Voltage: 0.8kv


Product Description

Zhaga Video

Product Specification

Get Detailed Prices

Product Tags

The ZHAGA series products, including JL-700 receptacle and accessories, to offer a ZHAGA Book 18 regulated interface for easier way t o develop standard devices used for roadway lighting , area lighting, or occupancy lighting, etc.These devices can be offered in DALI 2.0 protocol (Pin 2-3) or 0-10V dimming (per request) features, based on fixture arrangement.

1.Standardized interface defined in Zhaga Book 18.
2.Compact size allowing greater fexibility in luminaire design.
3.Advanced sealing to achieve IP66 with no mounting screws.
4.Scalable solution allows use of Ø40mm photocell and a Ø80mm central management system with the same connection interface.
5.Flexible mounting position, upwards, downwards and sideways facing.
6.Integrated single gasket that seals to both luminaire and module that minimizes assembly time.
7.Leads wires, available to customize your need. and, will make it contain ends tinned of wire terminal.


  • Previous:
  • Next:

  • Product Model

    JL-700W

    Rated Humidity

    96%

    Ambient Temperate

    -40-70℃

    Contact Type

    4 pole contacts

    Rated Impact Voltage

    0.8KV

    Pollution Degree

    2

    Interface performance

    hot pluggable capable

    Leads length

    none / available to be customized wire gauge and its length.
