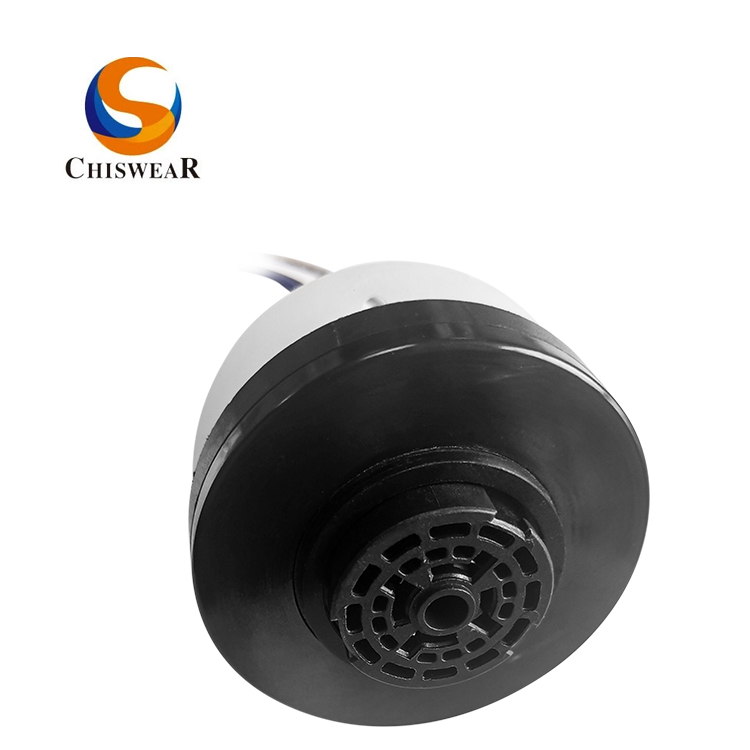

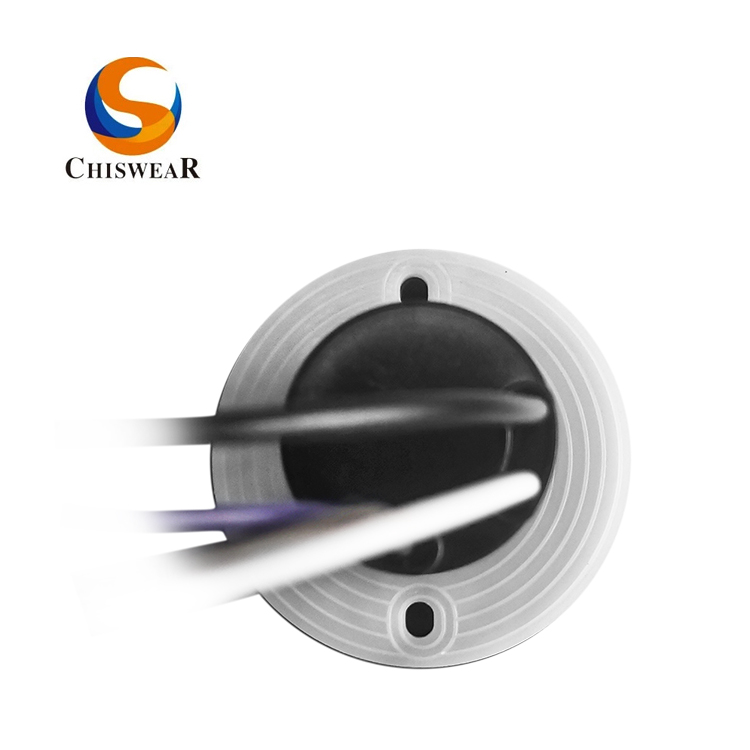

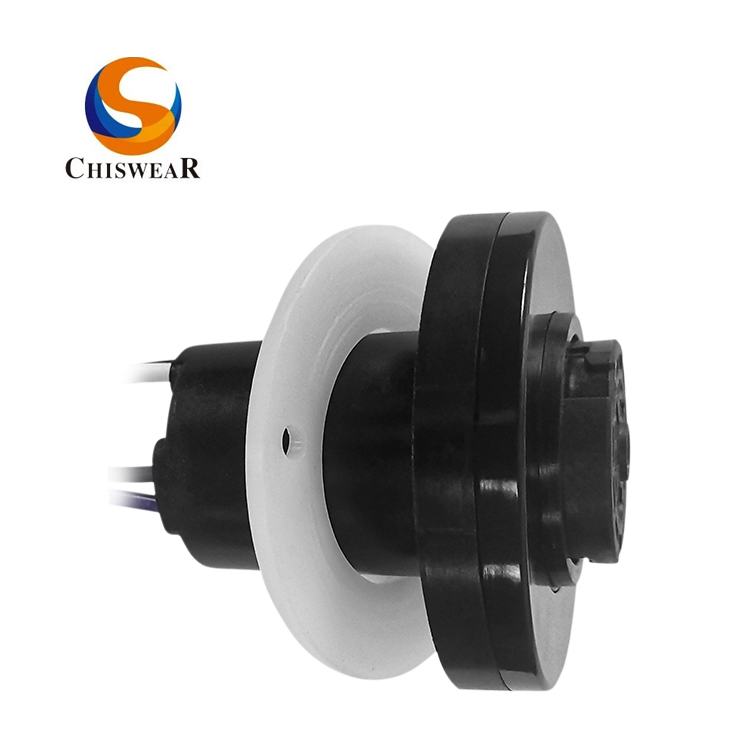

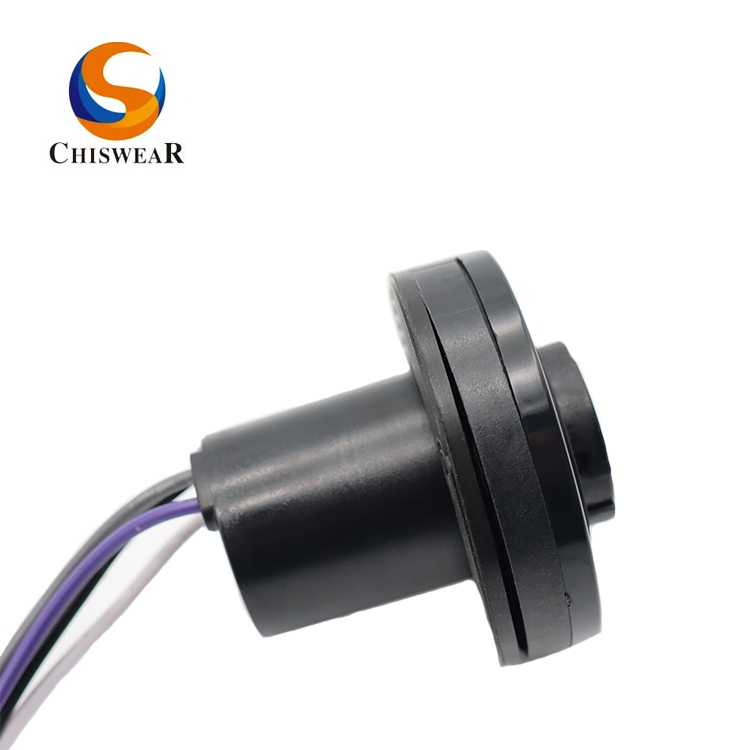

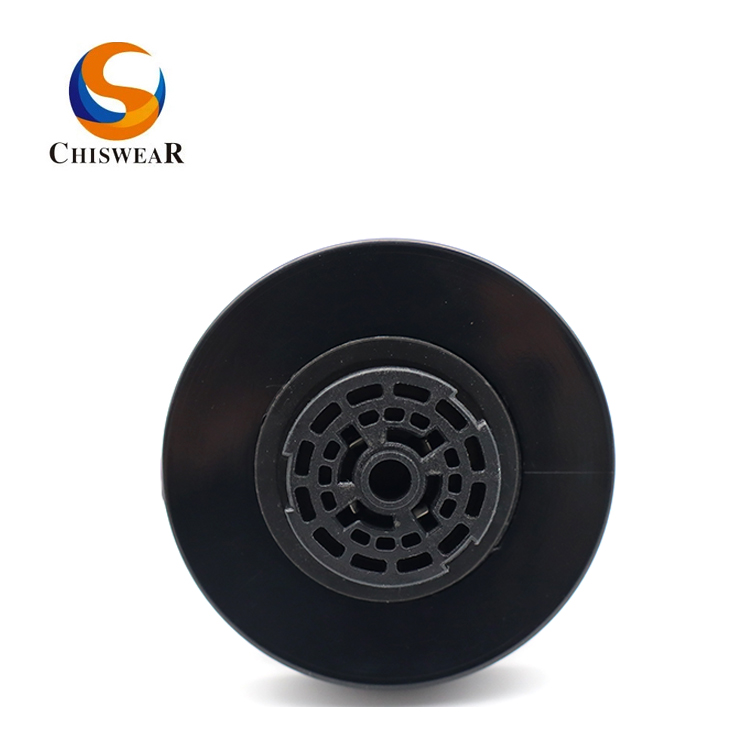

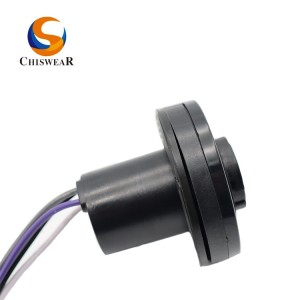

JL-710 Zhaga Socket Output DC 24V Fit to 7X Series Light Controller

Short Description:

1. Product Model: JL-710

2. Dimming Output:0-10V

3. Rated input voltage range:100-277VAC

4. Output voltage: 24VDC

5. Certificate:  CE,UL,zhaga book18

6. Body Material: PBT




Product Description

Product Specification

Size Diagram

Product Tags

This is Certificated zhaga book 18 JL-710 receptacles, it can help you to solve problem about AC switching DC. In other word, to reduce fit auxiliary power equipment cost, to best install 0-10V zhaga controller and get steady working.

Feature

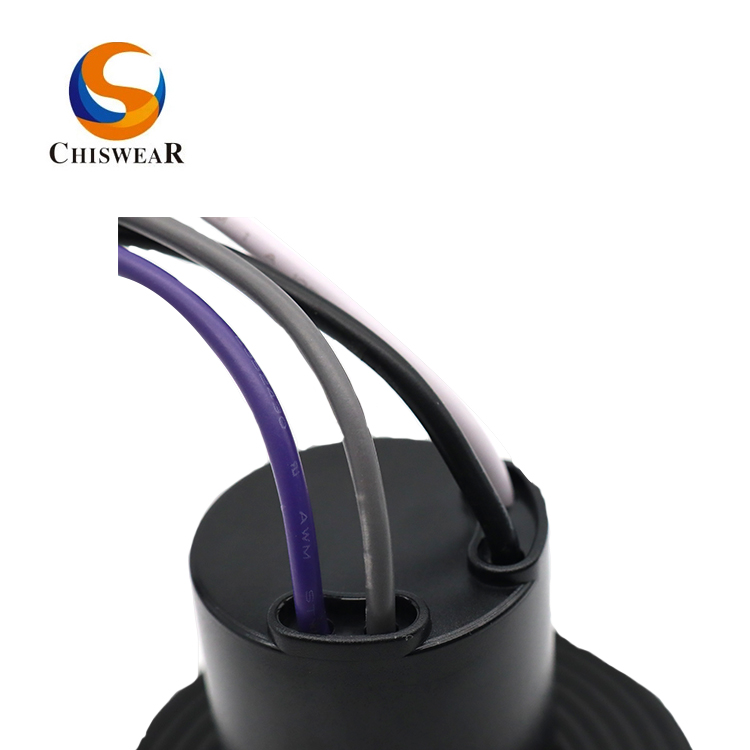

1.wires, you can customized length.

2.wires gauge: power #18AWG, signal gauge #20AWG.

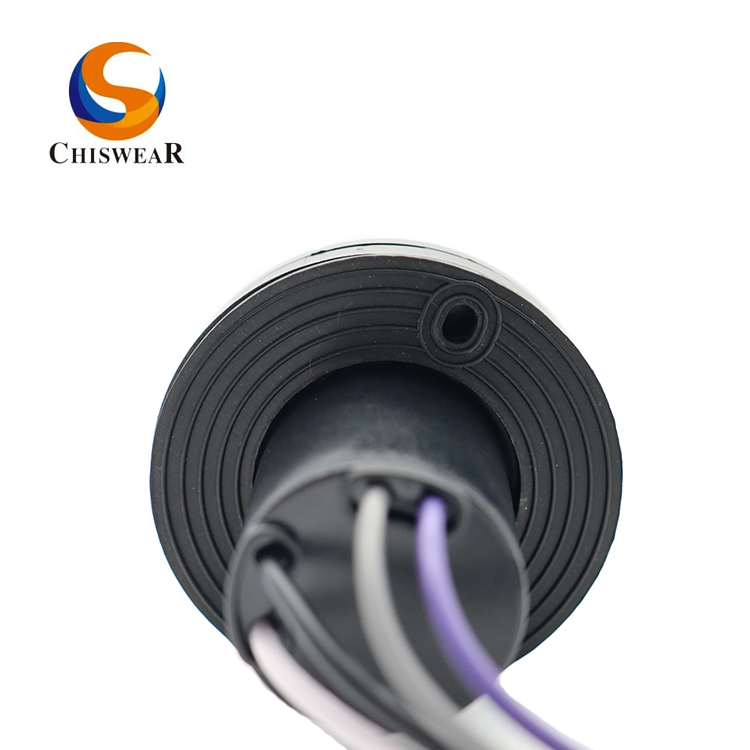

3. waterproof washer.

4. po <0.12w

5.Input Rated Voltage Range(Max): 85-305VAC

6.Output DC Voltage: 12-24V




  • Previous:
  • Next:

  • Model JL-710

    Zhaga Input Parameter

    Rated voltage range 100-277VAC
    Rated Voltage Range(Max) 85-305VAC
    Maximum steady-state input AC current 30mA (under 220VAC)
    I2t 0.009A2s (under 220VAC)
    Conversion efficiency 80%(under 220VAC)
    Zhaga Output Parameter
    Output voltage 12-24V DC
    Stable voltage adjust precision +/-2%
    Rated current 0.21A
    Rated power 5W
    Noise 150 mVp-p
    Ripple 100 mVp-p
    Linear adjustment rate +/-0.12%
    Load adjustment rate +/-5%
    Po <0.12W

    Other Parameter

    Mufti-protection Short protection, Over-current (overload) protection, Over-voltage protection,Open circuit protection
    Certificate CE,RoHS, UL/CUL
    Flammability Level UL94-V0
    Mechanical Vibration IEC61000-3-2
    Operating Temperature -40°C~55°C
    Operating Humidity 5%RH~99%RH
    Use lifespan >=80000h
    IP rating IP66 (under connected zhaga controller)
    Weight Approx 85g

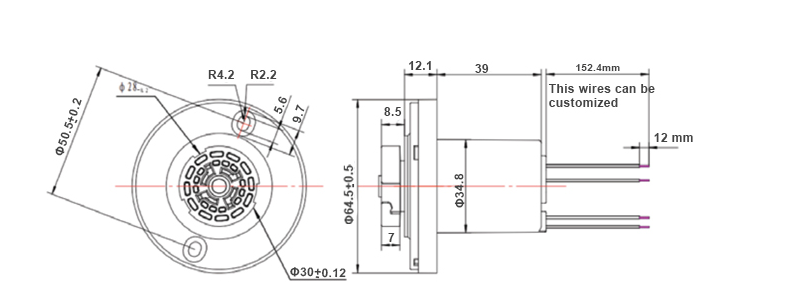

    JL-710 zhaga sizes

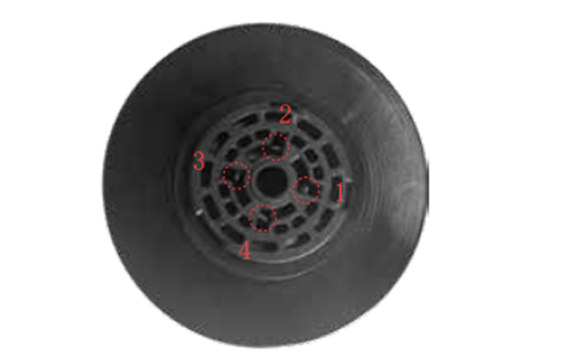

    JL-710 connect wiring

    JL-710 structure diagram

    4 Pin-710

    Tips: to interlocking our zhaga series controller, in order to reduce load aid  power equipment for dimming driver.

    Item

    Definition

    Type

    1

    24 VDC

    power output

    2

    GND

    power output

    3

    NC

    -

    4

    DIM+ (0-10+)

    Signal intput
